Integrated Signal Generator and Oscilloscope
• When replacing the fuse, please use the same size and type of fuse.
• DO NOT connect VEGO to a circuit that may potentially exceed the
maximum measured values
• DO NOT measured voltage when the Dash Panel Knob is in position
'D', 'E', 'G', 'H'
• DO NOT use the device when batteries are not properly installed
• DO NOT replace batteries or fuse when the device is still ON. TURN
OFF the device by setting the Dash Panel Knob to position 'A'
Appendix C: Integrated Signal Generator and Oscilloscope (Zoolark)
Zoolark is a pocket-size electronics circuit testing and debugging
tool which integrated features of a function generator, two channel
oscilloscope, a fast digital I/O for PWM tuning and a high accuracy DC
reference output. A 240*240 full color 1.54-inch LCD allows measurement
results and testing information clearly displayed. The device is powered by
a 280mAh rechargeable lithium polymer battery supporting over 2 hours
standby time.

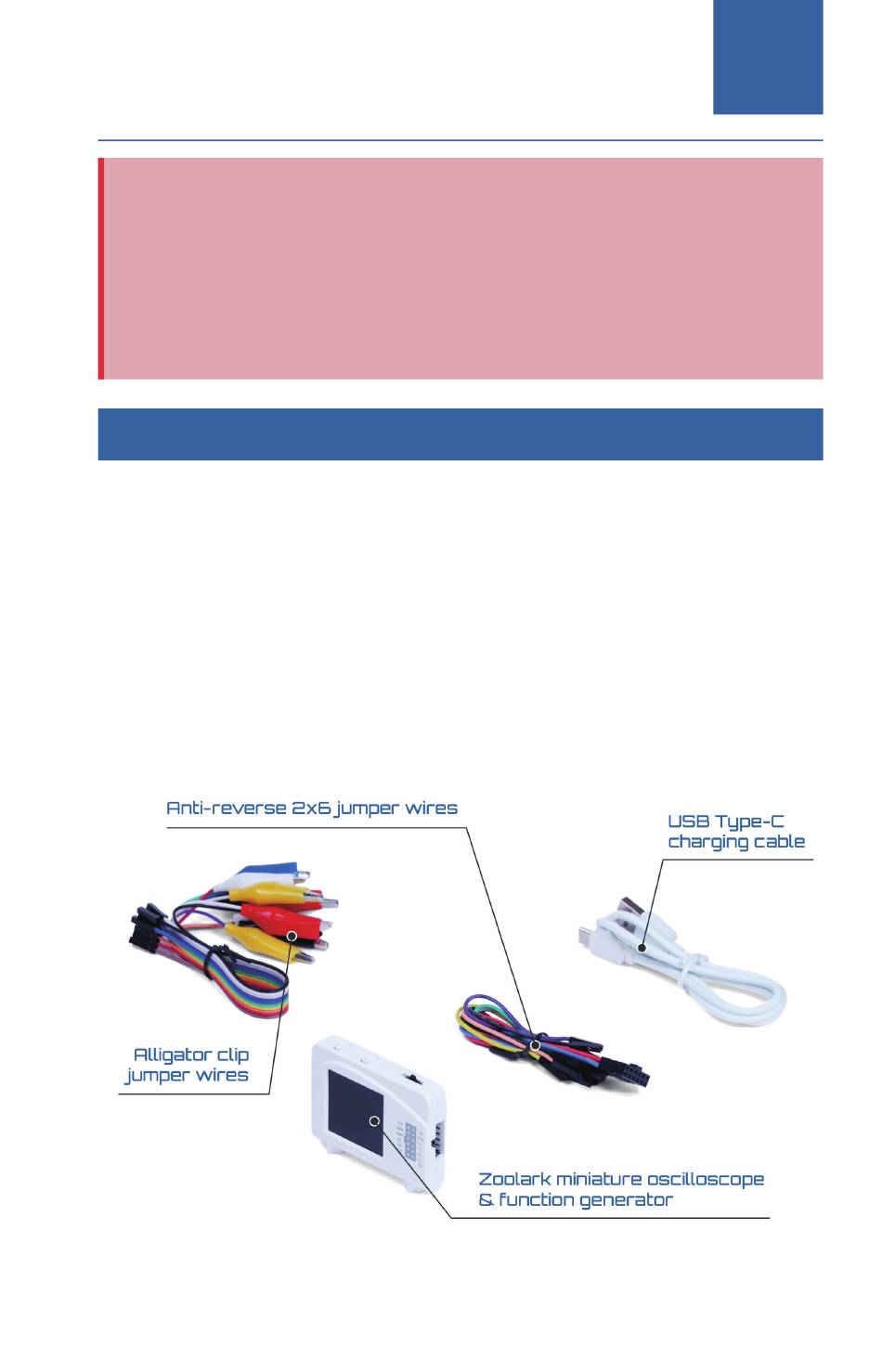

Material Checklist
