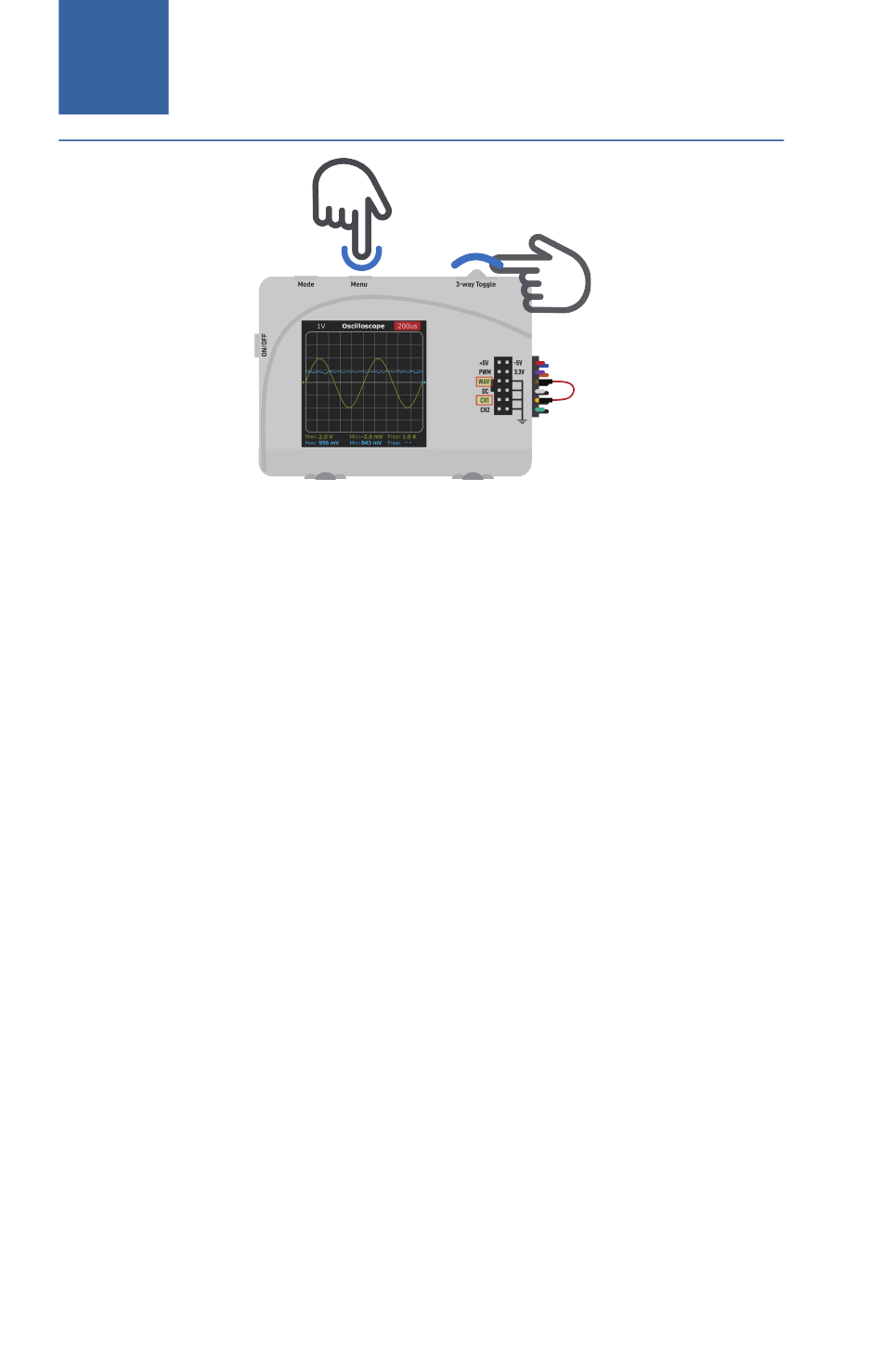

The Zoolark oscilloscope is designed to assist novice users in gaining
a qualitative understanding of waveform properties and serves as a
convenient tool for troubleshooting and circuit testing. You will still
need to rely on industrial level benchtop oscilloscopes for more precise
quantitative measurement results. When you find Zoolark is being less
capable for your needs, congratulations, since it indicates you are reaching
a higher level of skills and being more prepared for next stage of academic
and career development.
Please refer to Appendix C for more detailed technical information
regarding to Zoolark.

Function Generator

One more important instrument you are expected to see in most
electronics labs is a function generator, which is used to generate various
types of waveforms, such as sine, square, and triangular signals over a
wide range of frequencies. Function generators are primarily used in
the test and debugging of analog circuits for which they serve as a well-
controlled signal excitation source to test the response of the system. A
benchtop function generator example is shown below.
