Aiphone IX Series Programming Manual

Ip video intercom system
Hide thumbs Also See for IX Series:

Advertisement

Quick Links

Download this manual
IXW-MA
9-5/8"
Table of Contents
Programming a New System that Includes the IXW-MA or IXW-MAA
Pages 2-5
-
If updating dimensions, be sure to update the GLC layer too.
Page 5-6
Adding the IXW-MA to an Existing System
-
Please refer to the Product Dimensions Master located here:
H:\Engineering Services\Product Dimensions Master Document\Product Dimensions Master.xlsx
Page 7
SIF Settings
-
Page 8-9
SIF Settings for IX-BA, IX-DA, IX-MV Stations
-
Page 9-10
Relay Output Settings
-
Uploading the Settings
Page 11
-
ATTENTION:
This is an abbreviated programming manual addressing basic IP Relay program settings using IX Support Tool. A complete set
of instructions
(IX Web Setting Manual / IX Operation Manual / IX Support Tool Setting Manual)
IX SERIES
IP Video Intercom System

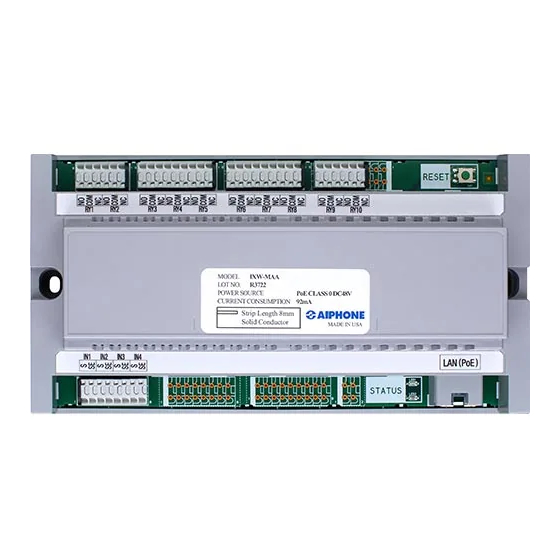

IXW-MA and IXW-MAA
Programming Guide
Create a New System Using the Support Tool Programming Wizard
Adding the IXW-MA to an existing system using the Support Tool Programming Wizard
Configure IX Series stations to interact with the IXW-MA
Configuring legacy IX Series stations to interact with the IXW-MA
Configuring for Door Release or External Signaling
Uploading Settings to Stations and Exporting System Configuration
13/16"
3/8"
can be found at www.aiphone.com/IX.
06/23
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the IX Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aiphone IX Series

Summary of Contents for Aiphone IX Series

  • Page 1 Configure IX Series stations to interact with the IXW-MA Page 8-9 SIF Settings for IX-BA, IX-DA, IX-MV Stations Configuring legacy IX Series stations to interact with the IXW-MA Page 9-10 Relay Output Settings Configuring for Door Release or External Signaling...
  • Page 2 Introduction The IXW-MA and IXW-MAA adaptors have 10 relay outputs that can be triggered by an event on an IX Series station. This guide will walk through programming a system to include either adaptor, as well as programming the outputs.
  • Page 3 Programming a New System to Include an IXW-MA Step 2: Station Customization (continued) 2.2 - Edit Station Details Edit the Number, Name, IP Address, and Subnet Mask for each station as needed. Note: Do not fill in the Hostname. 2.3 - Update Station Details Click OK to update the station details that were edited.
  • Page 4 Programming a New System to Include an IXW-MA Step 3: Association (continued) Scroll Down Scroll Down 3.4 - Status Confirm that each station has been successfully associated in the Status column. 3.5 - Next If all stations show Success, click Next . Step 4: Setting File Upload Once each station has been associated with its individual station information, the setting file containing the rest of the system’s...
  • Page 5 Programming a New System to Include an IXW-MA Step 5: Export Settings The final step in the Programming Wizard is to create a copy of the system’s setting file and export it to a secure location or external drive. 5.1 - Export Click Export .
  • Page 6 Adding an IXW-MA to an Already Existing System C - Select Station Type Select the IXW-MA using the Station Type drop down and enter the quantity of stations to be added. Click D - Edit Station Information Edit the Number and Name for the new station to be added.
  • Page 7 SIF Settings (Go to Page 8 for IX-BA, IX-DA, and IX-MV Settings) Step 1: Enabling SIF Functionality for IX Series Stations The IXW-MA will only recognize the change contact transmission trigger. All other transmission triggers will be ignored by the adaptor.
  • Page 8 Step 1: Creating the SIF.ini File Creating a line of code, in the form of a .ini file, is required to allow an IX Series (IX-DA, IX-BA, IX-MV) station to communicate to the IXW-MA. The example below is shown using a common text editor (e.g. Notepad), and saving it with a .ini extension.
  • Page 9 SIF Settings for IX-BA, IX-DA, and IX-MV Stations the IXW-MA Step 2: Enabling SIF Functionality for IX Series Stations (continued) 2.5 - Scroll Down Scroll down until SIF File Management is displayed. 2.6 - Browse Click Browse to select the SIF.ini file that was created in...
  • Page 10 IXW-MA Relay Output Settings Step 1: Configuring the individual IXW-MA Relays (continued) 1.4 - Contact Change SIF Event 1.5 - Select a Station 1.6 - Update Scroll the window to the right until Relay Click Open and select the Output 1, Contact Change SIF Event is Click Update to save changes.
  • Page 11 If the original program file is lost, or Support Tool is moved to a different PC, this copy can be used to access the system programming to add or remove a station, or to make programming changes. For more details about the features and information above, please contact Technical Support. www.aiphone.com Aiphone Corporation | | (800) 692-0200 06/23...
