06/24

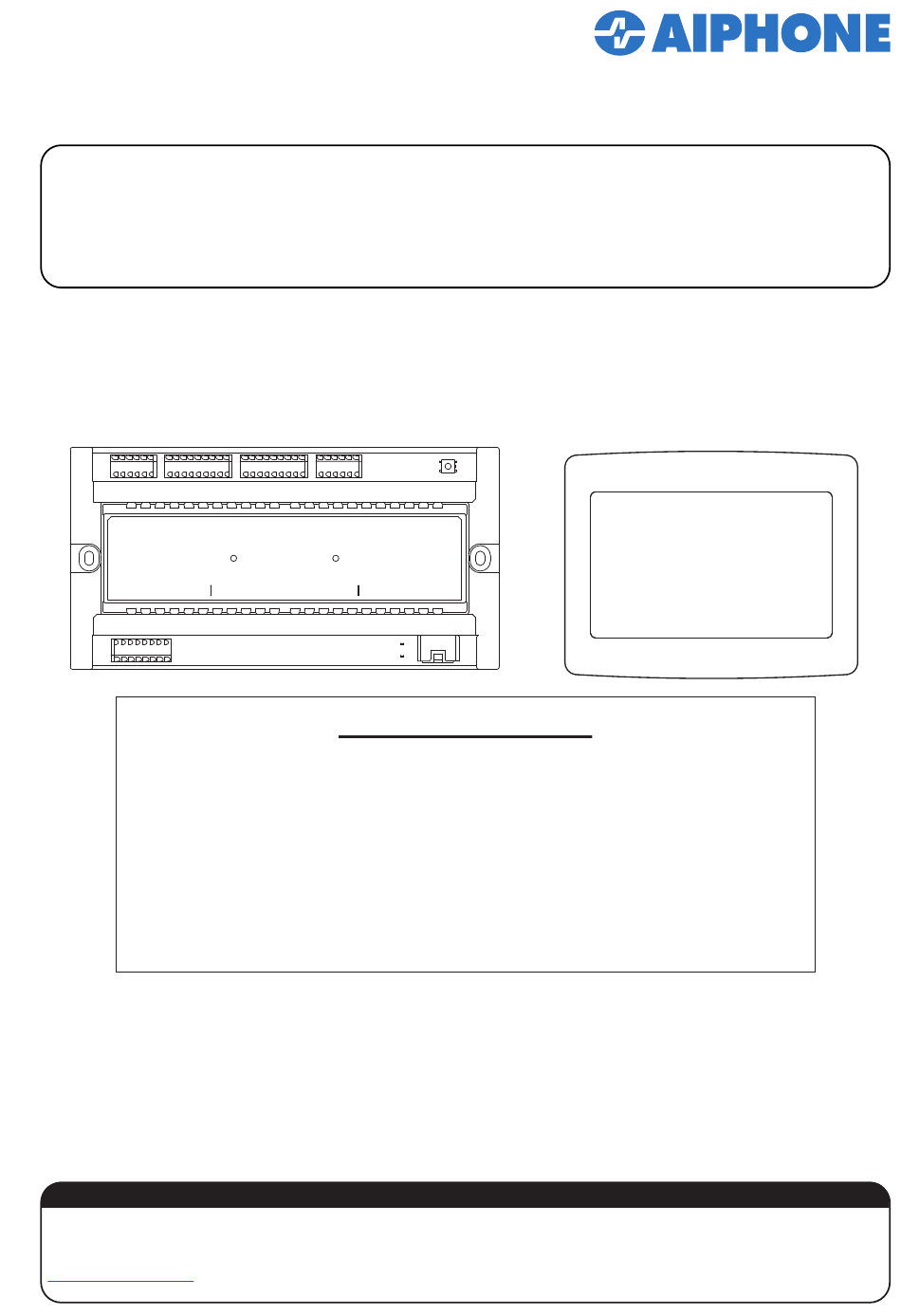

IXW-MA(A)-SOFT Programming Guide

Page 2

Page 3-4

Page 5-6

Page 7

Page 8

ATTENTION:

This is an abbreviated programming manual addressing basic program settings for an IX Series system using the

IX Support Tool. A complete set of instructions

www.aiphone.com/IX, along with additional literature and media.

IX SERIES

IP Video Intercom

IX Support Tool version 10.1.0.1

Table of Contents

Introduction and Adding IXW-MA(A) to the System

IXW-MA(A) Settings with IX Series Stations and IX-SOFT

IXW-MA(A) Settings with IX-DA and IX-BA

Relay Output Settings

Uploading and Exporting the Setting File

(IX Operation Manual / IX Support Tool Setting Manual)

IXW-MA-SOFT, IXW-MA-SOFT-5, IXW

9-5/8"

If updating dimensions, be sure to update the

Please refer to the Product Dimensions Mast

H:\Engineering Services\Product Dimensions Master Document\Product D

13/16"

can be found at

Need help?

Do you have a question about the IX Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Aiphone IX Series

Page 1 Page 8 Uploading and Exporting the Setting File ATTENTION: This is an abbreviated programming manual addressing basic program settings for an IX Series system using the IX Support Tool. A complete set of instructions can be found at (IX Operation Manual / IX Support Tool Setting Manual)

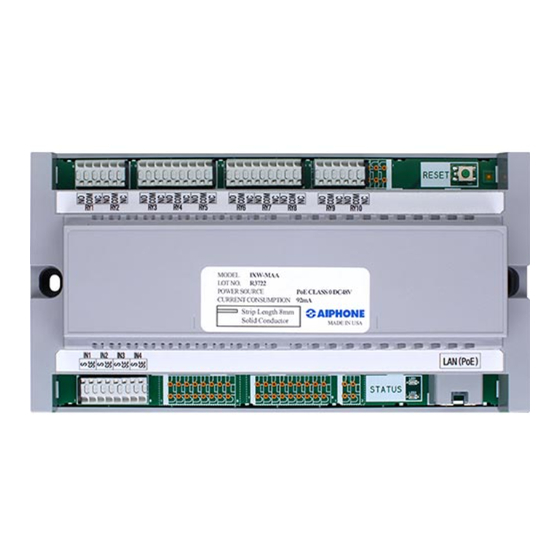

Page 2 An IXW-MA-SOFT or IXW-MAA-SOFT is a variant of an IXW-MA or IXW-MAA IP relay adaptor that contains licenses for Aiphone's PC master station software. It is programmed in the system was an IXW-MA(A) station and still offers the same relay output functions.
Page 3 IXW-MA(A) Settings with IX Series Stations and IX-SOFT Navigate to Network Settings, IP Address. This will display the stations and their network information. These can be adjusted as needed for the site. Record the IP address of the IXW-MA(A) for the next step, then click...
Page 4 IXW-MA(A) Settings with IX Series Stations and IX-SOFT (continued) Use these settings for all other stations: Program Type: 0100 IPv4: The IP address for the IXW-MA(A)-SOFT Destination Port: 65014 SSL: Enable Connection: Socket Once everything is configured, click Update IX-DA and IX-BA door stations will have these settings greyed out.
Page 5 IXW-MA(A) Settings with IX-DA and IX-BA Navigate to Function Settings, SIF. For each IX-DA or IX-BA door station, make sure that SIF Functionality is set to Enable, then click Update Minimize IX Support Tool. Open a simple text editor like Notepad. This will be used to enter the information that the door station will use to communicate with the IXW-MA(A)-SOFT.
Page 6 Select all stations that will receive the SIF.ini file, then click Start Upload Only IX-DA, IX-BA, and IX-MV model stations will accept SIF.ini uploads. All other stations will fail; see pages 3 and 4 for the SIF programming steps for other models. 6 | IX Series - IXW-MA-SOFT Programming Guide...
Page 7 Relay Output Settings The door stations will now send SIF signals to the IXW-MA(A)-SOFT when their relay output is triggered. To configure the outputs on the IXW-MA(A)-SOFT itself, navigate to Option Input / Relay Output Settings, Relay Output. Each of the ten outputs on the IXW-MA(A)-SOFT can be assigned to a single station. By default, IX Support Tool will select Relay Output 1.
Page 8 The entire folder is needed to restore the system. For more details about the features and information above, please contact Technical Support. Aiphone Corporation | www.aiphone.com | (800) 692-0200 8 | IX Series - IXW-MA-SOFT Programming Guide...
