Ruckus Wireless T305e Quick Setup Manual

T305e Access Point
Quick Setup Guide
This Quick Setup Guide provides step-by-step instructions on
how to install the Ruckus Wireless T305e access point (AP). For
detailed information on planning the installation, performing a
site survey, and operating the T305e, refer to the Ruckus Wireless
Outdoor Access Point User Guide, available at
support.ruckuswireless.com.
WARNING! Only trained and qualified personnel should be
allowed to install, replace, or service this equipment.
CAUTION! Installation of this equipment must comply with
local and national electrical codes.
CAUTION! Form a 80-mm to 130-mm (3-in. to 5-in.) drip loop
in any cable that is attached to the AP or the building. This will
prevent water from running along the cable and entering the
AP or the building where the cable terminates.
CAUTION! Be sure that grounding is available and that it
meets local and national electrical codes. For additional
lightning protection, use lightning rods and lightning arrestors.
CAUTION! Make sure that proper lightning surge protection
precautions are taken according to local electrical code.
CAUTION! Ruckus strongly recommends that you wear eye
protection before mounting the T305e.
This Guide in Other Languages
• 请从以下网站获得该指南的简体中文版 https://
support.ruckuswireless.com.
• Vous trouverez la version française de ce guide à l'adresse
suivante https://support.ruckuswireless.com.
• このガイドの日本語版は https://support.ruckuswireless.com
ご覧ください。
• 이 가이드의 한국어 버전은 웹 사이트 (https://
support.ruckuswireless.com) 에서 확인하시기 바랍니다.
• Veja a versão em português (Brasil) deste guia em
support.ruckuswireless.com.
• Puede ver la versión en español (América Latina) de esta guía
en https://support.ruckuswireless.com.
Before You Begin
Before deploying Ruckus products, please check for the latest
software and the release documentation.
Copyright © 2019 ARRIS Enterprises LLC. All rights reserved.
Published June 2019, Part Number 800-72105-001 Rev B
• Release Notes and other user documentation are available at
http://support.ruckuswireless.com/documents.
• Software upgrades are available at
support.ruckuswireless.com/software.
• Open source information is available at
opensource.ruckuswireless.com.
• Software license and limited warranty information are
available at http://support.ruckuswireless.com/warranty.
NOTE: The minimum software revision for the T305e is
SmartZone (SZ) 5.1.1 New AP Model.
Required Hardware and Tools
• No. 2 Phillips screwdriver
• Medium flat-blade screwdriver
• Wide flat-blade screwdriver
https://
• Torque wrench or torque screwdriver with sockets
• Pipe or pole, or a sturdy flat surface
• Electric drill with drill bits and customer-supplied wall anchors,
flat washers, and hex nuts for flat-surface mount
Package Contents
A complete T305e field installation package includes all of the
following items:
• T305e Access Point
• One ground wire with lug
• Two steel pipe clamps
• Service Level Agreement/Limited Warranty Statement
• Declaration of Conformity
• AP Cloud Management Insert
• Regulatory Statement
• Ruckus Wireless AP Getting Started Guide
• This Quick Setup Guide
Mounting Instructions
Connecting and Sealing the RJ-45 Cables
The T305e has one PoE port and one port for Console.
WARNING! Do not plug in a PoE cable in the console port.
NOTE: The cable gland for the PoE port comes installed at the
factory. Remove the rubber cord from the cable gland and
で
connect and seal the RJ-45 cables using the M25 data cable
gland.
https://

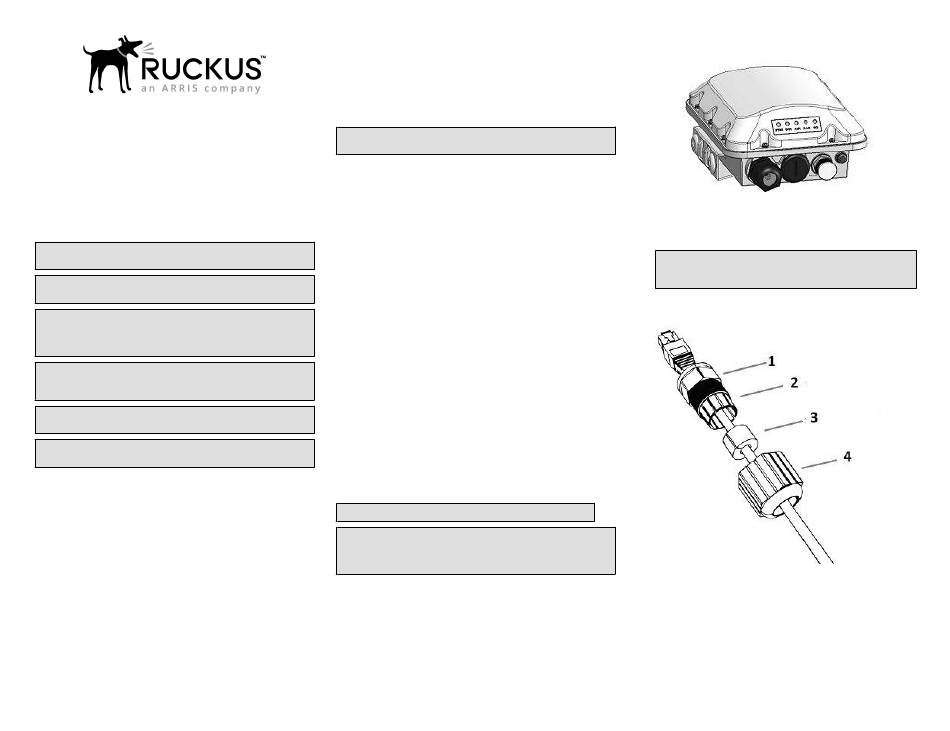

FIGURE 1 T305e Access Point
http://
http://
1. Feed the end of the cable through the sealing nut, rubber O-
ring, clamping ring assembly and cable gland base, as shown
in Figure 2.
NOTE: Do not seat the clamping ring and rubber O-ring
into the cable gland base until the cable gland base has
been torqued to specifications.
FIGURE 2 RJ-45 Cable and Cable Gland Assembly
1 - Cable gland base
2 - Clamping ring assembly
3 - Rubber O-ring
4 - Sealing nut
2. Connect the cable to the PoE port on the AP.
3. Tighten the cable gland base to 7 N.m or 62 in-lbs.
4. Wrap the clamping ring assembly around the rubber O-ring.
Make sure that the clamping ring assembly fully encloses the
rubber O-ring.
Page 1 of 5
