T300 Access Point

Mounting Guide

CAUTION!
The minimum software revision for the T300 AP is
ZoneFlex (ZF) 9.8.1, or SmartCell Gateway (SCG) 2.5.1 or later, or
virtual SmartCell Gateway (vSCG) 3.0 or later.
Do not connect the T300 AP to a Ruckus Wireless Controller
with ZF 9.8.x or earlier, or to SCG 2.5.x or earlier, or to vSCG
2.x or earlier.
This Mounting Guide provides step-by-step instructions on how
to field-install the Ruckus Wireless T300 Omni 802.11ac outdoor
access point (AP). Unless specifically indicated, the rest of this
document refers to the T300 as an AP.
For detailed information on planning the installation, performing a
site survey, preparing the AP at the depot and shipping to the
field, refer to the T300, T301n and T301s 802.11ac Outdoor
Access Point Installation Guide. For information on configuring
and operating the AP, refer to the ZoneFlex Outdoor Access Point
User Guide. Both documents are available at
https://support.ruckuswireless.com.
WARNING:
Only trained and qualified personnel should be
allowed to install, replace, or service this equipment.
WARNING:
Installation of this equipment must comply with local
and national electrical codes.
CAUTION:
Make sure that you form a 80mm - 130mm (3"-5")
drip loop in any cable that is attached to the AP or the building.
This will prevent water from running along the cable and entering
the AP or the building where the cable terminates.
CAUTION:
Be sure that grounding is available and that it meets
local and national electrical codes. For additional lightning
protection, use lightning rods and lightning arrestors.
CAUTION:
Make sure that proper lightning surge protection
precautions are taken according to local electrical code.
WARNING:
Ruckus Wireless strongly recommends that you wear
eye protection before mounting the AP.
Copyright © 2014 Ruckus Wireless, Inc.
Published September 2014, Part Number 800-70492-001 Rev D
T
G
O
L
HIS
UIDE IN
THER
ANGUAGES
请从以下网站获得该指南的简体中文版
https://support.ruckuswireless.com.
Vous trouverez la version française de ce guide à l'adresse
suivante https://support.ruckuswireless.com.
こ の ガ イ ド の日本語版は
https://support.ruckuswireless.com
で ご 覧 く だ さ い。
이 가이드의 한국어 버전은 웹 사이트
(https://support.ruckuswireless.com) 에서 확인하시기 바랍니
다 .
Veja a versão em português (Brasil) deste guia em
https://support.ruckuswireless.com.
Puede ver la versión en español (América Latina) de esta guía
en
https://support.ruckuswireless.com.
R
H
T
EQUIRED
ARDWARE AND
OOLS
Torque wrench or torque screwdriver with sockets and bits
Wide flat-blade screwdriver
Medium flat-blade or No. 2 Phillips screwdriver
Customer-supplied outdoor-rated Cat5e UTP RJ-45 Ethernet
cable with 4.0mm to 6.5mm (0.17" to 0.26") round cable
sheath
If you need to lock the mounting bracket to the AP, then you will
also need:
One customer-supplied stainless steel 6mm M3 panhead
locking security screw and security screwdriver.
If you are mounting the AP on a flat surface, then you will also
need:
Customer-supplied wall anchors with up to M6 or 0.25"
stainless steel screws rated to withstand 128 N or 28.8 lbf
(required to withstand wind loads of 266km/h or 165mph)
NOTE:
The screw head/washer combination shall not exceed
3mm (0.12") in height.
Electric drill with drill bits and customer-supplied wall anchors,
flat-surface mount
flat washers, and hex nuts for
If you are mounting the AP on a pipe or pole, then you will also
need:
A 25.4mm to 63.5mm (1.0" to 2.5") pipe or pole
Two factory-supplied stainless steel clamps
B
Y
B
EFORE
OU
EGIN
Before deploying Ruckus Wireless products, please check for the
latest software and the release documentation.
User Guides and Release Notes are available at
http://support.ruckuswireless.com/documents
Software Upgrades are available at
http://support.ruckuswireless.com/software
Open Source information is available at
http://opensource.ruckuswireless.com
Software License and Limited Warranty available at
http://support.ruckuswireless.com/warranty
P
C
ACKAGE
ONTENTS
Before deploying your AP in the field, verify that all items listed
below are included in the package. If any item is damaged or
missing, notify your authorized Ruckus Wireless sales
representative. Also, make sure that you have the required
hardware and tools.
One T300 AP (A in Figure 1); includes one wall- or pole-
mounting bracket and one 12mm M6x1 earth ground screw
with split lock and flat washers
One M25 data cable gland (B in Figure 1)
One green/yellow earth ground wire with ring terminal (C in
Figure 1)
Two SAE32-sized stainless steel clamps, 2.5-inch diameter (D
in Figure 1)

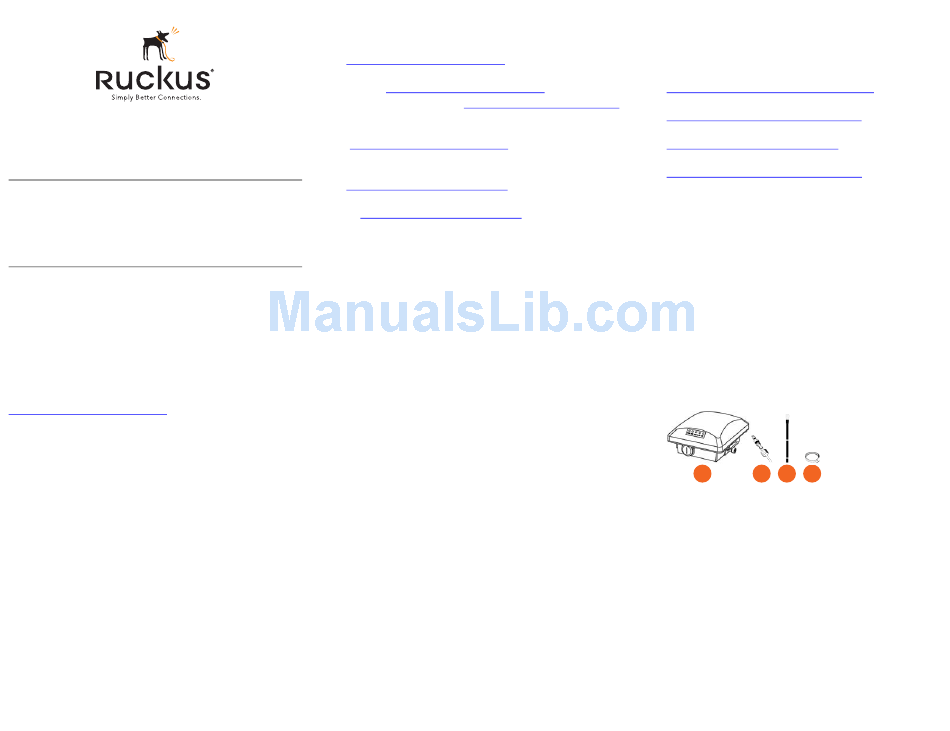

Figure 1:
AP field-installation package contents
A
B
C
D
The field installation package can also include:
Service Level Agreement/Limited Warranty Statement
Regulatory Statement
Registration card
Declaration of Conformity, if required
This Mounting Guide
