T310c Access Point
Quick Setup Guide
NOTE: The minimum software revision for the T310c is
ZoneDirector (ZD) 10.1 or later, or SmartZone (SZ) 3.6
or later, or standalone AP firmware 108.0 or later.
This Quick Setup Guide provides step-by-step instructions
on how to field-install the Ruckus Wireless T310c access
point (AP). For detailed information on planning the
installation, performing a site survey, and operating the
T310c, refer to the Ruckus Wireless Outdoor Access Point
User Guide, available at https://
support.ruckuswireless.com.
WARNING! Only trained and qualified personnel
should be allowed to install, replace, or service this
equipment.
WARNING! Installation of this equipment must comply
with local and national electrical codes.
CAUTION! Make sure that you form a 80mm - 130mm
(3"-5") drip loop in any cable that is attached to the AP
or the building. This will prevent water from running
along the cable and entering the AP or the building
where the cable terminates.
CAUTION! Be sure that grounding is available and that
it meets local and national electrical codes. For
additional lightning protection, use lightning rods and
lightning arrestors.
CAUTION! Make sure that proper lightning surge
protection precautions are taken according to local
electrical code.
WARNING! Ruckus Wireless strongly recommends that
you wear eye protection before mounting the T310c.
This Guide in Other Languages
•
support.ruckuswireless.com.
Copyright © 2019 CommScope, Inc. All rights reserved.
Published November 2019, Part Number 800-71622-001 Rev C
• Vous trouverez la version française de ce guide à
l'adresse suivante https://support.ruckuswireless.com.
• このガイドの日本語版は
support.ruckuswireless.com
• 이 가이드의 한국어 버전은 웹 사이트
support.ruckuswireless.com) 에서 확인하시기 바랍니다.
• Veja a versão em português (Brasil) deste guia em
https://support.ruckuswireless.com.
• Puede ver la versión en español (América Latina) de
esta guía en https://support.ruckuswireless.com.
Before You Begin
Before deploying Ruckus Wireless products, please check
for the latest software and the release documentation.
• Release Notes and other user documentation are
available at http://support.ruckuswireless.com/
documents.
• Software upgrades are available at
support.ruckuswireless.com/software.
• Software license and limited warranty information are
available at http://support.ruckuswireless.com/
warranty.
Before deploying your Ruckus Wireless Access Point,
verify that all items listed in Package Contents are
included in the package. If any item is damaged or
missing, notify your authorized Ruckus Wireless sales
representative. Also, make sure that you have the
required hardware and tools.
Required Hardware and Tools
• No. 2 Phillips screwdriver
• Small flat-blade screwdriver
• Torque wrench or torque screwdriver with sockets
• Long-nose pliers
• Electrical wire stripping and terminal crimping pliers
• Pipe or pole --OR-- a sturdy flat surface
• Electric drill with drill bits and customer-supplied wall
anchors, flat washers, and hex nuts for flat-surface
mount
Package Contents
A complete T310c field installation package includes all of
the items listed below (see Figure below for illustrations):
• T310c Access Point (A)
• M25 data cable gland (B)
https://
• Ground wire with lug (C)
• Pole/Wall Mount Bracket Kit (D)
• Four steel pipe clamps
https://
• Service Level Agreement/Limited Warranty Statement
でご覧ください。
• Declaration of Conformity
(https://
• Regulatory Statement
• Ruckus Wireless AP Getting Started Guide
• This Quick Setup Guide

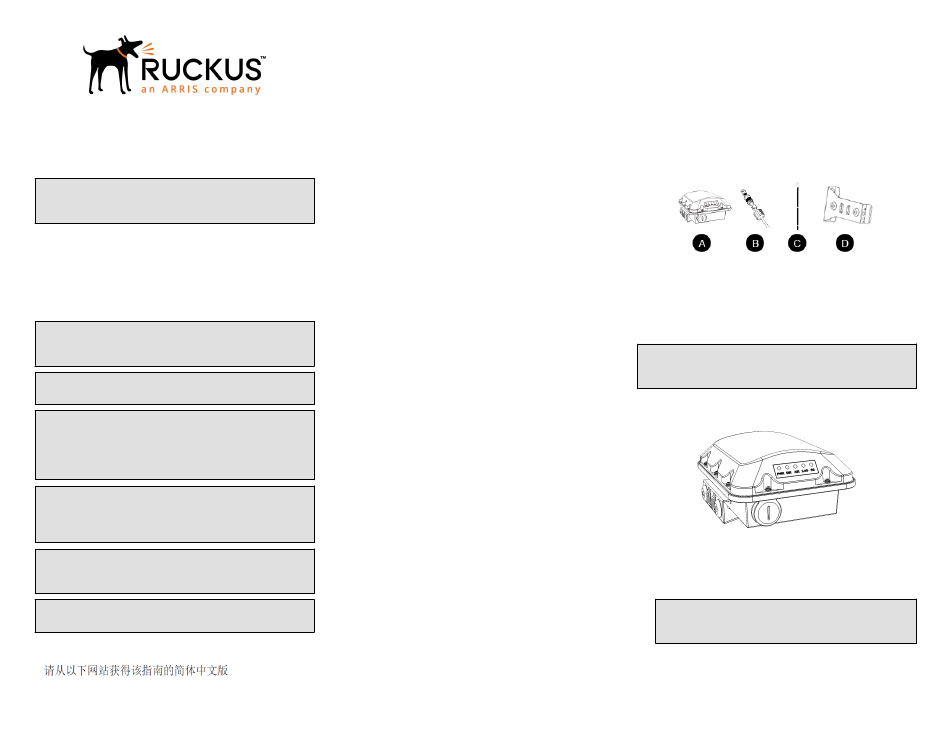

FIGURE 1 T310c Package Contents
Mounting Instructions
http://
Connecting And Sealing the RJ-45 Cables
Connect and seal the RJ-45 cable(s) using the M25 data
cable glands shown in the Figure below.
FIGURE 2 T310c LEDs and Ports
WARNING! Do not use any PoE injector not tested and
approved by Ruckus Wireless to power the T310c
Access Point.
1. Feed the end of the cable through the sealing nut,
rubber O-ring, clamping ring assembly and cable
gland base as shown.
NOTE: Do not seat the clamping ring and rubber O-
ring into the gland body until the gland body has
been torqued to spec.
