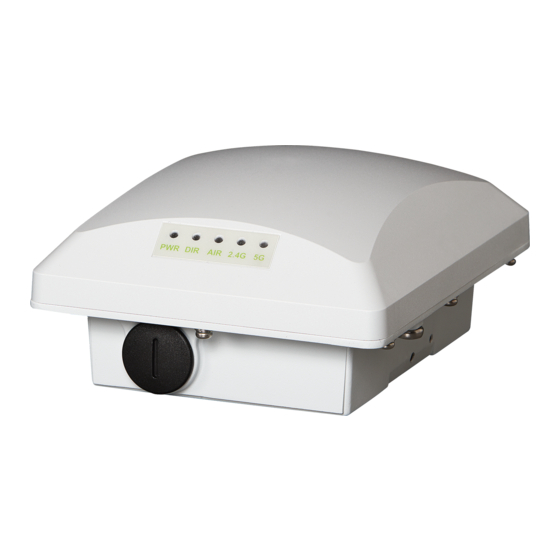

Unleashed T300 Access Point
Quick Setup Guide
This Quick Setup Guide provides step-by-step instructions on
installation and initial setup of the Ruckus Wireless Unleashed
T300 802.11ac outdoor access point (AP). Unless specifically
indicated, the rest of this document refers to the Unleashed T300
series APs (including T300, T300e, T301s and T301n) as an "AP."
For detailed information on configuring and operating the
Unleashed network, refer to the Unleashed Online Help. To
access the Online Help, click the Help link from within the
Unleashed user interface.
WARNING: Only trained and qualified personnel should be
allowed to install, replace, or service this equipment.
WARNING: Installation of this equipment must comply with local
and national electrical codes.
CAUTION: Make sure that you form a 80mm - 130mm (3"-5")
drip loop in any cable that is attached to the AP or the building.
This will prevent water from running along the cable and entering
the AP or the building where the cable terminates.
CAUTION: Be sure that grounding is available and that it meets
local and national electrical codes. For additional lightning
protection, use lightning rods and lightning arrestors.
CAUTION: Make sure that proper lightning surge protection
precautions are taken according to local electrical code.
WARNING: Ruckus Wireless strongly recommends that you wear
eye protection before mounting the AP.
Copyright © 2016 Ruckus Wireless, Inc.
Published September 2016, Part Number 800-71077-001 Rev B
T G O L
HIS UIDE IN THER ANGUAGES
请从以下网站获得该指南的简体中文版
•
https://support.ruckuswireless.com.
• Vous trouverez la version française de ce guide à l'adresse
suivante https://support.ruckuswireless.com.
こ の ガ イ ド の⽇本語版は https://support.ruckuswireless.com
•
で ご 覧 く だ さ い。
이 가이드의 한국어 버전은 웹 사이트
•
(https://support.ruckuswireless.com) 에서 확인하시기 바랍니
다 .
• Veja a versão em português (Brasil) deste guia em
https://support.ruckuswireless.com.
• Puede ver la versión en español (América Latina) de esta guía
en https://support.ruckuswireless.com.
R H T
EQUIRED ARDWARE AND OOLS
• Torque wrench or torque screwdriver with sockets and bits
• Wide flat-blade screwdriver
• Medium flat-blade or No. 2 Phillips screwdriver
• Customer-supplied outdoor-rated Cat5e UTP RJ-45 Ethernet
cable with 4.0mm to 6.5mm (0.17" to 0.26") round cable
sheath
If you need to lock the mounting bracket to the AP, then you will
also need:
• One customer-supplied stainless steel 6mm M3 panhead
locking security screw and security screwdriver.
If you are mounting the AP on a flat surface, then you will also
need:
• Customer-supplied wall anchors with up to M6 or 0.25"
stainless steel screws rated to withstand 128 N or 28.8 lbf
(required to withstand wind loads of 266km/h or 165mph)
NOTE: The screw head/washer combination shall not exceed
3mm (0.12") in height.
• Electric drill with drill bits and customer-supplied wall anchors,
flat-surface mount
flat washers, and hex nuts for
If you are mounting the AP on a pipe or pole, then you will also
need:
• A 25.4mm to 63.5mm (1.0" to 2.5") pipe or pole
• Two factory-supplied stainless steel clamps
B Y B
EFORE OU EGIN
Before deploying Ruckus Wireless products, please check for the
latest software and the release documentation.
• User Guides and Release Notes are available at
http://support.ruckuswireless.com/documents
• Software Upgrades are available at
http://support.ruckuswireless.com/software
• Open Source information is available at
http://opensource.ruckuswireless.com
• Software License and Limited Warranty available at
http://support.ruckuswireless.com/warranty
P C
ACKAGE ONTENTS
Before deploying your AP in the field, verify that all items listed
below are included in the package. If any item is damaged or
missing, notify your authorized Ruckus Wireless sales
representative. Also, make sure that you have the required
hardware and tools.
• One T300 AP (A in Figure 1); includes one wall- or pole-
mounting bracket and one 12mm M6x1 earth ground screw
with split lock and flat washers
• One M25 data cable gland (B in Figure 1)
• One green/yellow earth ground wire with ring terminal (C in
Figure 1)
• Two SAE32-sized stainless steel clamps, 2.5-inch diameter (D
in Figure 1)

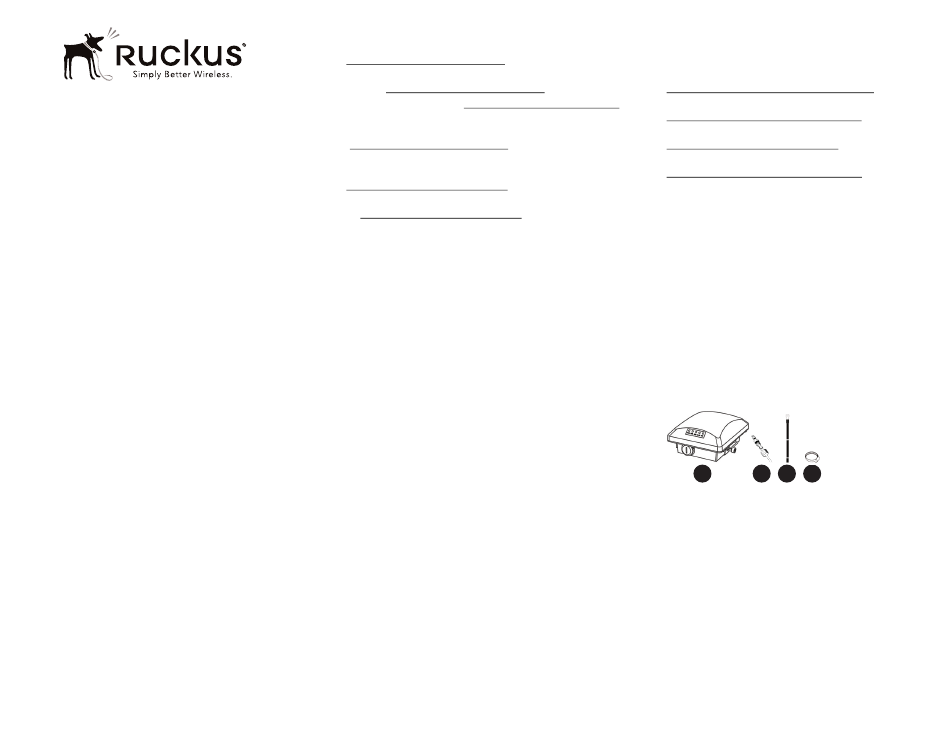

Figure 1: AP field-installation package contents
A B C D
The field installation package can also include:
• Service Level Agreement/Limited Warranty Statement
• Regulatory Statement
• Registration card
• Declaration of Conformity, if required
• This Mounting Guide
