Summary of Contents for Chipsee PPC-A76-070

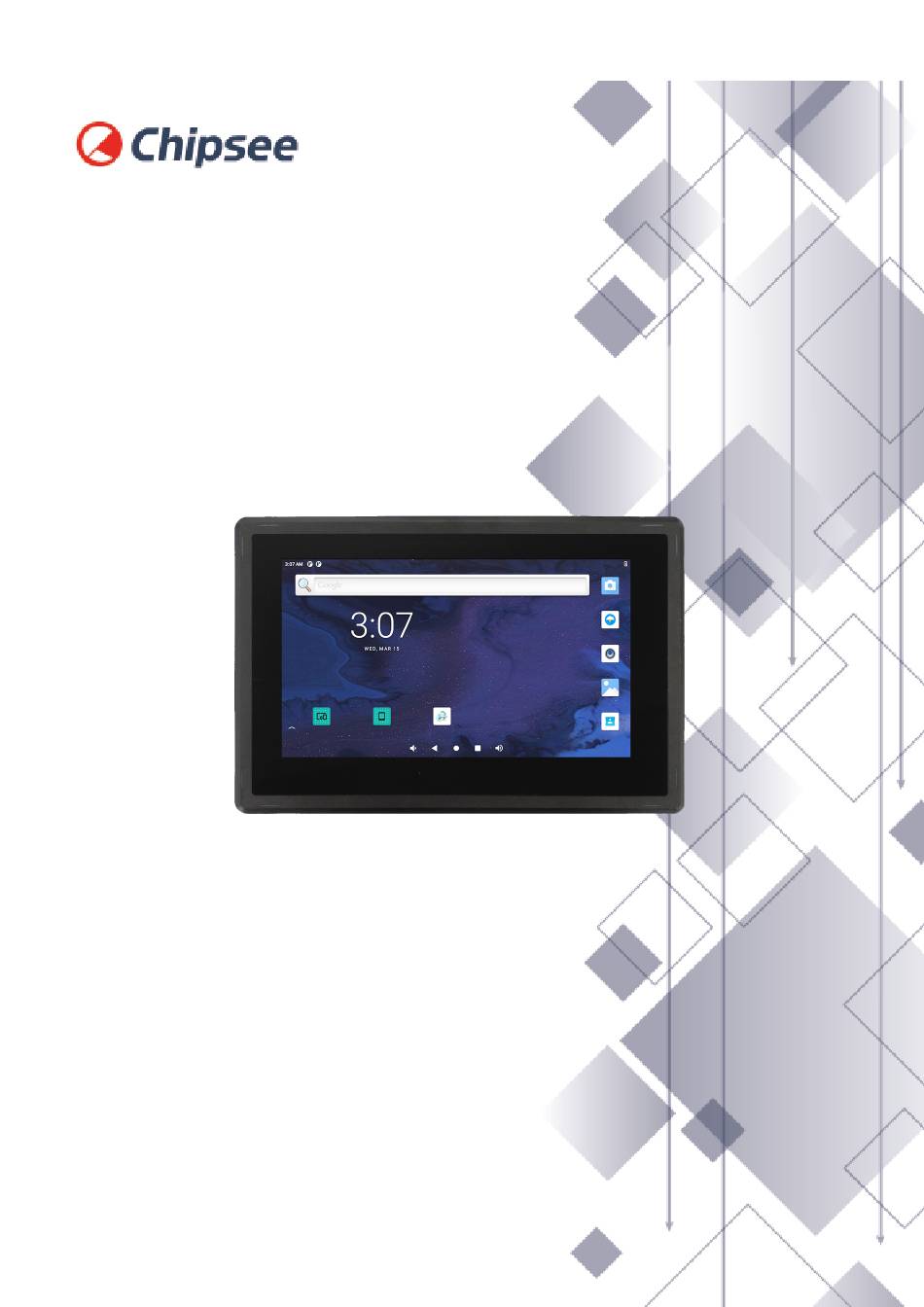

- Page 1 Industrial PC PPC-A76-070 PN: CS10600-RK3588-070P Content can change at anytime, check our website for latest information of this product. www.chipsee.com...
-
Page 2: Table Of Contents
Contents PPC-A76-070 1. Product Overview 2. Ordering Options 2.1. Operating System 2.2. Optional Features 3. Hardware Features 4. Power Input 4.1. Default Connector 4.2. DC Jack 4.3. Ignition Signal 5. Touch Screen 6. Connectivity 6.1. RS232/RS485/CAN 6.2. USB Connectors 6.3. LAN Connectors 6.4. -
Page 3: Ppc-A76-070
PPC-A76-070 PPC-A76-070 Front View Chipsee Page 3 of 33... -
Page 4: Rear View
PPC-A76-070 Rear View Chipsee Page 4 of 33... -
Page 5: Side View
PPC-A76-070 Side View 1 Chipsee Page 5 of 33... - Page 6 PPC-A76-070 Side View 2 Chipsee Page 6 of 33...
-
Page 7: Product Overview
• Installation on an industrial cabinet • Integration with the existing equipment The PPC-A76-070 Industrial Panel PC is based around the powerful RK3588 System on Chip (SoC), powered by the Rockchip RK3588 low-power processor which integrates a Quad(4)- ® ®... -
Page 8: Ordering Options
Software Documentation section provides a detailed instruction on how to install different OSes on your own. However, bear in mind that Chipsee can’t take the responsibility of inadequate installation procedure. If you “brick” your device, please contact Chipsee Technical Support at support@chipsee.com... -
Page 9: Optional Features
Chipsee store during the ordering process. Warning Installation, repair, and maintenance tasks should be performed by trained personnel only. Chipsee does not bear any responsibility for damage caused by inadequate handling of the product. Chipsee... -
Page 10: Hardware Features
PPC-A76-070 Hardware Features Hardware Features The PPC-A76-070 Industrial Panel PC offers a broad range of performance and connectivity options for scalable integration, providing expandability according to future needs. Some of the key features are listed in the table below. PPC-A76-070 Rockchip RK3588, Quad(4)-core Cortex-A76 (2.4GHz) and Quad(4)-core Cortex-A55... - Page 11 This product has 6 x UART channels in total. The default configuration is 2 x RS232 and 3 x RS485, including 1 debug port. CAN0 can be configured to RS232. UART can be swapped between RS232 and RS485 modes easily, if you need a different RS232/RS485 configuration, please get in touch with the Chipsee Technical Support at support@chipsee.com...
-
Page 12: Power Input
Power Input Power Input The PPC-A76-070 Industrial Panel PC can be powered by a wide range of input voltages: From 6V to 36V (supports optional 24V ignition signal) DC. There are two DC input interfaces on this device: a 3-pin, 3.81mm terminal, and a 2.1mm I.D x 5.5mm O.D x 9.5mm DC connector. -
Page 13: Dc Jack
PPC-A76-070 DC Jack Power Input Definition Pin 3 Ground Power System Ground Power Connector Note The system ground “G” is connected to power negative “-” on board. DC Jack For a proper 2.1mm x 5.5mm x 9.5mm DC power connector, refer to the figure below:. -
Page 14: Ignition Signal
PPC-A76-070 Ignition Signal Ignition Signal The product has a “ignition signal” optional feature. By default the ignition signal is not installed. If you need this feature you can contact us when placing an order. In this setup, Pin 3 is the ignition signal pin. -
Page 15: Touch Screen
Use a high-quality Power Adapter Unit (PSU) with low EMR. You can also provide power from a battery. Make sure that the PPC-A76-070 Power Input connector (pin 3) is properly connected to the Power System Ground to provide sufficient EMI shielding and eliminate the problem entirely. -
Page 16: Connectivity
Connectivity Connectivity There are many connectivity options available on the PPC-A76-070 industrial PC. It has 2 x USB 3.0 HOST, 1 x USB Type-C, 2 x RJ45, GbE (RJ45) Ethernet connector supporting up to 1 Gbps, and 5 x UART terminals (RS232/RS485), 2 x CAN. - Page 17 PPC-A76-070 RS232/RS485/CAN Pin Number Definition Description OS Node Pin 2 System Ground System +5V Power Output, No more than 1A Pin 1 Current output RS232 / RS485 / CAN Pin Definition Attention RS485_3,RS485_4 and RS485_5 can control the input and output direction automatically. There’s no need to control it from within the software.
-
Page 18: Usb Connectors
PPC-A76-070 USB Connectors USB Connectors There are 2 x USB HOST and 1 x USB DEVICE (for flashing OS) ports onboard: 2 x USB 3.0 HOST, 1 x USB Type-C, as shown in the figures below. The USB-A host (near RJ45) and USB-C can’t be used at the same time. Before boot into OS, USB-C is enabled for install OS image;... -
Page 19: Lan Connectors
PPC-A76-070 LAN Connectors LAN Connectors LAN (RJ45) connector provides 2 x RJ45 Ethernet connectivity over standardized Ethernet cables as shown in the figure below. The integrated Ethernet interface supports up to 1 Gbps data throughput. RJ45 LAN Connector Note Use CAT5 or better cables to achieve full data throughput over maximum distance defined by the 1000BASE-T standard (100m). -
Page 20: Wifi & Bt Module
WiFi & BT Module WiFi & BT Module The PPC-A76-070 Industrial Panel PC is equipped with the WiFi-6 Realtek RTL8852BE WiFi/ BT chip (through CPU PCIe lane) which supports Bluetooth V2.1+EDR/4.2/5.2, as well as IEEE802.11a/b/g/n/ac/ax 2.4/5 GHz Wireless LAN (WLAN). -
Page 21: 4G/Lte Module
CPU lane) that can connect an optional 4G/LTE module. The customer will also need a SIM Card Holder and a 4G/LTE antenna connector to ensure 4G/LTE works on the PPC-A76-070. SIM card does NOT support hot plug. Power off before inserting or removing SIM card. - Page 22 PPC-A76-070 4G/LTE Module SIM Card Direction Attention The product does not come shipped with the 4G/LTE module by default. The customer can choose the 4G/LTE module option when placing an order, we will install all the necessary components. Chipsee...
-
Page 23: Gpio
GPIO GPIO The PPC-A76-070 Industrial Panel PC features a 10-pin 3.81 mm terminal that provides 8 x opto-isolated GPIO pins, of which 4 x are output, and 4 x are input pins. The 10-pin terminal also includes an isolated PSU input in the range of 5 to 24 VDC. The exact pinout is given in follow table. - Page 24 PPC-A76-070 GPIO Isolated GPIO reduced schematic Pin Number Definition GPIOD Chip GPIOD Line Pin 1 Isolated Power Input3 Pin 2 Isolated Ground Input Pin 3 OUT1 Pin 4 OUT2 Pin 5 OUT3 Pin 6 OUT4 Pin 7 Pin 8 Pin 9...
- Page 25 PPC-A76-070 GPIO It is also possible to use the onboard 5V power supply: it can be re-routed to the Isolated Power Input pin by populating two PCB resistor footprints with 0Ω resistors. Note that in this case, the Isolated Power Input pin will become an output for the onboard 5V power supply.
-
Page 26: Tf Card Slot
PPC-A76-070 TF Card Slot TF Card Slot The PPC-A76-070 Industrial Panel PC features 1 x TF Card (micro SD) slot. TF Card can address up to 128GB of storage. TF (micro SD) Card Slot Note The product does not come shipped with the TF Card by default. -
Page 27: Audio Connectors
PPC-A76-070 Audio Connectors Audio Connectors The PPC-A76-070 Industrial Panel PC features some audio peripherals. It has a 3.5mm audio input/output jack, an internal speaker, as well as a small buzzer. Audio Connector (enclosed PC version) The miniature 2W embedded speaker is handy for audio reproduction, the small buzzer can play alarm/notification sounds. -
Page 28: Hdmi Connector
PPC-A76-070 HDMI Connector HDMI Connector The PPC-A76-070 Industrial Panel PC is equipped with 1 x HDMI-D (Micro-HDMI) Out port. The HDMI connector allows connecting an additional (external) monitor. HDMI output resolution can be configured by the software. HDMI Connector Chipsee... -
Page 29: Prog Button
PPC-A76-070 PROG Button PROG Button The PPC-A76-070 Industrial Panel PC has one button on the board marked as PROG, as shown in the figure below. When the button is pressed before powering up, the PPC-A76-070 will enter MASKROM mode. In this mode you can use a USB Type-C cable to upgrade its operating system. You can use this feature to flash another OS to the internal eMMC. -
Page 30: Mounting Procedure
PPC-A76-070 Mounting Procedure Mounting Procedure You can mount PPC-A76-070 with VESA mounting (guide): 75 x 75 mm, 4 x M4 (6mm) screws. You can also mount PPC-A76-070 with panel mounting method (guide). Attention Please make sure the display is not exposed to high pressure when mounting into an enclosure. -
Page 31: Mechanical Specifications
PPC-A76-070 Mechanical Specifications Mechanical Specifications For PPC-A76-070, the outer mechanical dimensions are 188.05 x 123.11 x 33.20mm (W x L x Please refer to the technical drawing in the figure below for details related to the specific product measurements. PPC-A76-070 Technical Drawing... -
Page 32: D Model
3D Model 3D Model PPC-A76-070 3D model can be viewed in the online doc in a web browser, if you are reading from the PDF version, please visit the online doc PPC-A76-070, select hardware documentation, drag the navigation bar to the 3D Model section. -
Page 33: Disclaimer
If you cannot find the solution you’re looking for, feel free to contact us. Please email Chipsee Technical Support at support@chipsee.com, providing all relevant information. We value your queries and suggestions and are committed to providing you with the assistance you require.
