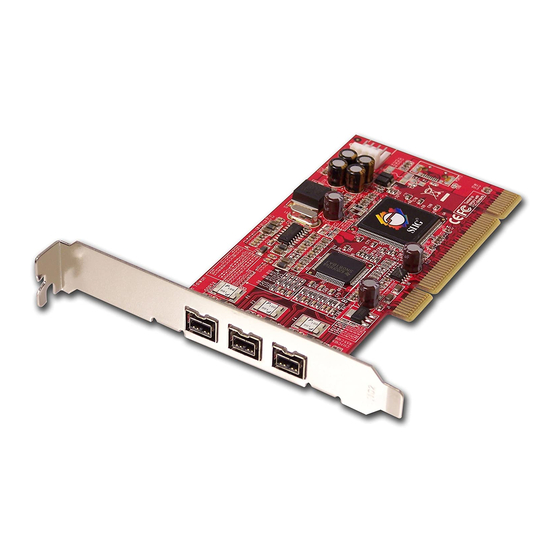

Introducing the FireWire 800 3-Port PCI
The FireWire 800 3-Port PCI is designed to support both
PC and Mac computers. It provides 3 independent hot-
pluggable Firewire 800 (1394b) ports with data transfer
rates up to 800Mbps.
Features and Benefits
Provides 3 FireWire 800 (1394b) ports for multiple
•
1394b and 1394a
Supports IEEE 1394b and backwards compatible
•
with 1394a-2000 and 1394-1995 standards
Supports data transfer rates of 100, 200, 400, and
•
800Mbps
Built-in 4-pin power connector provides a reliable
•
power source when connected to the system's power
supply (recommended)
System Requirements
PC:
Pentium or equivalent PC with an available PCI slot
•
Windows 98SE/ME/2000/XP/Server 2003
•
Mac:
Power Mac G3 (Blue & White) or later with an
•
available PCI slot
Mac OS 9.1-9.2.x, Mac OS 10.1.x-10.2.3: Up to 400
•
Mbps
Mac OS (v10.2.4) or later: Up to 800 Mbps
•
04-0398A
FireWire 800 3-Port PCI
Quick Installation Guide
1
Advertisement
Related Manuals for SIIG NN-830012-S2
Summary of Contents for SIIG NN-830012-S2
- Page 1 FireWire 800 3-Port PCI Quick Installation Guide Introducing the FireWire 800 3-Port PCI The FireWire 800 3-Port PCI is designed to support both PC and Mac computers. It provides 3 independent hot- pluggable Firewire 800 (1394b) ports with data transfer rates up to 800Mbps.
-
Page 2: Hardware Installation
Package Contents FireWire 800 3-Port PCI adapter • Spare standard low profile bracket • Driver CD • This quick installation guide • Board Layout FireWire 800 Ports Hardware Installation Note: For low profile systems, replace the currently mounted bracket with the included low profile bracket. General instructions for installing the card are provided below, since the design of computer cases and motherboards vary. -
Page 3: Driver Installation
Turn OFF the power to your computer and any other connected peripheral devices. Unplug the computer's power cord. Remove your computer’s cover and install the card in an available PCI slot. Push the board down firmly, but gently, until it is well seated. - Page 4 Windows ME At the Add New Hardware Wizard, insert the driver CD, select Automatic Search for a better driver (Recommended), then click Next. Click Finish. Click Yes to restart Windows and complete the installation. Windows 2000 Windows 2000 automatically installs it's built-in 1394a driver.
- Page 5 Right click My Computer, click Manage, then click Device Manager. Double click IEEE 1394 Bus host controller, then double click Texas Instruments OHCI Compliant IEEE 1394 Host Controller. Click the Driver tab, then Update Driver button. Select Install from a list or specific location, then click Next.
- Page 6 Mac OS Driver Installation Mac OS 10.2.4 or later has built-in FireWire 800 (1394b) driver support with the operating system. No driver installation is needed. The FireWire 800 3-Port PCI will work up to 800 Mbps. Mac OS 9.1, 9.2.x, and Mac OS 10.1.x-10.2.3 have built-in FireWire 4000 (1394a) driver support with the operating system.
-
Page 7: Technical Support And Warranty
RMA number posted on the outside of the shipping carton. • You are responsible for the cost of shipping the product to SIIG at the following address: SIIG, Inc. 6078 Stewart Avenue... -
Page 8: Fcc Compliance Statement
Fremont, CA 94538-3152 FireWire 800 3-Port PCI is a trademark of SIIG, Inc. SIIG and SIIG logo are registered trademarks of SIIG, Inc. Microsoft and Windows are registered trademarks of Microsoft Corporation. Pentium is a registered trademark of Intel Corporation.
