Medeli DD506 - Drum Assembly Manual

Before assembly, please make sure that all the items listed below are present.

Assembly

1. Setting up the frame of the digital drum set




   1. Attach the Pillar (L) to the clamp on the L eg (L).
   2. Using the drum key, tighten the screws on the clamp.
   3. Remove the screw att ached to the connector.
   4. Attach the cross pipe to the connector.
   5. Reattach the screw int o the connector
   6. Tighten the screw on the connector.
   7. Attach the Pillar (R) to the clamp on the Leg (R).
   8. Tighten the screws on the clamp.
   9. Remove the screw att ached to the connector.
   10. Attach the cross pipe to the connector.
   11. Reattach the screw into the connector
   12. Tighten the screw on the connector.
   13. Attach Center Pipe(1) to the clamp on the Left Leg Assembly.
   14. Tighten the screws on the clamp.
   15. Attach the Right Leg Assembly to the Center Pipe(1).
   16. Tighten the screws on the clamp.
   17. Attach Center Pipe(2) to the clamp on the Left Leg Assembly.
   18. Tighten the screws on the clamp.
   19. Attach the Right Leg Assembly to the Center Pipe(2).
   20. Tighten the screws on the clamp.
   21. Attach the Side Arm (L1) to the clamp on the Pillar (L).
   22. Tighten the screws on the clamp.
   23. Attach the Side Arm (L2) to the clamp on the Pillar (L).
   24. Tighten the screws on the clamp.
   25. Attach the Side Arm (R) to the clamp on the Pillar (R)
   26. Tighten the screws on the clamp.

2. Attaching the drum pads


   1. Loosen the wing nuts on th e drum pads.
   2. Remove the Metal Rod s.
   3. Reattach the Metal Ro ds to the drum pads.
   4. Tighten the wing nuts securely.
   5. Attach the drum pads assemblies to the holder clamps and adjust their position, then tighten the wing nuts on the Holder clamps.

3. Attaching the cymbal pads



   1. Attach the Cymbal holders to the Holder clamps on the Side Arms.
   2. Tighten the wing nuts on the Holder clamps.
   3. Remove the wing nut an d the felt washer of each Cymbal holders.
   4. Attach the Cymbal pads to the cymbal holders.
   5. Reattach the felt wash er and wing nut, tighten the wing nut of each cymbal holders.

4. Attaching the Drum Module

   1. Attach the Metal Rod to the Drum Module.
   2. Tighten the wing screw securely on the Drum Module.
   3. Attach the Metal Rod to the Holder clamp on the Side Arm (L1) and adjust the position.
   4. Tighten the wind nut on the Holder clamp.

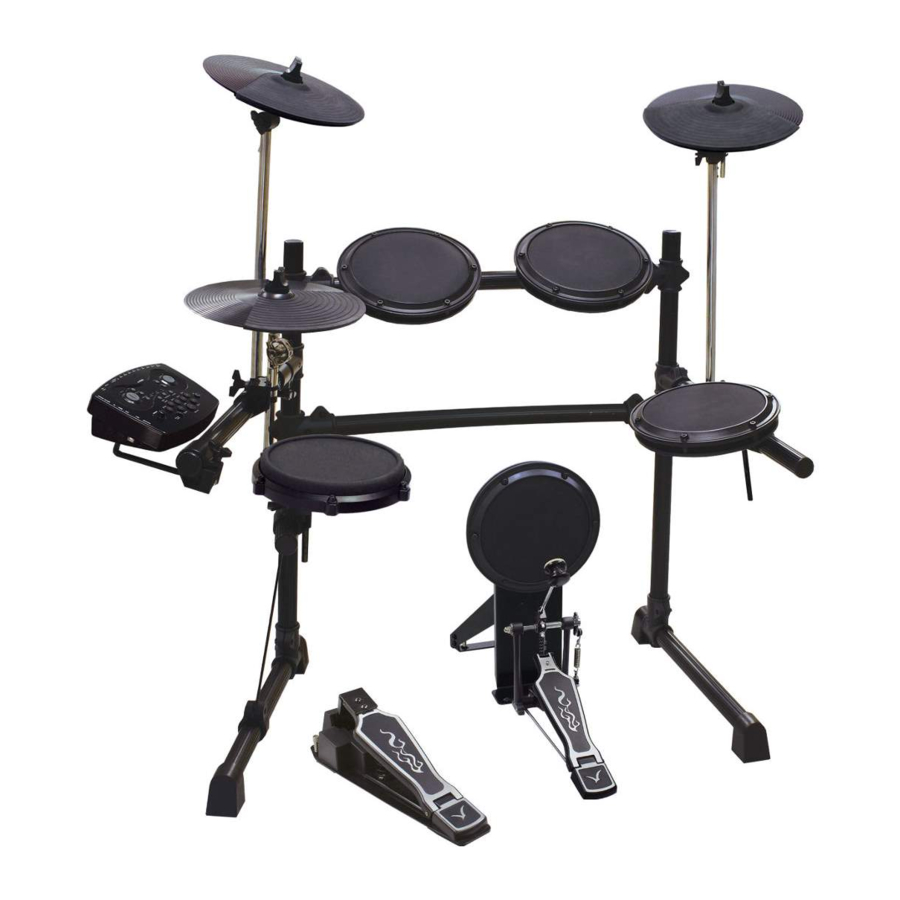

5. Setup Example
