Medeli DD508DX Assembly Instructions

ASSEMBLY INSTRUCTIONS
Caution !
Watch your fingers when adjusting clamps. They may become pinched resulting in injury.
Be careful around pipe ends, inside the pipe and screw ends. Metal shavings, etc. May injure your fingers.
Inside This Package
Before assembly, please make sure that all the items listed below are present.
[14" CYMBAL PAD] BOX [12" CYMBAL PADS] BOX
14" Cymbal Pad 12" Cymbal Pads x 3
[11" & 10" DRUM PADS] BOX [9" DRUM PADS AND KICK PAD] BOX
11" Drum Pad x 1 10 Drum Pad x 1 "
DRUM RACK
Pillar(L1) Pillar(R1)
Pillar(L2) Pillar(R2)
ACCESSORY BOX
Cymbal Holder (Short)
L-Rods of Pads X 5
Cymbal Holder (Long)
Hexagon Key (M5)
Boom Cymbal Arms X 2
[HI-HAT PEDAL] BOX
Hi-Hat Control Pedal
9" Tom Pads x 3
Center Pipe(1)
[Kick Trigger] BOX
Center Pipe(2)
Side Arm(L1)
[DRUM MODULE] BOX
Side Arm(R)
Side Arm(L2)
Connection Cables X 11
Drumsticks X 2
AC Adapter
Instruction Manual
Drum Key

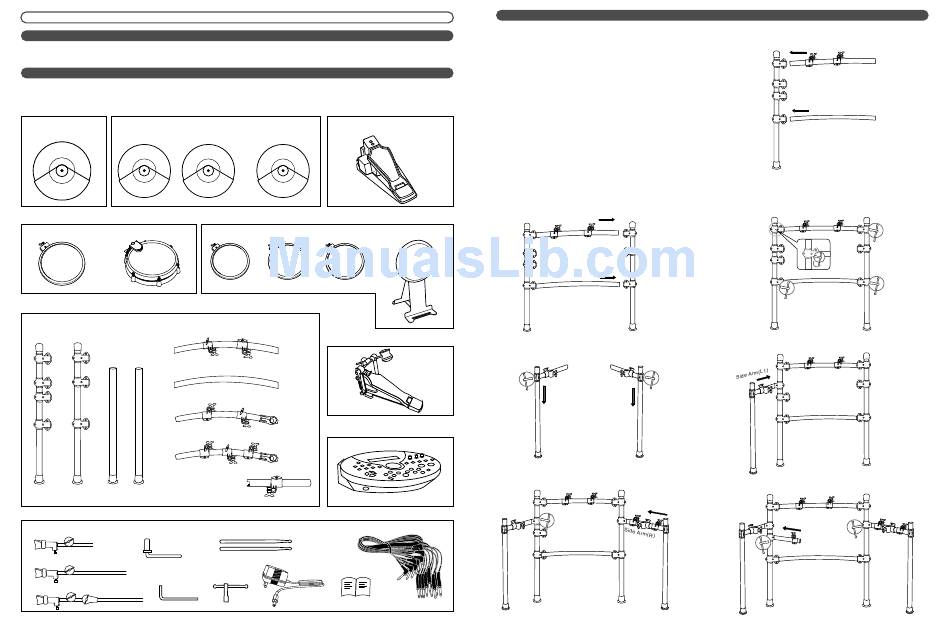

Assembly
Setting up the frame of the digital drum set
[1] Attach the Center Pipe(1) to the clamp on the pillar(L1)
[2] Attach the Center Pipe(2) to the clamp on the pillar(L1)
[3] Attach the Center Pipe(1)(2) to the clamp on the pillar(R1)
[4] Using the drum key tighten the screws on the clamp.
[5] Attach the side arm (L1) to the clamp on the pillar(L2)
[6] Tighten the screws on the clamp.
[7] Attach the side arm (R) to the clamp on the pillar(R2)
[8] Tighten the screws on the clamp.
[9] Attach the side arm(L1) to the clamp on the pillar (L1)
[10] Tighten the screws on the clamp.
[11] Attach the side arm(R) to the clamp on the pillar(R1)
[12] Tighten the screws on the clamp.
[13] Attach the side arm(L2) to the clamp on the pillar(L1)
[14] Tighten the screws on the clamp.
Center Pipe(1)
Kick Pad
Center Pipe(2)
Side Arm(L1)
[6]
[5]
Pillar(L2)
[10]
Tighten the screw
Pillar(L1)
[3]
Pillar(R1)
[3]
Pillar(L1)
[9]
[8]
Side Arm(R)
[7]
Pillar(R2)
Pillar(L2)
Pillar(R1)
Pillar(L1)
[11]
[14]
Side Arm(L2)
Tighten
the screw
Center Pipe(1)
[1]
[2]
Center Pipe(2)
[4]
[4]
Tighten the
screw
Tighten the screw
[4]
[4]
Tighten the
Tighten the screw
screw
[12]
[13]
Tighten the
screw
