ASSEMBLY INSTRUCTIONS
Watch your fingers when adjusting clamps. They may become pinched resulting in injury.
Be careful around pipe ends, inside the pipe and screw ends. Metal shavings, etc. May injure your fingers.

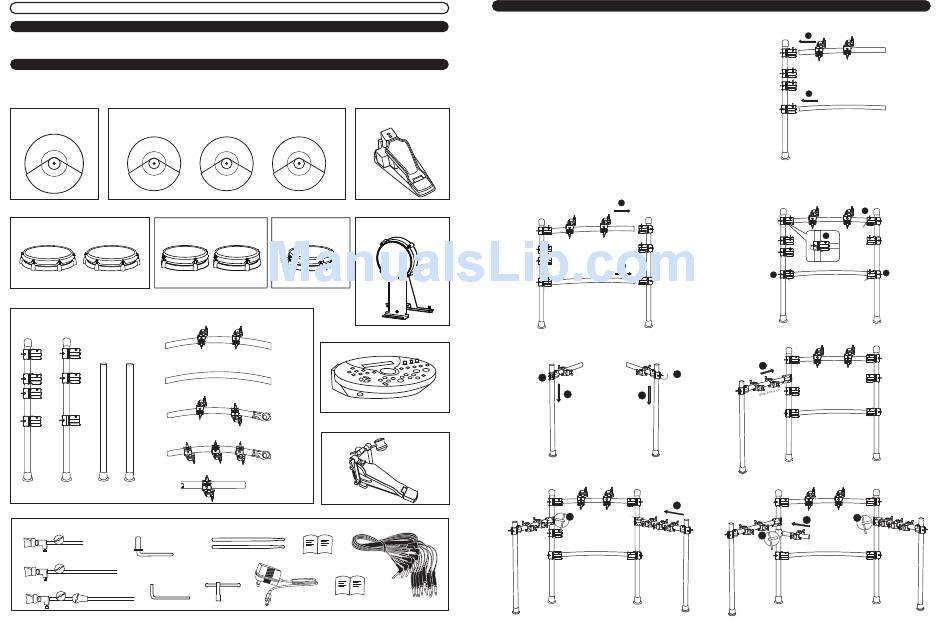

Inside This Package
Before assembly, please make sure that all the items listed below are present.
[14" CYMBAL PAD] BOX
[12" CYMBAL PADS] BOX
14" Cymbal Padx2
12" Cymbal Pads x 3
[10" DRUM PADS] BOX
[8" DRUM PADS] BOX
10" Drum Pad x 2
8" Drum PadX2
DRUM RACK
Pillar(L1)
Pillar(R1)
Pillar(L2)
Pillar(R2)
ACCESSORY BOX
Cymbal Holder (Short)
L-Rods of Pads X 5
Cymbal Holder (Long)
Hexagon Key (M5)
Boom Cymbal Arms X 2
Caution !
[HI-HAT PEDAL] BOX
Hi-Hat Control Pedal
[8" DRUM PAD] BOX
[
Kick Pad
8" Drum PadX1
Center Pipe(1)
[DRUM MODULE] BOX
Center Pipe(2)
Side Arm(L1)
[Kick Trigger] BOX
Side Arm(R)
Side Arm(L2)
Connection Cables X 11
Drumsticks X 2
Owner's Manual
AC Adapter
Instruction Manual
Drum Key
Assembly
Assembly
1 Setting up the frame of the digital drum set
[1] Attach the Center Pipe(1) to the clamp on the pillar(L1)
[2] Attach the Center Pipe(2) to the clamp on the pillar(L1)
[3] Attach the Center Pipe(1)(2) to the clamp on the pillar(R1)
[4] Using the wing nut tighten the screws on the clamp.
[5] Attach the side arm (L1) to the clamp on the pillar(L2)
[6] Tighten the screws on the clamp.
[7] Attach the side arm (R) to the clamp on the pillar(R2)
[8] Tighten the screws on the clamp.
[9] Attach the side arm(L1) to the clamp on the pillar (L1)
[10] Tighten the screws on the clamp.
[11] Attach the side arm(R) to the clamp on the pillar(R1)
[12] Tighten the screws on the clamp.
[13] Attach the side arm(L2) to the clamp on the pillar(L1)
[14] Tighten the screws on the clamp.
] BOX
Kick Pad
6
Pillar(L2)
3
Pillar(R1)
Center Pipe(1)
3
Center Pipe(2)
8
Side Arm(L1)
Side Arm(R)
5
7
Pillar(R2)
Pillar(L2)
Pillar(R1)
11
10
Tighten the screw
Side Arm( ) R
Pillar(L1)
Center Pipe(1)
1
2
Center Pipe(2)
4
4
Tighten the screw
4
4
Tighten the screw
4
4
Tighten the screw
Tighten the screw
Pillar(L1)
9
Pillar(L1)
12
13
Tighten the screw
14
Side Arm(L2)
Tighten
the screw
