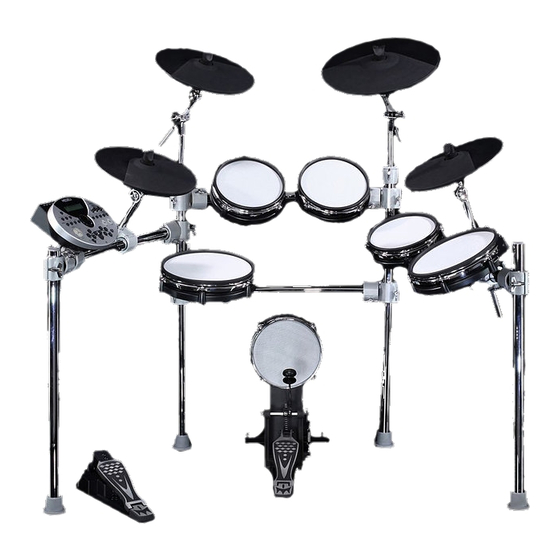

Medeli DD518DX - Drum Assembly Manual

Inside This Package

Watch your fingers when adjusting clamps. They may become pinched resulting in injury.
Be careful around pipe ends, inside the pipe and screw ends. Metal shavings, etc. May injure your fingers.

Before assembly, please make sure that all the items listed below are present.

ACCESSORY BOX

Assembly

1. Setting up the frame of the digital drum set


   1. Attach the Center Pipe(1) to the clamp on the pillar(L1)
   2. Attach the Center Pipe(2) to the clamp on the pillar(L1)
   3. Attach the Center Pipe(1)(2) to the clamp on the pillar(R1)
   4. Using the wing nut tighten the screws on the clamp.
   5. Attach the side arm (L1) to the clamp on the pillar(L2)
   6. Tighten the screws on the clamp.
   7. Attach the side arm (R) to the clamp on the pillar(R2)
   8. Tighten the screws on the clamp.
   9. Attach the side arm(L1) to the clamp on the pillar (L1)
   10. Tighten the screws on the clamp.
   11. Attach the side arm(R) to the clamp on the pillar(R1)
   12. Tighten the screws on the clamp.
   13. Attach the side arm(L2) to the clamp on the pillar(L1)
   14. Tighten the screws on the clamp.

Attaching pads to rack

1. Loosen L-rod wing nuts on drum pad clamp.


2. Insert textured plastic end of L-rod into tom clamp and tighten wing nuts. Repeat for each drum pad clamp.
3. Loosen wing nut on pad.


4. Attach pads to L-rods and tighten wing nuts. Repeat for each pad.


Attaching cymbals

1. Insert each boom cymbal arm into pillar(L1) and pillar(R1).
2. Insert cymbal holder(short) on the left side-arm cymbal clamp.
3. Insert cymbal holder(long) on the right side-arm cymbal clamp.
4. Remove wing nut and felt washer from cymbal tilter. Place cymbal pad on tilter assembly.
5. Re-attach the felt washer and wing nut. Tighten wing nut.
   Note: Cymbals are arranged as follows: 12" Hi-Hat on left-side short arm, 12" crash on left-side boom arm, 14" ride on right-side boom arm, 14" crash2 on right-side long arm.

Attaching module

Bass drum and Hi-Hat pedal
