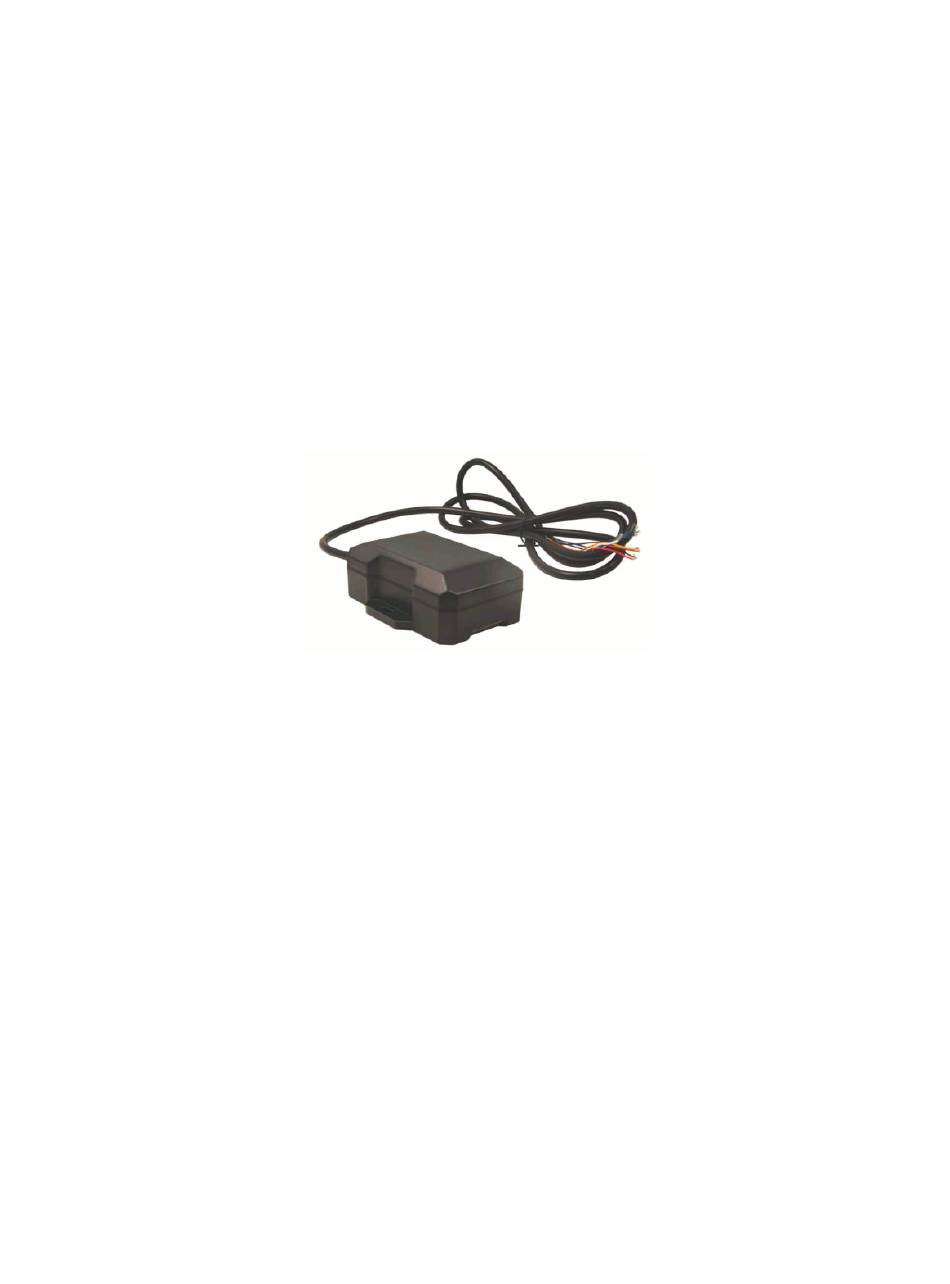

TTU-2830 Hardware & Installation Guide
Hardware and Installation
1 Introduction
Welcome to the TTU-2830™Hardware and Installation Guide. This manual is intended to give
you information on the basic setup and installation of the CalAmpTTU-2830™product(s)
including hardware descriptions, environmental specifications, wireless network overviews and
device installation.
1.1 About This Manual
The TTU-2830™is one of the most flexible economy mobile tracking hardware products
available. In order to accurately describe the functionality of these units we have broken
this manual into the following sections:
Hardware Overview – Describes the physical characteristics and interfaces of
•
the TTU-2830™.
Installation and Verification – Provides guidance for the installation of the
•
TTU-2830™in a vehicle and instructions on how to verify the installation is
performing adequately.
TTU-2830™
Guide
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CalAmp TTU-2830
Summary of Contents for CalAmp TTU-2830
- Page 1 Hardware and Installation Guide 1 Introduction Welcome to the TTU-2830™Hardware and Installation Guide. This manual is intended to give you information on the basic setup and installation of the CalAmpTTU-2830™product(s) including hardware descriptions, environmental specifications, wireless network overviews and device installation.
-
Page 2: System Overview
1.3 About the CalAmp Location Messaging Unit-TTU-2830™ The CalAmp Location and Messaging Unit-TTU-2830™(TTU-2830™) is a mobile device that resides in private, commercial or government vehicles. The TTU-2830™is a single box enclosure incorporating a processor, a GPS receiver, a wireless data modem, and a vehicle-rated power supply. -
Page 3: Hardware Overview
2.2.1 Wireless Data Network The Wireless Data Network provides the information bridge between the Actsoft servers and the TTU-2830™. Wireless data networks can take a variety of forms, such as cellular networks, satellite systems or local area networks. 2.2.3 Backend Software Backend software is provided by Actsoft. - Page 4 To ensure proper operation in such an environment, the TTU-2830™was subjected to standard tests defined by the Society of Automotive Engineers (SAE). The specific tests included temperature, shock, vibration, and EMI/EMC. These tests were performed by independent labs and documented in a detailed test report.
- Page 5 5.6 Mbps upload, 7.2 Mbps download GSM/GPRS Fallback 850/900/1800/1900 quad-band GPRS class 12, EDGE MCS1-MCS9 RoHS Compliant 3.2 Primary Connector The TTU-2830™uses 8 22AWG leads for its power and I/O connections. These leads are mapped as follows: Signal Input or Wire Description...
- Page 6 Serial Output Green\Black Output SER_IN Serial Input Blue\Black Input TTU-2830™Power and I/O leads 3.3 GPS Receiver The TTU-2830™’s GPS receiver has the following specifications: 50 channel GPS receiver • Accuracy: 2.5 meter CEP (with SA off) • -162dBm Tracking Sensitivity •...
- Page 7 350 messages. 3.5.1 Power State Input The TTU-2830™can detect if it’s using external power or if it’s using its internal back-up battering. If the TTU-2830™is using external power, this input will be in the Low state. If they have switched to the internal battery, then the input will register in the High state.
- Page 8 3.5.2 Battery Voltage Critical Input The TTU-2830™has a built in low battery threshold of 3500mV, which is tied to a discreet input. If the battery in the device reaches this limit a Low Battery event will be sent to Actsoft systems.
- Page 10 Sample Input Wiring 3.5.4 Status LEDs The TTU-2830™is equipped with two Status LEDs, one for GPS and one for COMM (wireless network status). The LEDs use the following blink patterns to indicate service: LED #1 (Comm LED - Orange) Definitions...
-
Page 11: Installing The Lmu
4 Installing the LMU The installation of the LMU and its antennas can have a major impact on the LMU’s performance. It is recommended that installers be familiar with the installation of GPS and cellular devices and are comfortable in a vehicle environment. 4.1 Preparing for Installation Be sure you have received all the LMU components you need. - Page 12 4.2.1 Size and Placement of LMU Unit The dimensions of the LMU should be taken into account, particularly when installing in a vehicle: Whether you intend to place the LMU under a seat or into a cavity behind the vehicle’s interior molded trim, be sure the LMU will fit before drilling any holes or running cable Be certain that the cables running to the LMU will not be bent or constricted.
- Page 13 LMU is operating properly. If at any time you should encounter a problem with the LMU, you may need to read the LEDs in order to troubleshoot the problem. If you cannot fix the LMU yourself, you will need to provide the LED information to CalAmp customer support.
-
Page 14: Installing The Lmu In A Vehicle
4.2.6 Preventing Accidental or Unauthorized Modification If you anticipate that fleet drivers or others might interfere with the LMUs once they are installed, take steps to be sure that it is not easy to disconnect the antenna wiring, remove the LMU from its power source, etc. Two common methods are the use of Tamper Proof Sealant or creation of PEG Script to detect power loss or GPS antenna disconnections. -
Page 15: Installation Verification
DO NOT connect the power cable to the LMU at this time. 5.3 Installation Verification In many cases it is desirable to verify that an installed TTU-2830™is working properly. That is, installers should verify that the GPS and communications functions of the TTU- 2830™are working properly before departing the installation site. -
Page 16: License Agreement
CalAmp for use in computer applications development or integration including the computer programs, libraries and related materials either contained on the media provided to you by or from CalAmp, or which you have received or downloaded electronically. “Application” means a compiled or executable software program created by Developer that uses some or all of the functionality of the Software. - Page 17 Applications deployed on that Server for which the license has been purchased as specified in a CalAmp License Certificate. The Software is licensed on a per Developer, and on a per User, per Application basis. In order to preserve and protect its rights under applicable law, CalAmp is not selling you ownership rights to Software or Documentation (owned by or licensed to CalAmp).
- Page 18 CalAmp, You May Not (1) Make derivative works including but not limited to translations, adaptations, arrangements or any other alteration (each of which would become the property of CalAmp or its licensors, as applicable) or make copies of the Software or Documentation except as permitted above; (2) Make copies of the Related Materials;...
- Page 19 (5%) between the number of Use Licenses granted and the number paid for, Customer shall pay all costs related to performing the audit in addition to remitting payment for those licenses granted in excess of those paid for as evidenced by a CalAmp License Certificate.
-
Page 20: Limited Warranty
CalAmp’s entire liability and your exclusive remedy as to defective media, Documentation or Related Material(s) shall be replacement of the media, Documentation or Related Material(s) by CalAmp. Each defective item, along with proof of license purchase and date, must be sent in a traceable manner to: CalAmpDataCom Inc., 1401 North Rice Ave. - Page 21 (2) Unless a written governing agreement signed by you and CalAmp exists, this License Agreement is the complete and exclusive statement of agreement between CalAmp and you regarding the licensing of the...
-
Page 22: Regulatory Information
The TTU-2830™complies with RF specifications when used near at a distance of 10 mm from your body. Ensurethat the device accessories, such as a device case and deviceholster, are not composed of metal components.
