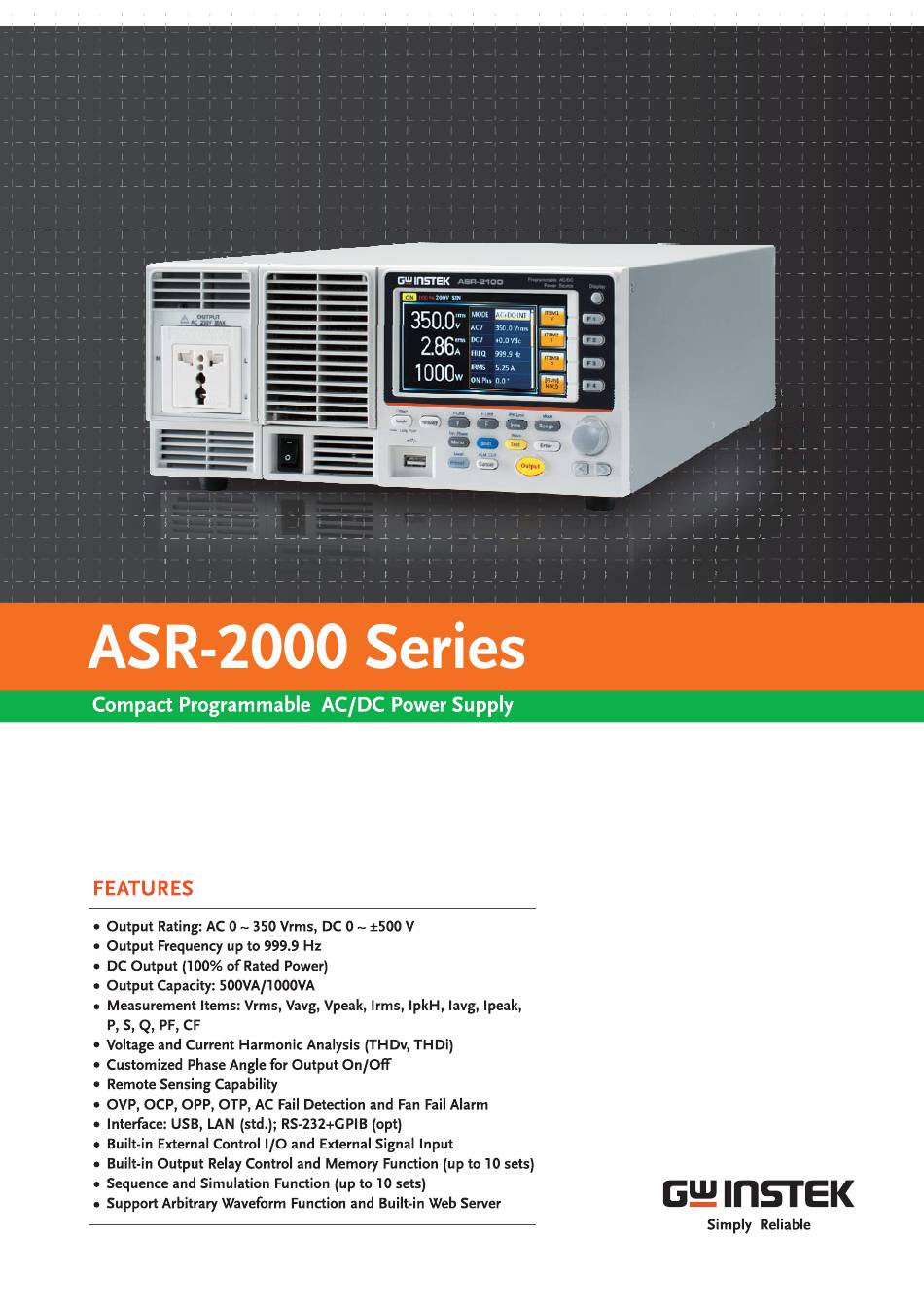

GW Instek ASR-2000 Series Manual
Compact programmable ac/dc power supply
Hide thumbs
Also See for ASR-2000 Series:
- User manual (224 pages) ,
- Programming manual (161 pages) ,
- Quick start manual (21 pages)
Advertisement
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GW Instek ASR-2000 Series
Summary of Contents for GW Instek ASR-2000 Series
-
Page 2: Panel Introduction

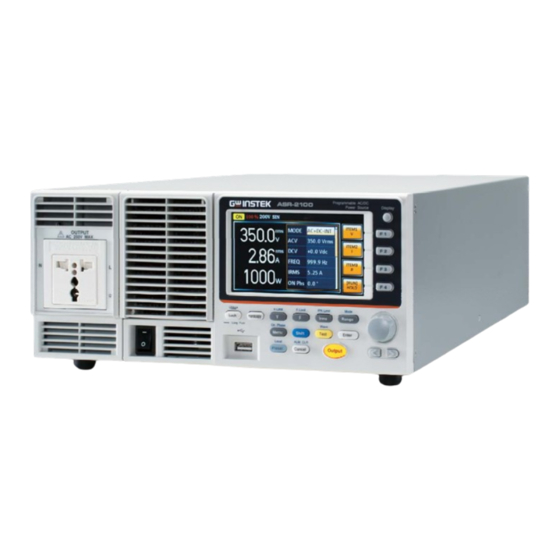

The front panel of the ASR-2050/2100 provides a universal socket or a European socket, which allows users to plug and use so as to save wiring time. The ASR-2050R/2100R is 3U height and 1/2 Rack width design, which is compatible with ATS assembly. The ASR-2000 series supports I/O interface and is equipped with USB, LAN, External I/O and optional RS-232C and GPIB. - Page 3 DC Output for ASR-2050/ASR-2050R ASR-2050/ASR-2050R ASR-2100/ASR-2100R ASR-2100/ASR-2100R The ASR-2000 series is an AC+DC power source that provides Max. Output Current Model Name Power Rating Max. Output Voltage rated power output not only at the AC output, but also at the DC...
-
Page 4: Simulate Mode
Slope Mode T, Ipk Measurement The ASR-2000 series can set the Slew Rate Mode to determine the rise time of the voltage according to the test requirements of the T, Ipk Hold is used to set the delay time after the output (1ms ~ DUT. -
Page 5: Specifications
SPECIFICATIONS ASR 2050/ASR-2050R ASR-2100/ASR-2100R INPUT RATING (AC) 100 Vac to 240 Vac 100 Vac to 240 Vac NORMINAL INPUT VOLTAGE 90 Vac to 264 Vac 90 Vac to 264 Vac INPUT VOLTAGE RANGE Single phase, Two-wire Single phase, Two-wire PHASE 47 Hz to 63 Hz 47 Hz to 63 Hz INPUT FREQUENCY RANGE... - Page 6 SPECIFICATIONS ASR 2050/ASR-2050R ASR-2100/ASR-2100R HARMONIC VOLTAGE Range Up to 40th order of the fundamental wave Up to 40th order of the fundamental wave EFFECTIVE VALUE (RMS) Full Scale 175 V / 350 V, 100% 175 V / 350 V, 100% PERCENT (%) Resolution 0.1 V, 0.01%...
