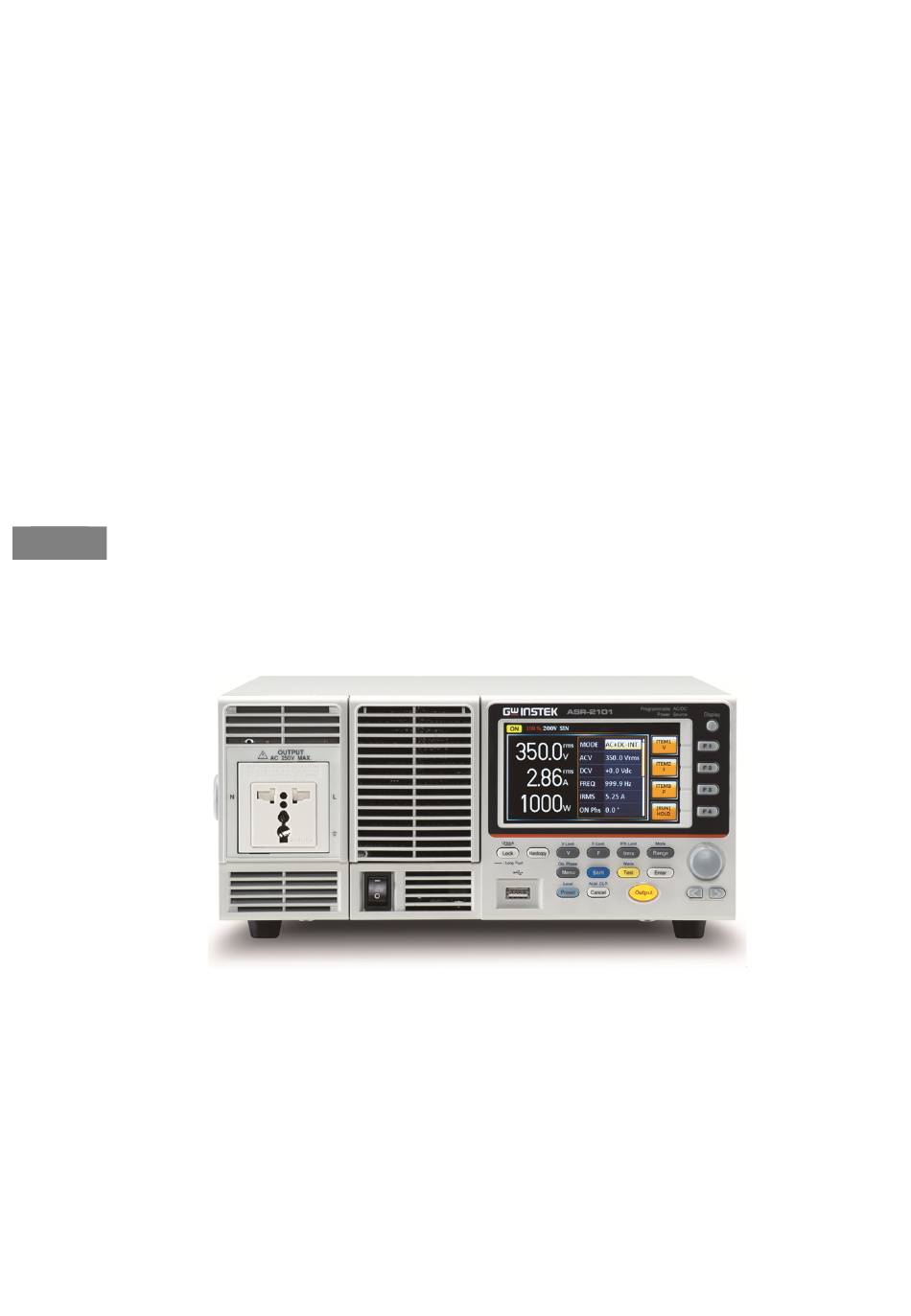

- Page 1 Programmable AC/DC Power Source ASR-2000 Series Quick Start Guid e...
-
Page 2: Afety Instructions
AFETY INSTRUCTIONS This section contains the basic safety symbols that may appear on the accompanying User Manual CD or on the instrument. For detailed safety instructions and precautions, please see the Safety Instructions chapter in the user manual CD. Safety Symbols These safety symbols may appear in the user manual or on the instrument. -
Page 3: Power Cord For The United Kingdom
Power Cord for the United Kingdom When using the instrument in the United Kingdom, make sure the power cord meets the following safety instructions. NOTE: This lead/appliance must only be wired by competent persons. WARNING: THIS APPLIANCE MUST BE EARTHED IMPORTANT: The wires in this lead are coloured in accordance with the following code: Green/ Yellow: Earth Blue:... - Page 4 Main Features Performance • Maximum AC output voltage is 350 Vrms • Maximum DC output voltage is 500 Vdc • Maximum output frequency is 999.9 Hz in AC mode • Supported AC+DC waveform application • DC full capacity output ability •...
- Page 5 • Built-in LAN, USB host and USB device interface Interface • External control I/O • External signal input • Factory option RS232 and GPIB interface...

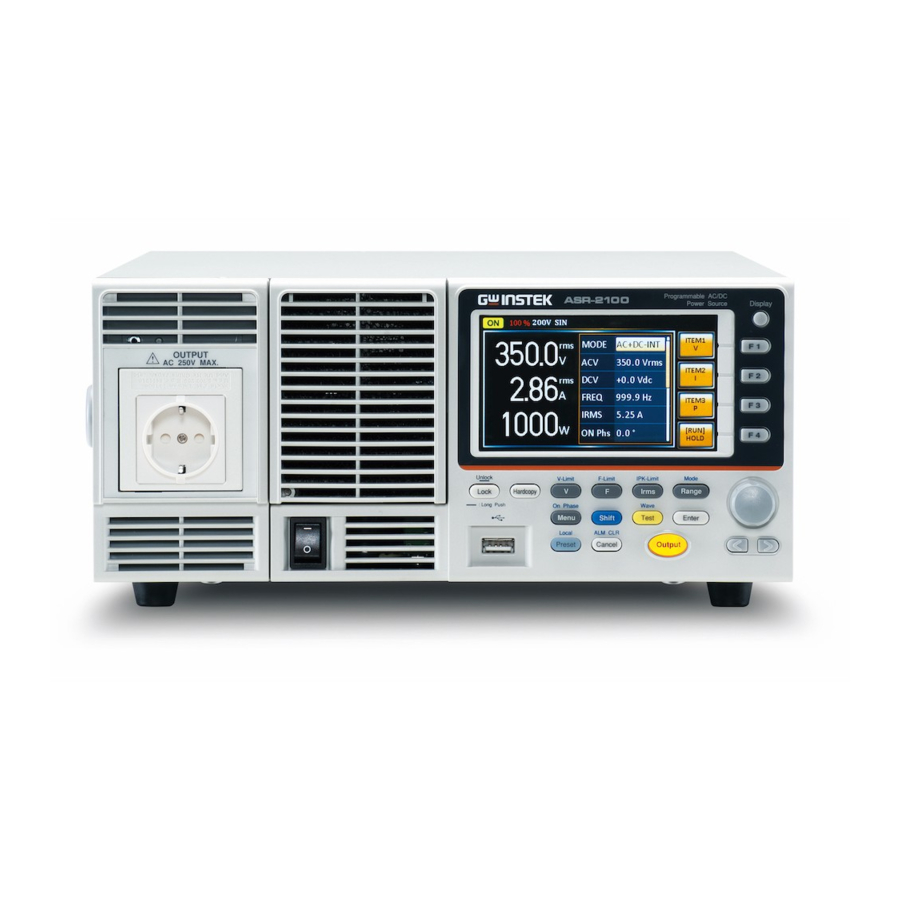

- Page 6 Appearance Front Panel Overview 19 18 17 Description 1. Power switch button 2. Lock/Unlock button 3. Hardcopy key 4. USB interface connector (A Type) 5. Menu key/On phase key 6. Preset key/Local mode key 7. Shift key 8. Cancel key/ALM CLR key 9.
- Page 7 Rear Panel Overview Description 1. Line input 2. Remote sensing input terminal 3. Exhaust fan 4. External I/O connector 5. USB interface connector (B Type) 6. Ethernet (LAN) connector 7. External signal input/ External 8. Output terminal synchronized signal input...
- Page 8 Power up 1. Connect the power cord to the socket on the rear panel. 2. Turn on the power switch on the front panel. The power supply takes around 15 seconds to fully turn on and shutdown. Note Do not turn the power on and off quickly. How to Use the Instrument Background The ASR-2000 AC power supplies generally use the...
- Page 9 Selected parameter Using the Arrow Use the Arrow keys to select a digit power and then use Keys and Scroll the scroll wheel to edit the value by that power. Wheel 1. Use the Arrow keys to move the cursor to the digit of the desired value.
- Page 10 PECIFICATIONS The specifications apply when the ASR-2000 series is powered on for more than 30 minutes Electrical specifications ASR-2050 ASR-2100 Model ASR-2050R ASR-2100R Input ratings (AC rms) Nominal input voltage 100 Vac to 240 Vac Input voltage range 90 Vac to 264 Vac...
- Page 11 Accuracy ±(0.5 % of set + 0.6 V / 1.2 V) Output phase Single phase, Two-wire Maximum 100 V 10 A current 200 V 2.5 A Maximum 100 V 20 A 40 A peak current 200 V 10 A 20 A Load power factor 0 to 1 (leading phase or lagging phase) Power capacity...
- Page 12 With respect to the capacitor-input rectifying load. Limited by the maximum current. For 45 Hz to 65 Hz, the rated output voltage, no load and the resistance load for the maximum current, and the operating temperature. In the case of the AC mode and output voltage setting to 0 V. ASR-2050 ASR-2100 Model...
- Page 13 Load regulation ±0.15% @45 - 65Hz ±0.5% @DC, all other frequencies (0 to 100%, via output terminal) Ripple noise 0.7 Vrms / 1.4 Vrms (TYP) Power source input voltage is 100 V, 120 V, or 230 V, no load, rated output.
- Page 14 ASR-2050 ASR-2100 Model ASR-2050R ASR-2100R Measured value display Note: All accuracy of the measurement function is indicated for 23 °C±5 °C. RMS, AVG Voltage Resolution 0.1 V value Accuracy For 45 Hz to 65 Hz and DC: ±(0.5 % of reading + 0.3 V / 0.6 V) For 40 Hz to 999.9 Hz: ±(0.7 % of reading + 0.9 V / 1.8 V)
- Page 15 Apparent Resolution 0.1 / 1 VA (VA) *5*6 Accuracy ±(2 % of reading + ±(2 % of reading + 0.5 VA) 1 VA) Reactive Resolution 0.1 / 1 VAR (VAR) *5*7 Accuracy ±(2 % of reading + ±(2 % of reading + 0.5 VAR) 1 VAR) Load power factor...
- Page 16 The voltage display is set to RMS in AC/AC+DC mode and AVG in DC mode. AC mode: For an output voltage of 17.5 V to 175 V / 35 V to 350 V and 23 °C ± 5 °C. DC mode: For an output voltage of 25 V to 250 V / 50 V to 500 V and 23 °C ±...
- Page 17 Optional 1 GPIB SCPI-1993, IEEE 488.2 compliant interface RS-232C Complies with the EIA-RS-232 specifications Insulation Between input and 500 Vdc, 30 MΩ or more resistance chassis, output and chassis, input and output Withstand Between input and 1500 Vac, 1 minute voltage chassis, output and chassis, input and...
- Page 18 Storage humidity 90 % RH or less (no condensation) range Altitude Up to 2000 m Dimensions (mm) ASR-2000 ASR-2000R 285(W)×124(H)×480( 213(W)×124(H)×4 D) (not including 80(D) (not protrusions) including protrusions) Weight ASR-2000 ASR-2000R Approx. 11.5 kg Approx. 10.5 kg Others Protections OCP, OTP, OPP, FAN Fail Display TFT-LCD, 4.3 inch...
- Page 19 Nondestructive ±10 V maximum input voltage Gain resolution 0.1 times Accuracy ±5 % (DC, or 45Hz ~ 65 Hz, gain is at initial value, with rate voltage output, no load) EXT: Output voltage (V) = External signal input (V) x Gain (V/V) Voltage Setting Signal Input (AC-VCA Mode) Specification Factory Default...
- Page 20 Gain resolution 0.1 times Accuracy ±5 % (DC, or 45Hz ~ 65 Hz, gain is at initial value, with rate voltage output, no load) ADD: Output voltage (V) = External signal input (V) x Gain (V/V) + Internal signal source setting (V) External Synchronous Signal or Line (AC+DC-SYNC, AC-SYNC) Specification Factory Default...
- Page 21 EC Declaration of Conformity We declare that the below mentioned product ASR-2050 , ASR-21 00 , ASR-2050R , ASR-21 00R satisfies all the technical relations application to the product within the scope of council: Directive: 2014/30/EU; 2014/35/EU; 2011/65/EU; 2012/19/EU. The above product is in conformity with the following standards or other normative documents: ◎...
