Safety Notice
The manufacturer is discharged from liability when damage
is caused by improper use or installation.
If any luminaire and/or accessory is subsequently modi-
fied, the persons responsible for the modification shall be
considered as manufacturer.
WE-EF LIGHTING USA
Tel +1 724 742 0030
info.usa@we-ef.com
we-ef.com
SLS400 / VLS400 LED_130122 / 006-1059
Technical specifications are subject to change.
© WE-EF 2022
WE-EF LIGHTING
Installation and
Maintenance Instructions for

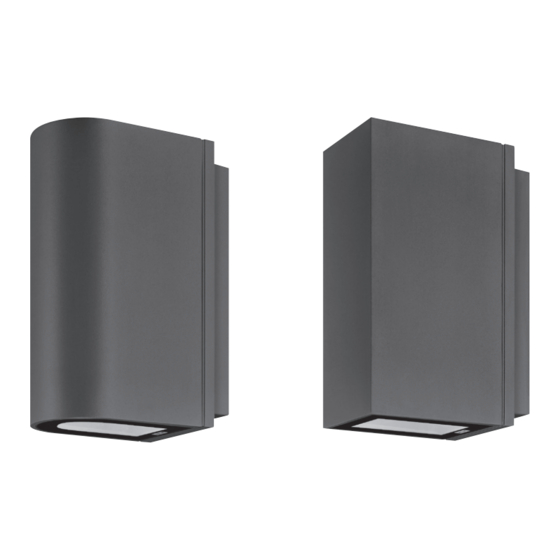

Wall luminaires
surface mounted
SLS400 LED Series
VLS400 LED Series
Advertisement
Table of Contents
Related Manuals for WE-EF SLS400 Series
Summary of Contents for WE-EF SLS400 Series
- Page 1 Installation and Maintenance Instructions for Wall luminaires surface mounted SLS400 LED Series VLS400 LED Series WE-EF LIGHTING USA Tel +1 724 742 0030 SLS400 / VLS400 LED_130122 / 006-1059 info.usa@we-ef.com Technical specifications are subject to change. we-ef.com © WE-EF 2022...
- Page 2 Class I, ta ≤ 40 °C SLS/VLS420 ..6 LED 12W / 2x 6 LED / 24W* ø 0.276 – 0.472 in * Nominal power, for latest data refer to www.we-ef.com 120- 277 V...
- Page 3 Fixture is intended to be mounted over a UL listed Drill relevant holes E and insert wall plugs F. junction box (not supplied by WE-EF), use provided The LED module can be replaced by qualified per- wall plate to cover boxes larger than the outer...
- Page 4 Individual connection Through wiring Torque Screw Torque max. 2,0 Nm (17.7 in-lb) max. 4,0 Nm (35.4 in-lb) max. 6,0 Nm (53.1 in-lb) max. 15,0 Nm (132.8 in-lb) max. 100,0 Nm (885.1 in-lb)
