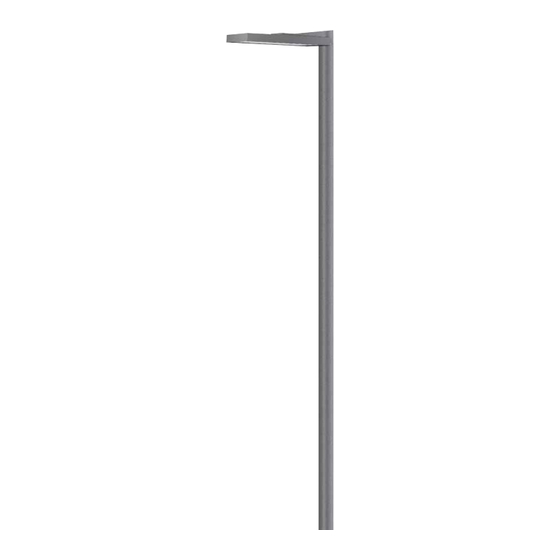

WE-EF VFL530 Installation And Maintenance Instructions Manual
Street and area lighting luminaire
Hide thumbs
Also See for VFL530:
Advertisement
Quick Links
Do not open during installation
This product is factory-sealed.
Refer to the instructions contained in this
document for details.
Surge Protection
This product features built-in surge protection circuitry in compliance
with applicable standards.
For comprehensive protection of a luminaire installation against lightning
and electrical surges, it is essential to cover mains supply and data input
lines at the distribution board level, by using respective primary (Type 1)
and secondary (Type 2) surge arrestors in compliance with EN61643-11/
IEC61643-1.
Warning
Ensure that all required surge protection measures are in place and
activated prior to luminaire installation. Also, disconnect luminaires
before operating high-power devices such as, for example, electrical
arc welders.
WE-EF LEUCHTEN
Installation and Maintenance
Instructions
Street and Area Lighting Luminaire
VFL530
VFL540
Advertisement
Related Manuals for WE-EF VFL530
Summary of Contents for WE-EF VFL530
- Page 1 WE-EF LEUCHTEN Installation and Maintenance Instructions Street and Area Lighting Luminaire VFL530 VFL540 Do not open during installation This product is factory-sealed. Refer to the instructions contained in this document for details. Surge Protection This product features built-in surge protection circuitry in compliance with applicable standards.
- Page 2 ø 76 x 80 ø 76 x 80 IP66, IK08, Class I, ta = 25°C Mounting height for VFL530/VFL540 3 - 6 Weight for VFL530 - 12 LED max 6.4 for VFL530 - 24 LED max 6.6 for VFL540 max 8.4 Windage area VFL530 0.040...
-
Page 3: Maintenance
Light Source Maintenance Apart from cleaning the product’s exterior surfaces, no special maintenance work is required. Do not use high-pressure cleaners. In case of component failure due to abnormal circumstances or at end of life, replacement must be carried Warning: Do not open luminaire while mains supply is switched on. For Wild-Light applications, refer to separate TO9281W instruction for Wild-Light motion box. -
Page 4: Installation Procedure
Installation Installation Procedure The product must be installed and maintained 2) Check that rating shown on luminaire label with latest building/construction and/or electrical conforms with mains electrical supply. regulations and relevant legislation. 3) Feed mains cable C into pole D, while setting luminaire assembly in position. - Page 5 Supply cable...
- Page 6 WE-EF SWITZERLAND WE-EF LIGHTING Switzerland United States of America Tel +41 22 752 49 94 Tel +1 724 742 0030 Fax +41 22 752 49 74 Fax +1 724 742 0035 info.switzerland@we-ef.com info.usa@we-ef.com TO9183W0823© WE-EF 2023 subject to change.
- Page 7 WE-EF LEUCHTEN Installation and Maintenance Instructions Post Mounted Luminaires Wild-Light motion box...
- Page 8 Box motion for Wild-Light SLC box motion...
- Page 9 Light Source Maintenance Apart from cleaning the product’s exterior surfaces, no special maintenance work is required. Do not use high-pressure cleaners. In case of component failure due to abnormal circumstances or at end of life, replacement must be carried Warning: Do not open product while mains supply is switched on.
- Page 10 Installation The product must be installed and maintained by a with latest building/construction and/or electrical regulations and relevant legislation. Warning: Notice: no longer be valid and shall become the full responsibility of the modifying person/organisation. Claims based on defects attributable to improper installation and/or application, and the consequences thereof, are excluded.
- Page 11 Installation Procedure for Wild-Light 1) Identify the right location for the motion box on the pole. Note that the sensor has to be directed downwards and be installed in a height between 0 and 6 m*. 0-6 m * Separate box for 6-12 m available on request 2) Prepare a cable entry hole in the pole.
- Page 12 3) Insert the cable of the motion box in the pole through the cable entry hole. 4) Install the motion box to the pole, e.g. by means of stainless steel bands (not provided by WE-EF).
- Page 13 Motion box DA DA DALI DALI 6) The configuration of the motion box is done via eSave SL configurator software and requires an eSave SL-Control USB stick. For further information, please contact WE-EF.
- Page 14 WE-EF LIGHTING Switzerland United States of America Tel +41 22 752 49 94 Tel +1 724 742 0030 Fax +41 22 752 49 74 Fax +1 724 742 0035 info.switzerland@we-ef.com info.usa@we-ef.com TO9281W0523 © WE-EF 2023 Technical specifications are subject to change.
