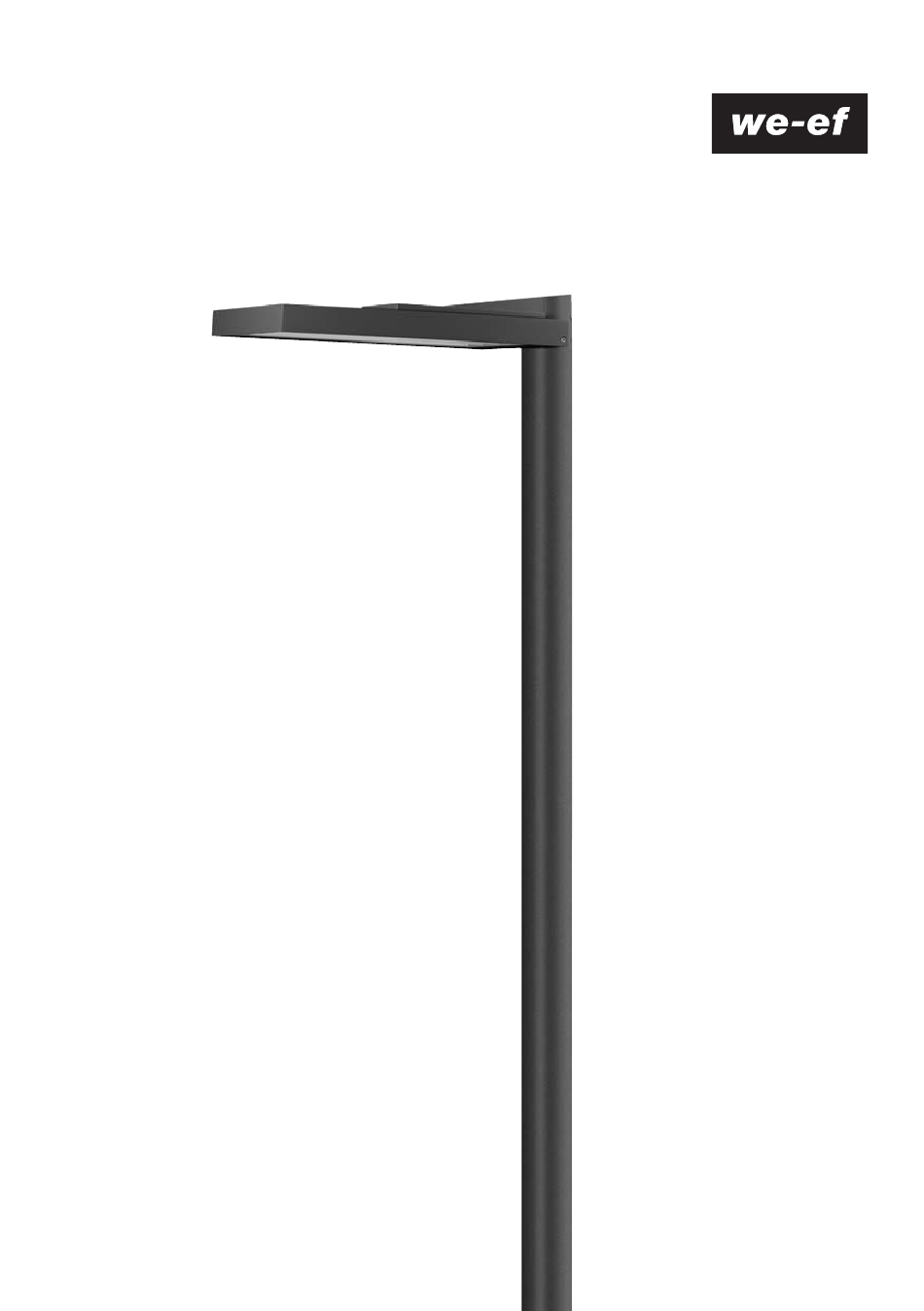

- Page 1 WE-EF LEUCHTEN Montage- und Wartungshinweise für Mastleuchte Serie VFL500 LED Installation and Maintenance Instructions for Post Mounted Luminaire VFL500 LED Series...
- Page 2 12 LED 24W / 24 LED 48W / 36 LED 72W / 42 LED 84W* * Nominalleistung, aktualisierte Daten siehe www.we-ef.com ø 76 x 80 * Nominal power, for latest data refer to www.we-ef.com Schutzart / Protection: IP66, IK08 Schutzklasse / Class I, II, ta = 25°C Lichtpunkthöhe / Mounting height: .
- Page 3 2) Cut cable to the corresponding height of the pole and 1) Spannungsfreiheit der Anschlussleitung herstellen. connect cable to the connector A (fig. 1-6). 2) Entsprechend der Masthöhe zugeschnittene Anschluss - WE-EF Eco Step Dim® Advanced and leitung an den Leitungsverbinder A anschließen not dimmable luminaires (Abb. 1-6).
- Page 4 Class II Phase (L1) to 1, Control Phase (L2) to 2, Neutralleiter (N) an 3 Neutral (N) to 3 1-10V / DALI / WE-EF Eco Step Dim® Dynamic 1-10V / DALI / WE-EF Eco Step Dim® Dynamic SKI Phase (L1) an 1, Neutralleiter (N) an N, Class I ...
- Page 6 Produkthinweis / Überspannungsschutz Product Information / Surge Protection Optional kann diese Leuchte (bei der Bestellung) mit einem Überspannungs- As an option, this luminaire can also be fitted with a surge protector of schutz Typ 2-3 ausgestattet werden. Die technischen Daten finden Sie in die- Type 2-3 (at the time of order).
- Page 7 Abb. 4 fig. 4 Abb. 5 fig. 5 Abb. 6 fig. 6 Abb. 7 fig. 7...
- Page 8 VFL500 LED_010417 / 006-1003 If any luminaire and/or accessory is subsequently modified, the Technische Änderungen vorbehalten. persons responsible for the modification shall be considered as Technical specifications are subject to change. manufacturer. © WE-EF 2017...
