RTSA04NU User´s Manual
E
d
i
t
i
o
n
E
d
i
t
i
o
n
LED
Color
USB
Green/Red
WPS
Green
Rear Panel

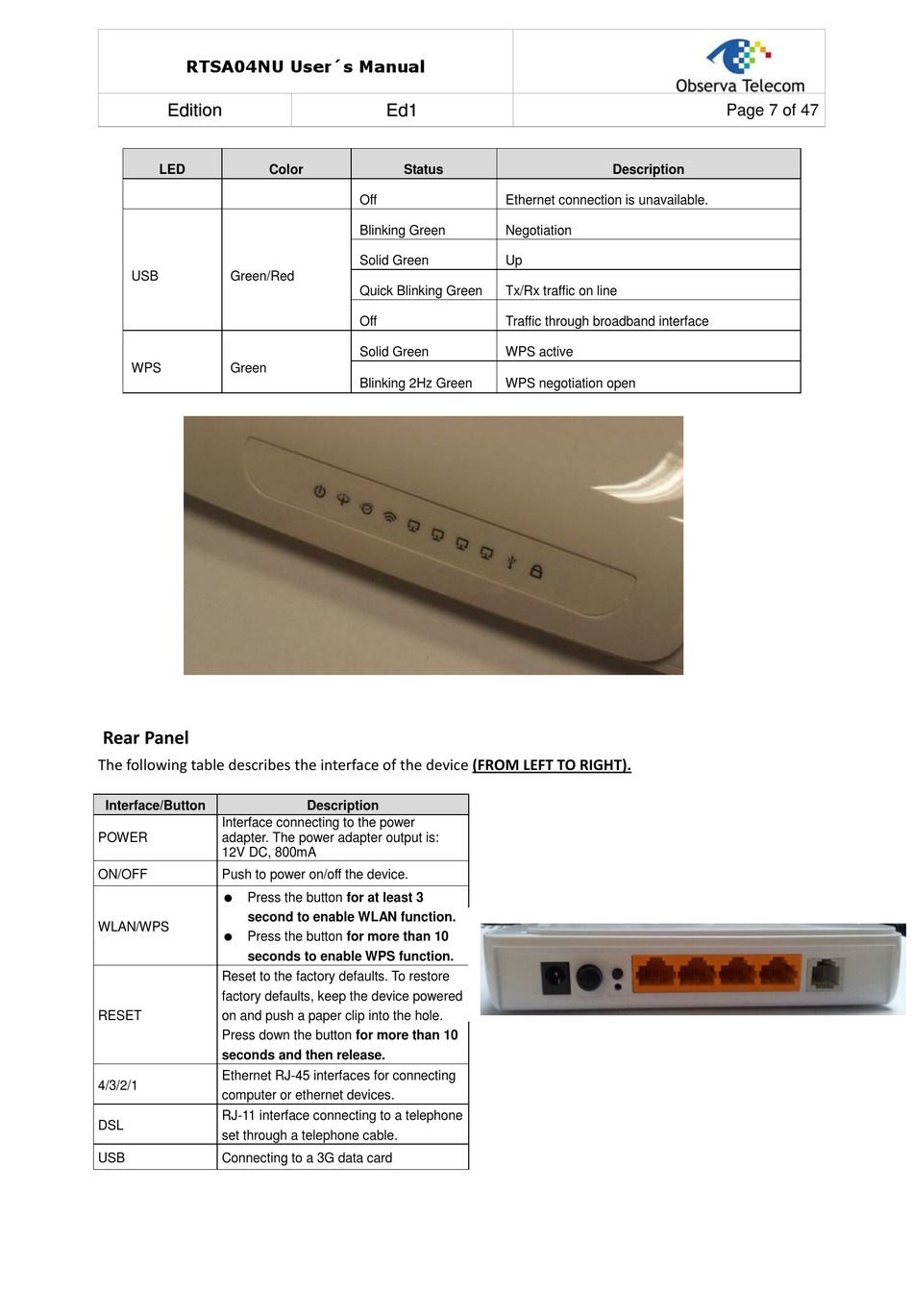

The following table describes the interface of the device (FROM LEFT TO RIGHT).
Interface/Button
Interface connecting to the power
POWER
adapter. The power adapter output is:
12V DC, 800mA
ON/OFF
Push to power on/off the device.
 Press the button for at least 3
second to enable WLAN function.
WLAN/WPS
 Press the button for more than 10
seconds to enable WPS function.
Reset to the factory defaults. To restore
factory defaults, keep the device powered
RESET
on and push a paper clip into the hole.
Press down the button for more than 10
seconds and then release.
Ethernet RJ-45 interfaces for connecting
4/3/2/1
computer or ethernet devices.
RJ-11 interface connecting to a telephone
DSL
set through a telephone cable.
USB
Connecting to a 3G data card
E
d
1
E
d
1
Status
Off
Blinking Green
Solid Green
Quick Blinking Green
Off
Solid Green
Blinking 2Hz Green
Description
Description
Ethernet connection is unavailable.
Negotiation
Up
Tx/Rx traffic on line
Traffic through broadband interface
WPS active
WPS negotiation open
Page 7 of 47
