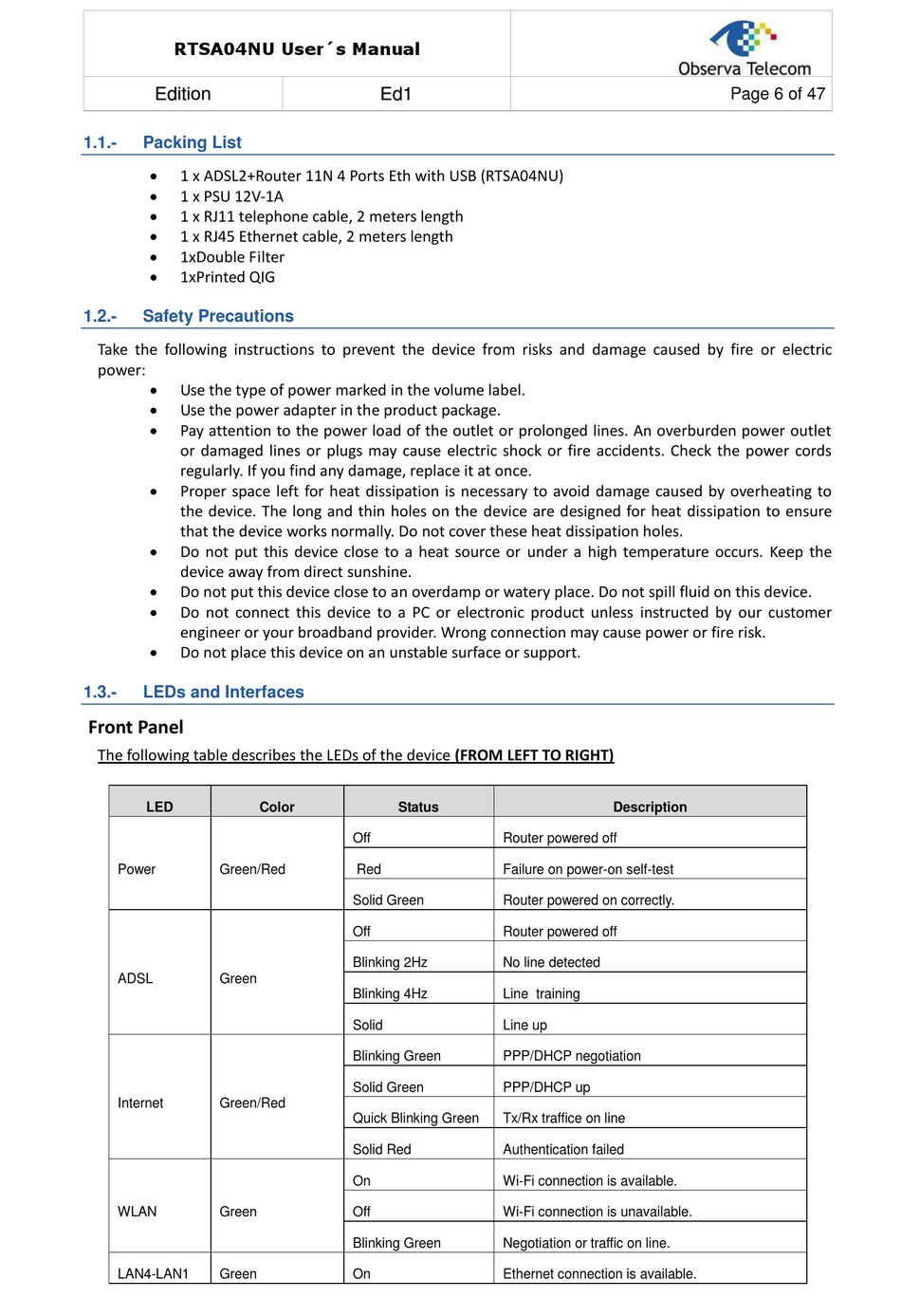

1.1.-

Packing List

1 x ADSL2+Router 11N 4 Ports Eth with USB (RTSA04NU)
1 x PSU 12V-1A
1 x RJ11 telephone cable, 2 meters length
1 x RJ45 Ethernet cable, 2 meters length
1xDouble Filter
1xPrinted QIG
1.2.-

Safety Precautions

Take the following instructions to prevent the device from risks and damage caused by fire or electric
power:
Use the type of power marked in the volume label.
Use the power adapter in the product package.
Pay attention to the power load of the outlet or prolonged lines. An overburden power outlet
or damaged lines or plugs may cause electric shock or fire accidents. Check the power cords
regularly. If you find any damage, replace it at once.
Proper space left for heat dissipation is necessary to avoid damage caused by overheating to
the device. The long and thin holes on the device are designed for heat dissipation to ensure
that the device works normally. Do not cover these heat dissipation holes.
Do not put this device close to a heat source or under a high temperature occurs. Keep the
device away from direct sunshine.
Do not put this device close to an overdamp or watery place. Do not spill fluid on this device.
Do not connect this device to a PC or electronic product unless instructed by our customer
engineer or your broadband provider. Wrong connection may cause power or fire risk.
Do not place this device on an unstable surface or support.
1.3.-

LEDs and Interfaces

Front Panel
The following table describes the LEDs of the device (FROM LEFT TO RIGHT)
LED
Power
Green/Red
ADSL
Green
Internet
Green/Red
WLAN
Green
LAN4-LAN1
Green
E
d
1
E
d
1
Color
Status
Off
Red
Solid Green
Off
Blinking 2Hz
Blinking 4Hz
Solid
Blinking Green
Solid Green
Quick Blinking Green
Solid Red
On
Off
Blinking Green
On
Description
Router powered off
Failure on power-on self-test
Router powered on correctly.
Router powered off
No line detected
Line training
Line up
PPP/DHCP negotiation
PPP/DHCP up
Tx/Rx traffice on line
Authentication failed
Wi-Fi connection is available.
Wi-Fi connection is unavailable.
Negotiation or traffic on line.
Ethernet connection is available.
