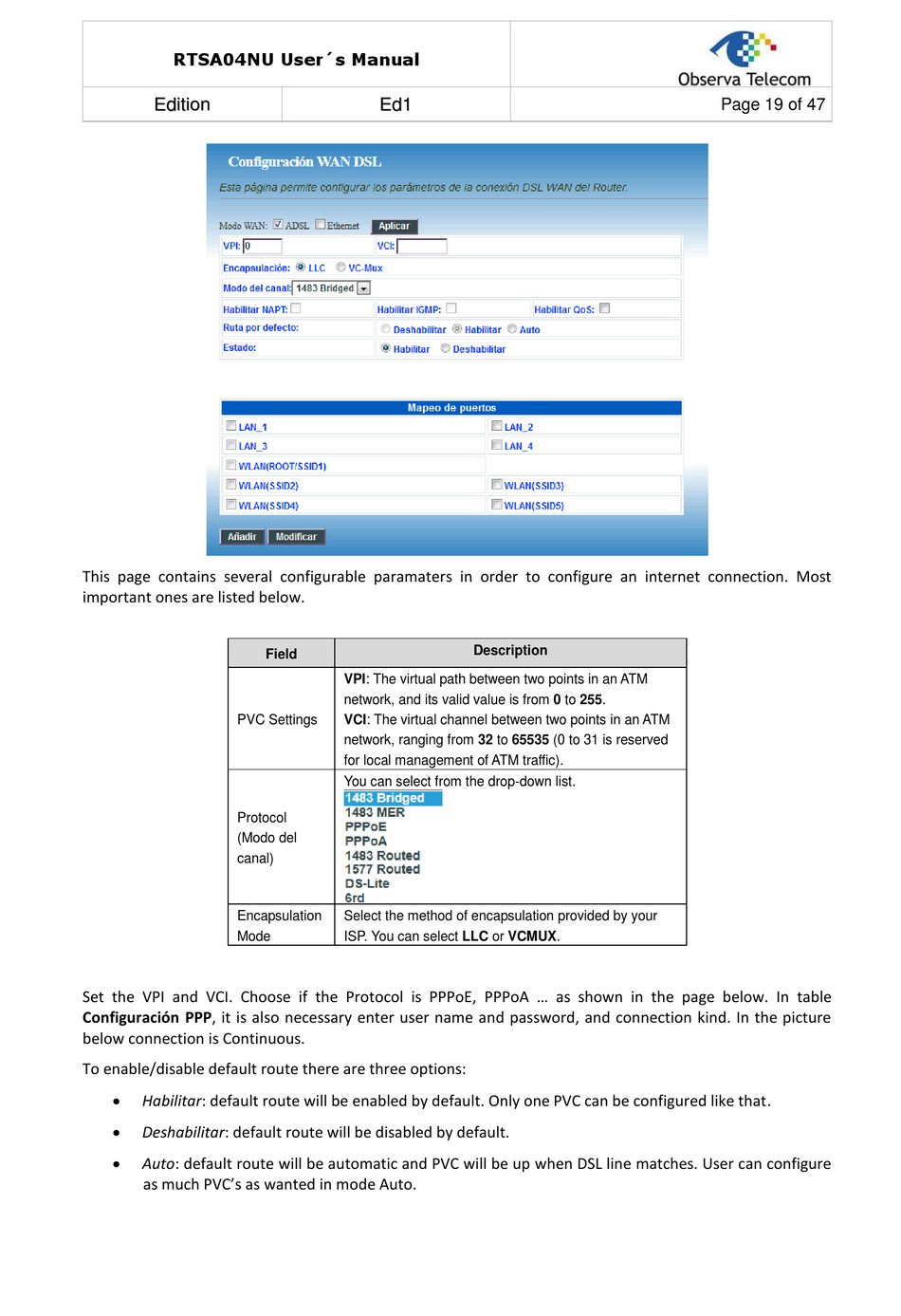

Observa Telecom RTSA04NU User Manual page 19

RTSA04NU User´s Manual
E d i t i o n
E d i t i o n
This page contains several configurable paramaters in order to configure an internet connection. Most
important ones are listed below.
PVC Settings
Protocol
(Modo del
canal)
Encapsulation
Mode
Set the VPI and VCI. Choose if the Protocol is PPPoE, PPPoA ... as shown in the page below. In table
Configuración PPP, it is also necessary enter user name and password, and connection kind. In the picture
below connection is Continuous.
To enable/disable default route there are three options:

Habilitar: default route will be enabled by default. Only one PVC can be configured like that.

Deshabilitar: default route will be disabled by default.

Auto: default route will be automatic and PVC will be up when DSL line matches. User can configure
as much PVC's as wanted in mode Auto.
E d 1
E d 1
Field
VPI: The virtual path between two points in an ATM
network, and its valid value is from 0 to 255.
VCI: The virtual channel between two points in an ATM
network, ranging from 32 to 65535 (0 to 31 is reserved
for local management of ATM traffic).
You can select from the drop-down list.
Select the method of encapsulation provided by your
ISP. You can select LLC or VCMUX.
Description
