Technical Support and E-Warranty Certificate
www.vevor.com/support

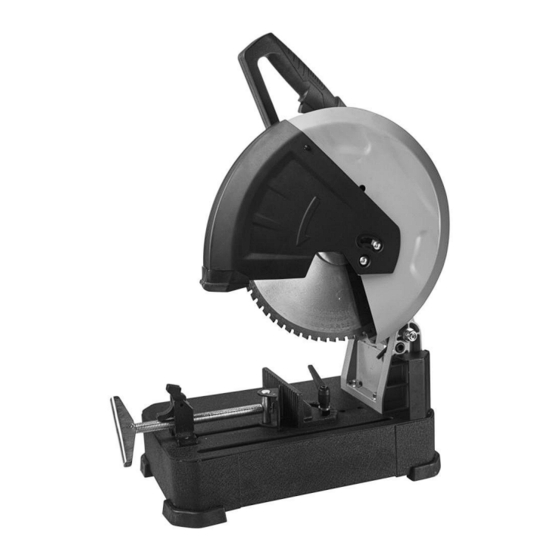

CUT-OFF MACHINE
USER MANUAL
We continue to be committed to offering tools at competitive prices. "Save Half", "Half Price",
or any other similar expressions used by us only represent an estimate of savings you might
benefit from buying certain tools with us compared to the major top brands and do not
necessarily mean to cover all categories of tools offered by us. You are kindly reminded to
verify carefully when placing an order with us if you are saving half in comparison with the top
major brands.
Advertisement
Table of Contents
Related Manuals for VEVOR J1G-ZB-355G-3
Summary of Contents for VEVOR J1G-ZB-355G-3
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support CUT-OFF MACHINE USER MANUAL We continue to be committed to offering tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us.
-
Page 3: Cut-Off Machine
CustomerService@vevor.com This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software... -
Page 4: Important Safety Instructions
1. Important safety instructions Warning - To reduce the risk of injury, user must read instructions manual carefully. Alternating current This symbol, placed before a safety comment, indicates a kind of precaution, warning, or danger. Ignoring this warning may lead to an accident. - Page 5 Please make sure to read the instructions carefully before using, and use according to the instructions, so as to give full play to the maximum benefit of our products, and avoid unnecessary occupational injury, our factory tools will be able to provide you with the best quality service.
- Page 6 f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. General Power Tool Safety Warnings - Personal safety a) Stay alert, watch what you are doing and use common sense when operating a power tool.
- Page 7 b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools.
- Page 8 1.4.This electric tool is only suitable for dry cutting. Electric shock may occur if moisture enters power tools. 1.5.If the power tool is still turning, never attempt to remove chips, metal shavings or similar debris from the cutting area. Be sure to retract the arm before turning off the power tool.
- Page 9 1.17.Do not touch the saw blade if it is not cooled after working. Saw blades can get very hot when working. 1.18.Check electrical wiring regularly. The damaged wires can only be left to the professional after-sales service personnel. Replace the damaged extension cable. In this way, the safety performance of power tools can be ensured 1.19.Take good care of unused power tools.
-
Page 10: Product Specification
3. Product specification Description Cut-off Machine Remark Model J1G-ZB-355G-3 Rating(s) AC120V 60Hz 2800W For US user Rating(s) AC220-240V 50Hz 2800W For European User Rotational Speed 1200rpm Dia:14inch Cutting Blade 66 Teeth Package Size 65×38.5×47cm G.W. 26.6kg 4. Maximum cutting capacity shape 0°... -
Page 11: Product Structure
5. Product Structure Note: Vise locking screws may be replaced by handles 6.Special note 6.1 When cutting, the locking handle must be tightened. The work-piece is easy to produce cold slice tooth collapse. 6.2 Cutting the work-piece by hand, although the efficiency is improved, it will affect the service life of the saw blade) Start the machine and wait until the speed is normal (2-3 seconds), and then proceed to the next balanced cutting. -
Page 12: Handle Operation
7. Category of Prohibited cutting hollow thin-wall stainless steel materials chromium plated metal materials metal materials with quenched hardness iron, steel wire and other special materials 8.Special shape workpiece cutting (clamping) method 9.Handle operation When adjusting the vise angle, turn the handle counterclockwise to release the vise, and turn the needle handle clockwise to lock the vise. - Page 13 10.Instructions 10.1 Removing and Installing the saw blade Note: Before removing or installing the saw blade, make sure that the tool switch is turned off and the powei plug is unplugged. To remove the saw blade, use a phillips screwdriver to turn counterclockwise to remove the small guard fixing plate screw, and then lift the transparent cover and fixing plate.
- Page 14 confirm whether the self-locking pin springs back 10.5 Press both buttons at the same time to start the machine, release both buttons to stop machine...
-
Page 15: Explosion View
11. Explosion View... - Page 16 12. BOM list of Explosion view BOM list item description item description Cross recessed step screw Self-locking spring M6*16 Movable cover Self-locking pin Hexagon screw M10X20 Bearing6202 small plate Rotor Cross Recessed pan head big palte screws ST5*65 saw blade stator inner Plate Bearing6201...
- Page 17 Hexagon lock nut M12 scaleplate Washerφ12 Lead pin Bearing6003 Small splint Horizontal pin Nut head big Spring Hexagon head bolt M10*16 limit screw Hexagon head bolt M10*40 ￠10.5 for flat gasket shield holder Cross Recessed pan head screws M5*12 Cotter pin φ5 bracket Vise screw Self-locking pin...
- Page 20 Technical Support and E-Warranty Certificate www.vevor.com/support...
