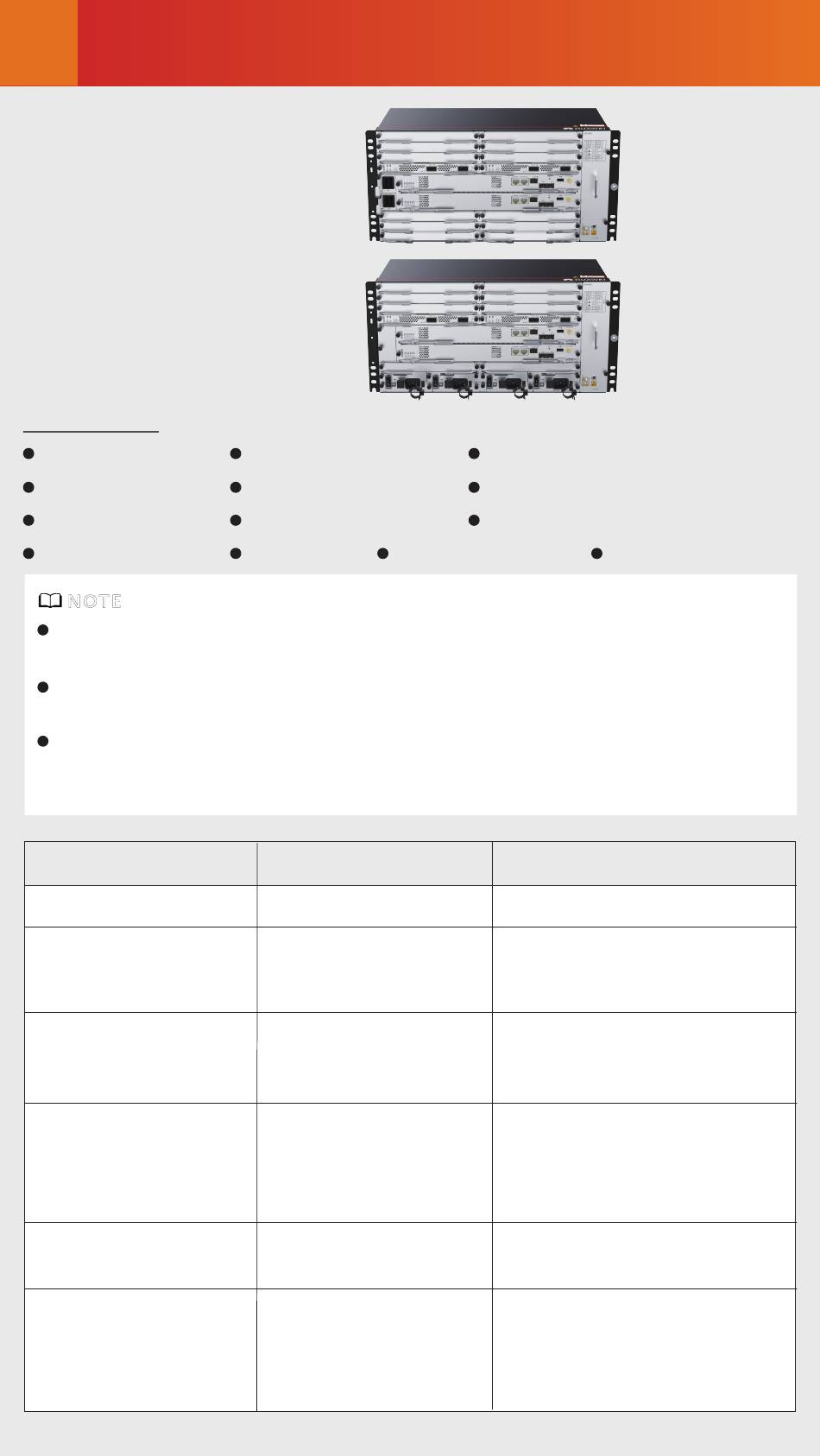

Device Overview - Huawei NetEngine 8000 M14 Quick Installation Manual

1

Device Overview

Packing list
Insulation tape
Label cable tie
Signal cable label
Power cable label
NOTE
DC and AC Chassis are installed in the same way, and DC Chassis is
used as an example here.
Figures in the document are for reference only and may be different
from actual devices.
The type and quantity of items in an installation accessory package
vary according to the device model. Check the delivered items
against the actual packing list.
Item
Chassis height[U]
Dimensions without
packaging(H x W x
D)[mm(in.)]
Weight without
packaging (base
configuration)[kg(lb)]
Rated input
voltage[V]
Input voltage
range [V]
Maximum input
current [A]
DC chassis
AC chassis
Corrugated pipe
ESD wrist strap
Panel screw (M6x12)
Serial cable
DC Chassis
5 U
222 mm x 442 mm x
220 mm (8.74 in. x
17.4 in. x 8.66 in.)
10.1 kg (22.27 lb)
-48 V/-60 V
-40 V to -72 V
NetEngine 8000 M14/
PTN 6900-2-M14/
NE40E-X2-M14: 60 A
Quick Installation Guide
Cable tie (300 x 3.6 mm)
Cable management frame
Fiber binding tape
5 U
222 mm x 442 mm x 220
mm (8.74 in. x 17.4 in. x
8.66 in.)
14.6 kg (32.19 lb)
PTN devices: 110 V/220 V
Other devices: 200 V to 240 V
/100 Vto 127 V dual live wires,
support 240V HVDC
90 V to 290 V
NetEngine 8000 M14/
PTN 6900-2-M14/NE40E
-X2-M14: 10 A
Floating nut (M6)
AC Chassis
