Ferroli GN2 N Operating, Installation And Maintenance Instructions

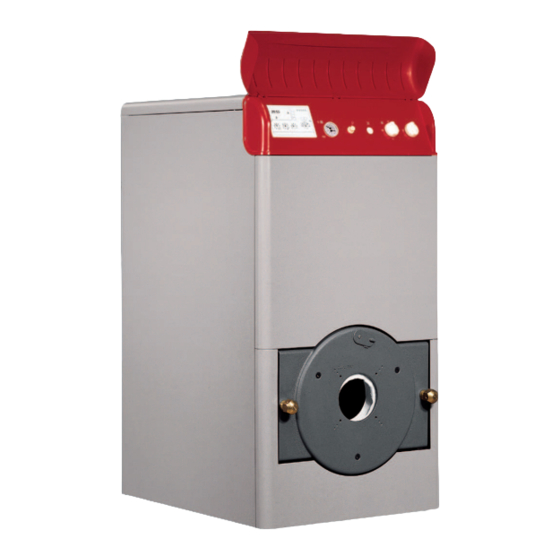

High-efficiency cast iron boiler for liquid fuels and/or gas
Hide thumbs
Also See for GN2 N:
Advertisement
Quick Links
ENGLISH
HIGH-EFFICIENCY CAST IRON BOILER FOR LIQUID FU-
ELS and/or GAS
OPERATING, INSTALLATION AND MAINTENANCE IN-
STRUCTIONS
ITALIANO
CALDAIA DI GHISA AD ALTO RENDIMENTO PER
COMBUSTIBILI LIQUIDI E/O GASSOSI
ISTRUZIONI PER L'USO L'INSTALLAZZIONE E LA
MANUTENZIONE
FRANÇAIS
CHAUDIÈRE en FONTE A HAUT RENDEMENT POUR
COMBUSTIBLES LIQUIDES et/ou GAZEUX
INSTRUCTIONS POUR L'INSTALLATION ET L'ENTRETIEN
DEUTSCH
HEIZKESSEL AUS GUSSEISEN MIT HOHEM WIRKUNGS-
GRAD FÜR FLÜSSIGE und/oder GASFÖRMIGE BRENN-
STOFFE
INSTALLATIONS-, BEDIENUNGS- UND WARTUNGSAN-
LEITUNGEN
ESPAÑOL
CALDERA DE FUNDICIÓN, DE ALTO RENDIMIENTO PARA
COMBUSTIBLES LÍQUIDOS y/o GASEOSOS
INSTRUCCIONES DE USO, INSTALACIÓN Y MANTENI-
MIENTO
PORTUGUÊS
CALDEIRA em FERRO FUNDIDO DE ALTO RENDIMENTO
PARA COMBUSTÍVEIS LÍQUIDOS e/ou GASOSOS
INSTRUÇÕES PARA O USO, INSTALAÇÃO E MANUTEN-
ÇÃO
NEDERLANDS
VERWARMINGSKETEL in GIETIJZER MET HOOG RENDE-
MENT VOOR VLOEIBARE en/of GASVORMIGE BRAND-
STOF
AANWIJZINGEN VOOR HET GEBRUIK, DE INSTALLATIE
EN HET ONDERHOUD
DANSK
STØBEJERNSFYR MED ØGET UDBYTTE TIL FLYDENDE
BRÆNDSTOF og/eller GAS
INSTRUKTIONER VEDRØRENDE BRUG, INSTALLATION
OG VEDLIGEHOLDELSE
TÜRKÇE
SIVI VE/VEYA GAZ YAKITLI YÜKSEK VER
SIVI VE/VEYA GAZ YAKITLI YÜKSEK VER
SIVI VE/VEYA GAZ YAKITLI YÜKSEK VER
SIVI VE/VEYA GAZ YAKITLI YÜKSEK VER
SIVI VE/VEYA GAZ YAKITLI YÜKSEK VER
D D D D D
L L L L L
ML
ML
ML
ML
ML
‹
‹
‹
Supplied By www.heating spares.co Tel. 0161 620 6677
GN2 N
KAZAN
KAZAN
KAZAN
KAZAN
KAZAN
ML
ML
ML
DÖKÜM
DÖKÜM
DÖKÜM
ML
ML
DÖKÜM
DÖKÜM
‹
‹
Advertisement
Related Manuals for Ferroli GN2 N
Summary of Contents for Ferroli GN2 N
- Page 1 GN2 N ENGLISH HIGH-EFFICIENCY CAST IRON BOILER FOR LIQUID FU- ELS and/or GAS OPERATING, INSTALLATION AND MAINTENANCE IN- STRUCTIONS ITALIANO CALDAIA DI GHISA AD ALTO RENDIMENTO PER COMBUSTIBILI LIQUIDI E/O GASSOSI ISTRUZIONI PER L’USO L’INSTALLAZZIONE E LA MANUTENZIONE FRANÇAIS CHAUDIÈRE en FONTE A HAUT RENDEMENT POUR COMBUSTIBLES LIQUIDES et/ou GAZEUX INSTRUCTIONS POUR L’INSTALLATION ET L’ENTRETIEN...
- Page 2 Carefully read this manual and keep it for future reference. The GN2 N is a high-efficiency heat generator for the production of hot water for heating purposes, suitable for operation with jet burners on gas or liquid fuel.
-
Page 3: Control Panel
GN2 N 1. OPERATING INSTRUCTIONS 1.1 Control panel Ready for electronic control unit Thermohydrometer Safety thermostat Control thermostat, 2 Stages Line switch “0 - I - TEST” Burner lockout indicator light fig. 1 1.2 Ignition Move the main switch 5 to position “I” to power the boiler and the burner. Refer to the burner manual for the operation of this device. -
Page 4: Water Connections
GN2 N 2.1 Water connections Make the water connections to the appliance according to the indications shown both next to each fitting and in Figure 2 of this booklet. The connections must be made in such a way that the pipes are not under stress. The safety valve must be fitted in the central heating circuit, as close as possible to the boiler, without there being any obstructions or on-off devices between the boiler and the valve. - Page 5 GN2 N Connect the panels together, using the screws 1, the washers 2 and the nuts 3, reinforcing the bottom parts using the blades 4 fastened with the screws 5. Loosen the nuts “A”. Insert the side fastening bracket “A” between nuts “A” and “B”.
-
Page 6: Service And Maintenance
All the adjustment, commissioning and maintenance operations must be performed by Qualified Personnel, in compliance with the standards in force. FERROLI S.p.A. declines all liability for damage to persons and/or things deriving from the tampering with the appliance by unqualified or unauthorised persons. -
Page 7: Technical Specifications
Model ∆t 10 ∆t 20 ∆p mbar GN2 N 05 98,8 GN2 N 06 117,4 GN2 N 07 136,9 GN2 N 08 156,5 GN2 N 09 176,0 1087 GN2 N 10 195,6...
