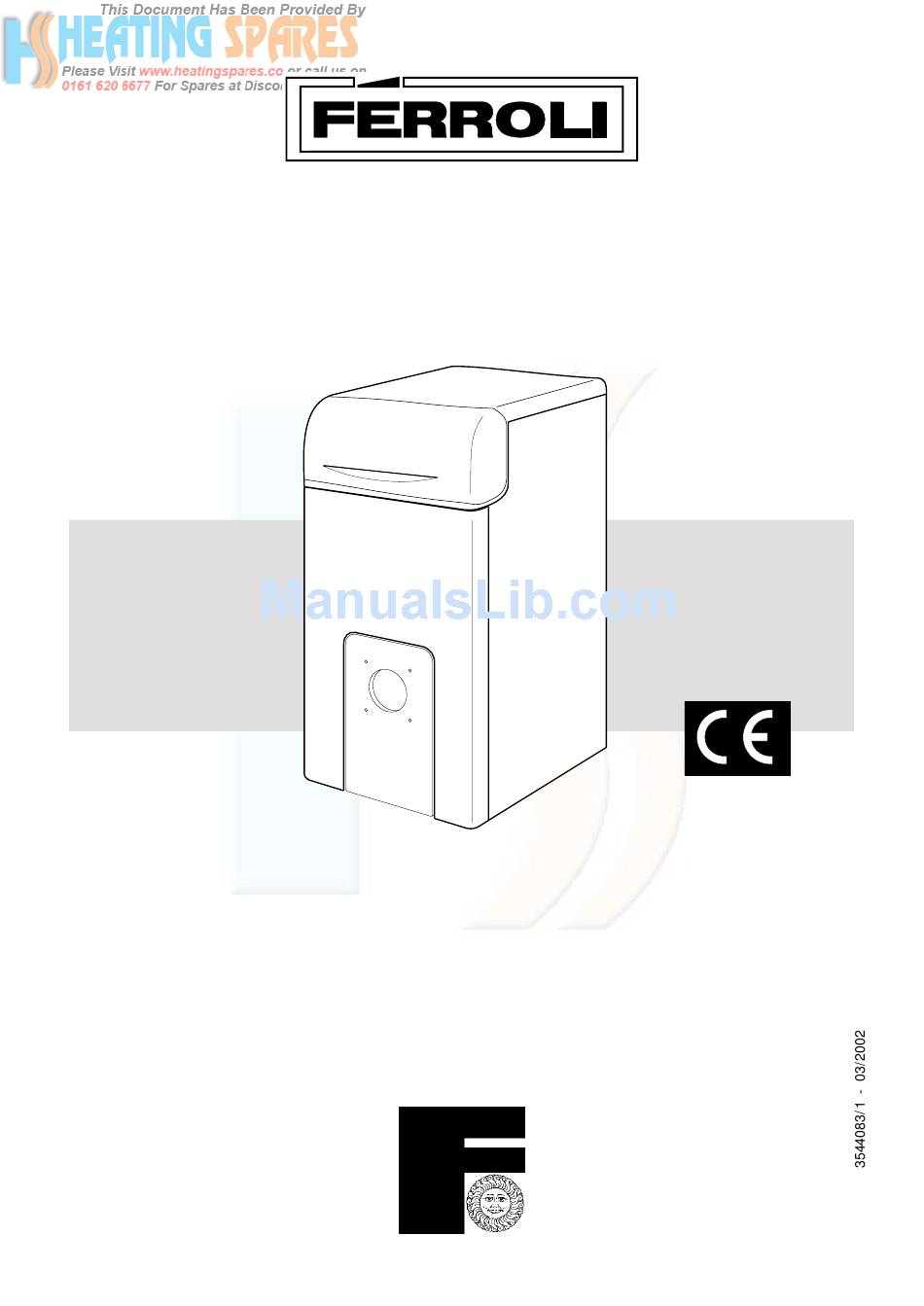

- Page 1 GN1 N CAST IRON HIGH EFFICIENCY SECTIONAL BOILER, FOR GAS/OIL FUELS Supplied By www.heating spares.co Tel. 0161 620 6677...
- Page 2 General instructions • Read the warnings given in this manual thoroughly. • To guarantee efficient operation, the appliance They provide important information for safe must be serviced once a year by an authorised installation, use and maintenance. service centre. • The appliance may not be used for purposes •...
-
Page 3: Table Of Contents
Index 1. Technical infor mations ........................... 4 2. Dimensions and technical data ......................5 3. Packing and shipment ........................... 6 4. Installation ............................. 7 5. Testing ..............................8 6. Service ..............................9 Supplied By www.heating spares.co Tel. 0161 620 6677... -
Page 4: Technical Informations
1. TECHNICAL INFORMATIONS 1.01 Introduction GN1 N boiler is a new heating generator with high efficiency, for central heating system as well sanitary hot water production suitable for burners using oil or gas. The boiler body is built by cast iron sections joined togheter by mean of biconical nipples and tie rods. Sections fins are especially developed to achieve the best efficiency of the boiler in order to save on fuel consumption. -
Page 5: Dimensions And Technical Data
(net) capacity output output element lenght dimension gas+oil gas+oil Max. Min. Ømm Max. Max. Min. Min. 16,4 GN1 N 02 28,6 25,8 23,3 18,2 15,0 260x310 16,4 GN1 N 03 38,7 34,9 18,2 15,0 260x310 35,4 GN1 N 04 57,3... -
Page 6: Packing And Shipment
2.02 Pressure drop (fig. 3) Pressure drops according to the boiler size are specified on the following diagram and refer to temperature difference between flow and return comprises between 10 and 20°C. Fig. 3 3. PACKING AND SHIPMENT Boiler is delivered complete assembled in a wood crate. Fig. -
Page 7: Installation
N.B. - Appliance must be earthed. It is recommended to connect the boiler to a good electric earth system. FERROLI could not be considered responsable for any kind of damage to Persons or things caused by failure of earthing the system. -
Page 8: Electrical Diagram
Electrical diagram 230V 50Hz Central heating pump Fig. 5b Overheat cut-off thermostat C.H. boiler thermostat Room thermostat (not fitted) Switch Test knob Auxiliary contact Boiler shut down warming Burner connector Note = Dotted lines indicate connections to be performed during installation 4.02 Hydraulic connections Boiler must be connected to the system according to boiler back part indications and those provided at fig. -
Page 9: Testing
5. TESTING 5.01 Before the first light of the boiler Before the first light of the boiler follow these check list: check the system is filled with water at the right pressure; check against any leakage of water fuel; check that the correct electric power is supplied to the unit; check size and perfect flue installation;... -
Page 10: Service
6. SERVICE The after sale service must be carried out only Qualified Plumbers. It is advise to service the boiler at least once a year, before the winter season. Check must include the boiler cleaning, the perfect operation of the controls and the burner. - Page 11 Supplied By www.heating spares.co Tel. 0161 620 6677...
- Page 12 ALL SPECIFICATIONS SUBJECT TO CHANGE Please note - to avoid incurring unnecessary expense, in the event of a boiler shut down, check this in not caused by lack of electricity supply, gas supply or low water pressure before calling our Customer Service Helpline. Lichfield Road, Branston Industrial Estate, Burton Upon Trent, Staffordshire DE14 3HD Tel.
