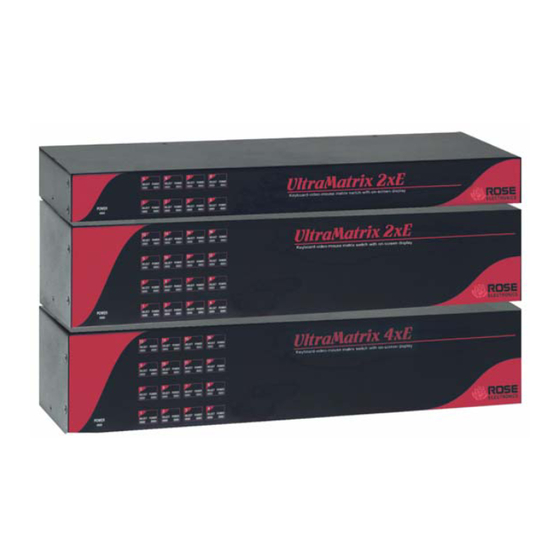

Rose electronics UltraMatrix EE2-1X16U/E Specifications

UltraMatrix E-Series

Features and Benefits

Powerful and expandable, yet economical
Security system with login and computer group lists
prevents unauthorized configuration and access
Video resolution up to 1600 x 1280
Multi-platform units have serial VT220 terminal emulation
for access to UNIX hosts, routers, and other serial devices
Advanced on-screen display (OSD) makes configuration
easy and informs you of status with user friendly
messages
Multi-lingual OSD – English, French, German, Spanish,
Italian, Portuguese
International keyboard support for European and Asian
languages
Status screen shows inter-box communication, current
connections, computer power, and other information
PC platform units support PS/2, PS/2 wheel, and USB
keyboard and mouse
Multi-Platform units also support SUN keyboard and
mouse
Supports HV sync, composite sync, and sync-on-green
video
Access and control routers, hubs and
other serial devices
Serial control allows KVM switching
from serial port commands
Free firmware upgrades for product
enhancements and new Software
features available at www.rose.com
Rackmount kits available in 19", 23", and 24"
sizes
Made in USA
2 – 4 user KVM matrix switch
Connects 1,000 computers to two, four, or more
user stations
Available in multi-platform or lower cost
PC version
Powerful OSD interface for configuration
and switching
Security features with login and computer
access control
The UltraMatrix™ "E" Advantage . . .
The UltraMatrix "E" series represents the latest in KVM matrix
switch technology, at an affordable price. The
E-series UltraMatrix allows you to connect multiple users to
as many as 1,000 computers. The UltraMatrix E-Series is
available in several sizes: 2x4, 2x8, 2x16, 4x8, 4x16, 1x8, and
1x16 and either PC or multi-platform.
The advanced distributed design of the UltraMatrix uses
networking communication technology to reduce cost,
eliminate single points of failure, and increase reliability. Use
the on-screen menus to configure, name, and select
computers, and show connections.
Units easily connect together with bus cables to make a
seamless and truly scalable KVM matrix solution. The
advanced distributed design of the UltraMatrix uses
networking communication technology to reduce cost,
eliminate single points of failure, and increase reliability.
With the multi-platform version you can connect almost any
computer with a PS/2, Sun, USB, or serial interface. For
example, access a Sun USB computer from a PC keyboard
and mouse, or other combinations. When accessing a serial
device the on-screen display becomes a color VT220 terminal.
Once you install the UltraMatrix its value increase since it has
flash memory. Firmware updates are available from
rose.com. This ensures your product will be compatible with
the newest products and technologies. Call us today for more
information on this and other Rose products.
Perfect for server rooms
W W W . R O S E . C O M
