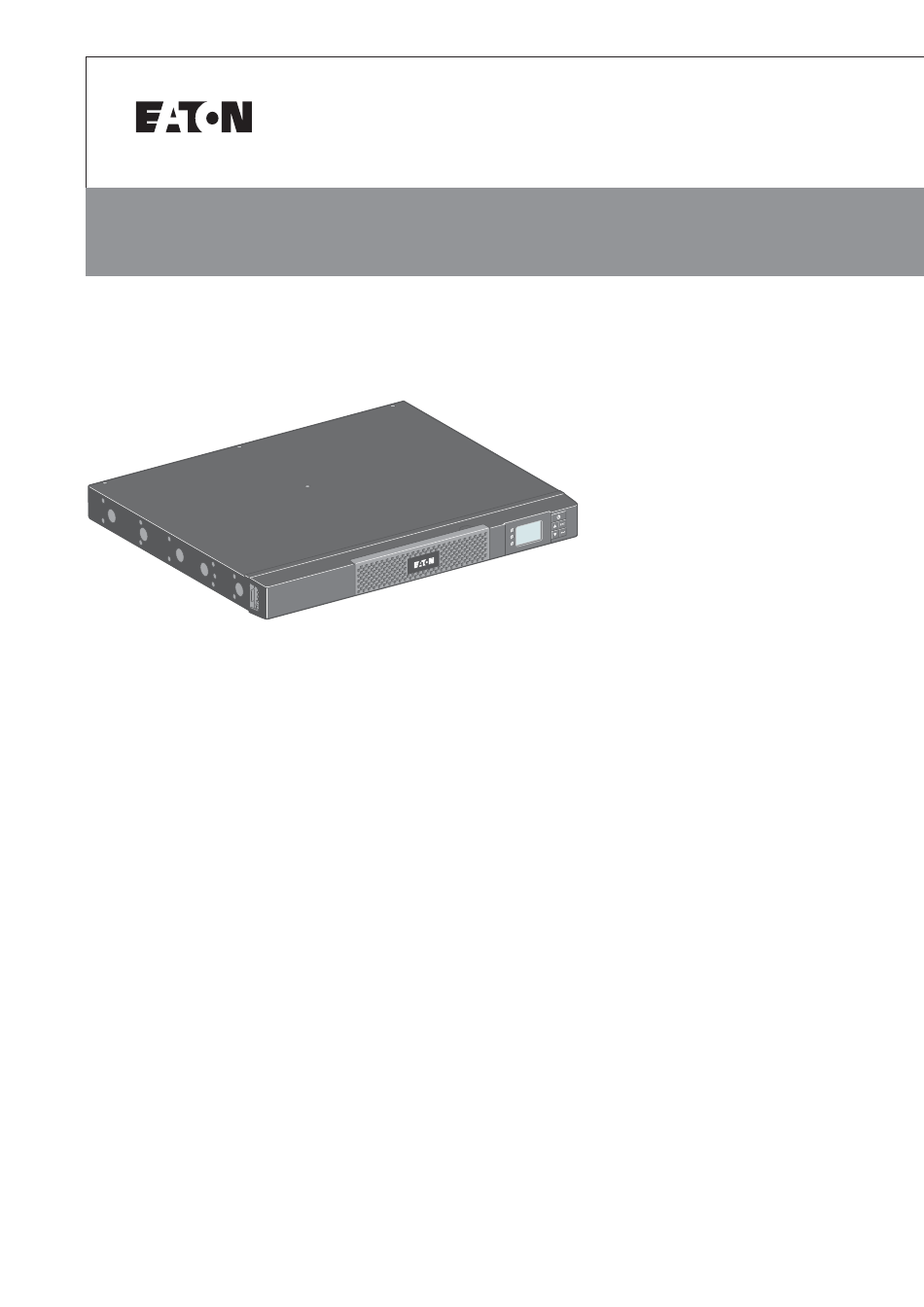

- Page 1 Installation and User Manual 1U Rack Model 5P 1550G RL Copyright © 2017 Eaton All rights reserved.
- Page 2 Page 2...
-
Page 3: Certification Standards
Supplier’s Declaration of Conformity 47 CFR § 2.1077 Compliance Information Unique Identifier: (EATON, 5P 1550G RL) Responsible Party - U.S. Contact information Applicant: Eaton Corporation... -
Page 4: Safety Of Persons
The system is not for use in a computer room AS DEFINED IN the standard for the Protection of Information Technology Equipment, ANSI/NFPA 75 (US installations only). Contact Eaton resellers to order a special battery kit, if needed to meet the ANSI/NFPA 75 requirement. Special Precautions •... -
Page 6: Environmental Protection
Before installing your 5P , please read the booklet presenting the safety instructions. Then follow the instructions in this manual. To discover the entire range of Eaton products and the options available for the 5P range, we invite you to visit our web site at www.eaton.com/powerquality or contact your Eaton representative. -
Page 7: Standard Installations
2. Presentation 2.1 Standard Installations Dimensions Description Weights Dimensions (inch/mm) (lb/kg) D x W x H 5P 1550G RL 42.7 / 19.4 21.8 x 17.2 x 1.7 / 554 x 438 x 43 Page 7... -
Page 8: Rear Panel
2. Presentation 2.2 Rear Panel Group 1: Programmable Outlets for Connection of Equipment Slot for Optional Communication Connector for ROO Card or RPO Control RS232 Group 2: Programmable Communication Ground Outlets for Connection Port Screw of Equipment Communication Port Socket for Outlets for Connection to Connection Equipment... -
Page 9: Control Panel
2. Presentation 2.3 Control Panel Alarm On/Off Indicator (red) Button Normal mode Normal mode 100 % 100 % 100 % 100 % On Battery Indicator Escape 720 W 720 W 10min 10min (yellow) 800VA 800VA Enter Efficiency: ~ 98% Efficiency: ~ 98% Power On Down Indicator (green) -
Page 10: Lcd Description
2. Presentation 2.4 LCD Description Operation Status Normal mode 100% 100% Load/Equipment Status 720W 10min Battery Status 800VA Efficiency: ~98% Efficiency and Load Group Information As default, or after 5 minutes of inactivity, the LCD displays the screen saver. The backlight LCD automatically dims after 10 minutes of inactivity. Press any button to restore the screen. Note: If any other indicator appears, see "Troubleshooting"... -
Page 11: Display Functions
2. Presentation 2.5 Display Functions Press the Enter ( ) button to activate the menu options. Use the two middle buttons ( ) to scroll through the menu structure. Press the Enter ( ) button to select an option. Press the button to cancel or return to the previous menu. - Page 12 2. Presentation Description Available Settings Default Settings Load segments [Disable] [0s] [1 s] [2 s]…[65354 s] Group 1: Disable - Auto shutdown During a power outage, Group 2: Disable delay authorizes UPS to turn off power to equipment connected to Group 1 and/or Group 2 outlets.
-
Page 13: Installation
3. Installation 3.1 Unpacking and Contents Check Two Connecting Cable Locking Systems Cables for the (1x6 Outlets) Protected Equipment 5P UPS Quick Start RS232 Communication Cable Safety Instructions USB Communication Cable Front Panel Parts 1U Rack Kit Packing materials must be disposed of in compliance with all local regulations concerning waste. Recycling symbols are printed on the packing materials to facilitate sorting. -
Page 14: Rack Installation
3. Installation 3.2 Rack Installation Follow Steps 1 through 4 for mounting the UPS on the rails. The rails and necessary hardware are supplied by Eaton. Page 14... - Page 15 3. Installation 3.3 Wall Mount Installation Follow Steps 1 and 2 for mounting the UPS on the wall. Page 15...
-
Page 16: Communication Ports
(6) to the USB (1) or RS232 (2) communication port on the UPS. The UPS can now communicate with Eaton power management software. Installation of the communication cards (optional, standard on the Network bundle models) It is not necessary to shutdown the UPS before installing a communication card. -
Page 17: Start-Up And Normal Operation
4.1 Start-up and Normal Operation To start the UPS: 1. Verify that the UPS power cord is plugged in. 2. The UPS front panel display illuminates and shows the Eaton logo. 3. Verify that the UPS status screen shows 4. Press the button on the UPS front panel for at least 2 seconds. -
Page 18: Return Of Ac Input Power
4. Operation Low-Battery Warning • indicators solid. • The audio alarm beeps every three seconds. The remaining battery power is low. Shut down all applications on the connected equipment because automatic UPS shutdown is imminent. End of Battery Backup Time •... -
Page 19: Maintenance
5. Maintenance 5.1 Troubleshooting UPS Operation Status Possible Cause Action Batteries disconnected The UPS does not recognize If the condition persists, contact the internal batteries. your service representative. The batteries are disconnected. Verify that all batteries are properly connected. If the condition persists, contact your service representative. -
Page 20: Battery-Module Replacement
Battery Module Replacement Carry out the above instructions in reverse order. • To ensure safety and high performance, use only batteries supplied by Eaton. • Take care to firmly press together the two parts of the connector during remounting. Page 20... -
Page 21: Technical Specifications
6. Appendices 6.1 Technical Specifications Transformer Filter "AVR" Charger Inverter Battery 5P 1550G RL Output Power @ 230V 1550 VA 1100W Output Power Capacity @ 208V 1395 VA 990W Output Power @ 200V 1395 VA 990W AC Input power • Rated input voltage Single phase 200-240V •... - Page 22 614-08148-01...
