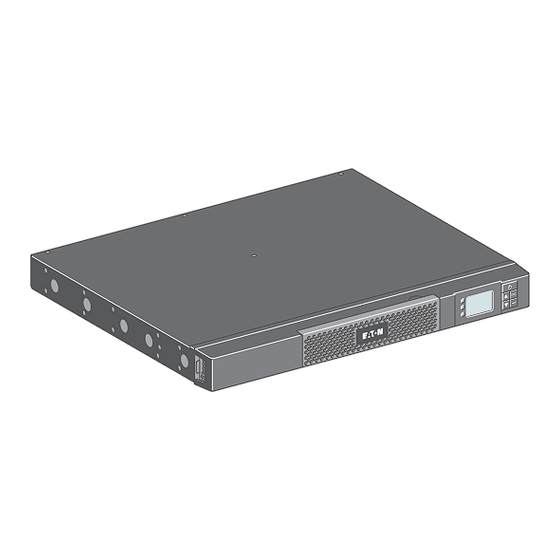

- Page 1 Installation and User Manual 1U Rack Model 5P 1500 RL Copyright © 2018 Eaton All rights reserved.
- Page 2 Page 2...
- Page 3 Supplier’s Declaration of Conformity 47 CFR § 2.1077 Compliance Information Unique Identifier: (EATON, 5P1500R-L) Responsible Party - U.S. Contact information Applicant: Eaton Corporation Address: 8609 Six Forks Road, Raleigh, NC 27615, USA Phone Number: 800-356-5794 FCC Compliance Statement (FCC part 15 subpart B CLASSB）...
- Page 4 The system is not for use in a computer room AS DEFINED IN the standard for the Protection of Information Technology Equipment, ANSI/NFPA 75 (US installations only). Contact Eaton resellers to order a special battery kit, if needed to meet the ANSI/NFPA 75 requirement. Special Precautions •...
-
Page 5: Table Of Contents
Table of Contents 1. Introduction ........................6 1.1 Environmental Protection ............................6 2. Presentation ........................7 2.1 Standard Installations ............................7 2.2 Rear Panel ................................7 2.3 Control Panel ................................8 2.4 LCD Description ..............................9 2.5 Display Functions ..............................10 2.6 User Settings ................................10 3. Installation ........................12 3.1 Unpacking and Contents Check ...........................12 3.2 Rack Installation ..............................12 3.3 Wall Mount Installation ............................13... -
Page 6: Introduction
Before installing your 5P , please read the booklet presenting the safety instructions. Then follow the instructions in this manual. To discover the entire range of Eaton products and the options available for the 5P range, we invite you to visit our web site at www.eaton.com/powerquality or contact your Eaton representative. -
Page 7: Presentation
2.1 Standard Installations Dimensions Description Weights Dimensions (inch/mm) (lb/kg) D x W x H 5P 1500 RL 21.8 x 17.2 x 1.7 / 554 x 438 x 43 35.9/16.3 2.2 Rear Panel Group 1: programmable outlets for connection of equipment... -
Page 8: Control Panel
2. Presentation On/Off Power On Button Indicator (green) Normal mode Normal mode 100 % 100 % 100 % 100 % On Battery Indicator Escape 720 W 720 W 10min 10min (yellow) 800VA 800VA Enter Efficiency: ~ 98% Efficiency: ~ 98% Down Alarm Indicator (red) -
Page 9: Lcd Description
2. Presentation 2.4 LCD Description Operation Status Normal mode 100% 100% Load/Equipment Status 720W 10min Battery Status 800VA Efficiency: ~98% Efficiency and Load Group Information As default, or after 5 minutes of inactivity, the LCD displays the screen saver. The backlight LCD automatically dims after 10 minutes of inactivity. Press any button to restore the screen. Note: If any other indicator appears, see "Troubleshooting"... -
Page 10: Display Functions
2. Presentation 2.5 Display Functions Press the Enter ( ) button to activate the menu options. Use the two middle buttons ( ) to scroll through the menu structure. Press the Enter ( ) button to select an option. Press the button to cancel or return to the previous menu. - Page 11 2. Presentation Description Available Settings Default Settings Load segments [Disable] [0s] [1 s] [2 s]…[65354 s] Group 1: Disable - Auto shutdown During a power outage, Group 2: Disable delay authorizes UPS to turn off power to equipment connected to Group 1 and/or Group 2 outlets.
-
Page 12: Installation
Packing materials must be disposed of in compliance with all local regulations concerning waste. Recycling symbols are printed on the packing materials to facilitate sorting. 3.2 Rack Installation Follow Steps 1 through 4 for mounting the UPS on the rails. The rails and necessary hardware are supplied by Eaton. Page 12... -
Page 13: Wall Mount Installation
3. Installation 3.3 Wall Mount Installation Follow Steps 1 and 2 for mounting the UPS on the wall. Allow room for connected cables. Page 13... -
Page 14: Communication Ports
(5) or (6) to the USB (1) or RS232 (2) communication port on the UPS. The UPS can now communicate with Eaton power management software. Installation of the communication cards (optional) It is not necessary to shutdown the UPS before installing a communication card. -
Page 15: Operation
4.1 Start-up and Normal Operation To start the UPS: 1. Verify that the UPS power cord is plugged in. 2. The UPS front panel display illuminates and shows the Eaton logo. 3. Verify that the UPS status screen shows 4. Press the button on the UPS front panel for at least 2 seconds. -
Page 16: Return Of Ac Input Power
4. Operation Low-Battery Warning • indicators solid. • The audio alarm beeps every three seconds. The remaining battery power is low. Shut down all applications on the connected equipment because automatic UPS shutdown is imminent. End of Battery Backup Time •... -
Page 17: Maintenance
5. Maintenance UPS Operation Status Possible Cause Action Batteries disconnected The UPS does not recognize If the condition persists, contact the internal batteries. your service representative. The batteries are disconnected. Verify that all batteries are properly connected. If the condition persists, contact your service representative. -
Page 18: Battery-Module Replacement
Battery Module Replacement Carry out the above instructions in reverse order. • To ensure safety and high performance, use only batteries supplied by Eaton. • Take care to firmly press together the two parts of the connector during remounting. Page 18... -
Page 19: Appendices
6. Appendices 6.1 Technical Specifications Transformer Filter "AVR" Charger Inverter Battery 5P 1500 RL Output Power @ 120V 1440 VA 1100W Output Power Capacity @ 125V 1440 VA 1100W Output Power @ 100V 1080 VA 825W AC Input power • Rated input voltage Single phase 100-125V •... - Page 20 614-40000-00...
