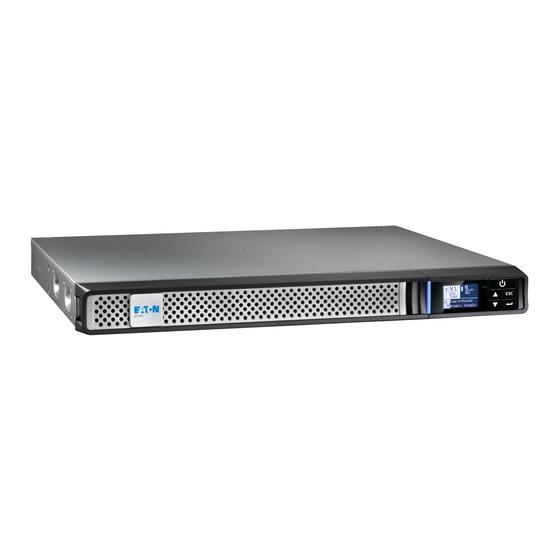

Eaton 5P Rack Gen2 Advanced User's Manual
Hide thumbs
Also See for 5P Rack Gen2:
- Advanced user's manual (34 pages) ,
- Advanced user's manual (33 pages)
Subscribe to Our Youtube Channel
Related Manuals for Eaton 5P Rack Gen2
Summary of Contents for Eaton 5P Rack Gen2
- Page 1 Eaton 5P Rack Gen2 Advanced User Guide 5P650IRG2 5P650IRNG2 5P850IRG2 5P850IRNG2 5P1150IRG2 5P1150IRNG2 5P1550IRG2 5P1550IRNG2 Copyright © 2024 EATON All rights reserved. DSD-5P2208 English...
-
Page 2: Table Of Contents
5.4 User settings............................12 5.5 Advanced Battery Management + ......................18 5.6 Communication ports........................... 18 5.7 UPS remote control functions......................19 5.8 Eaton Intelligent Power Software suite ....................20 5.9 Cybersecurity ............................20 Operation ........................20 6.1 Start-up and normal operation ......................20 6.2 Starting the UPS on battery........................ - Page 3 7.1 Equipment care............................. 22 7.2 Storing the equipment.......................... 22 7.3 When to replace batteries........................23 7.4 Replacing batteries ..........................23 7.5 Recycling the used equipment ......................25 Troubleshooting......................26 8.1 Silencing the alarm ..........................26 8.2 Service and support ..........................26 Specification and technical characteristics..............
-
Page 4: Special Symbols
1 Special symbols The following are examples of symbols used on the UPS or accessories to alert you to important information: DANGER: Dangerous voltage levels are present within the UPS. The UPS has its own internal power source (the battery). Consequently, the power outlets may be energized even if the UPS is disconnected from the AC power source. -
Page 5: Introduction
Thank you for selecting an Eaton 5P Gen2 product to protect your electrical equipment. The Eaton 5P Gen2 range has been designed with the utmost care. We recommend that you take the time to read this advanced user guide to take full advantage of the many features of your UPS (Uninterruptible Power System). -
Page 6: Benefits
- causing hours of lost productivity and expensive repairs. With the Eaton 5P Gen2, you can safely eliminate the effects of power disturbances and guard the integrity of your equipment. Providing outstanding performance and reliability, the Eaton 5P Gen2’s unique benefits include: •... -
Page 7: Presentation
3 Presentation 3.1 Weights and dimensions Description (UPS) Dimensions (mm / inch) D x W x H Weights (kg / lbs) 5P650IRG2 8.6 / 19 361 x 438 x 43.2 / 14.2 x 17.2 x 1.7 5P650IRNG2 5P850IRG2 13.7 / 30.2 509 x 438 x 43.2 / 20.0 x 17.2 x 1.7 5P850IRNG2 5P1150IRG2... -
Page 8: Rear Panel
Relay-MS Eaton Relay card (1 x RS232 or 5 x Relay output) INDRELAY-MS Eaton Industrial relay card (5x relay outputs with dry contacts for remote alarm information) Environmental Monitoring Probe Gen2 EMPDT1H1C2 Compatibility : Gigabit Network Card (Network-M2, Network-M3) / Industrial Gateway Card... -
Page 9: Installation
4 Installation 4.1 Inspecting the equipment If any equipment has been damaged during shipment, keep the shipping cartons and packing materials for the carrier or place of purchase and file a claim for shipping damage. If you discover damage after acceptance, file a claim for concealed damage. -
Page 10: Recommended Positions
4.2 Recommended positions Installation in rack position Follow steps bellow for module mounting on the rails. The rails and necessary hardware are supplied by Eaton. ① Screw Wall installation of models 5P650iR; 5P850iR; 5P1150iR the rail on the back of the rack. -
Page 11: Ups Connection
Fit the connection securing system that prevents the plugs from being pulled out accidentally. 4.4 Register warranty Register warranty at https://www.pqproductregistration.eaton.com 5 Interfaces and communication 5.1 Control panel The screen provides useful information about the UPS itself, load status, events, measurements and settings. DSD-5P2208... - Page 12 ① Power ON indicator (green) ② On battery indicator (orange) ③ Alarm Indicator (red) ④ Escape ⑤ Up ⑥ Down ⑦ Enter ⑧ On/Off button ⑨ Led bar (Horizontally for Rack / Vertically for Tower) Led indicator The following table shows the indicator status and description : The LED bar ⑨...
-
Page 13: Lcd Description
5.2 LCD description ① Load status and measurements ② Equipment status icon ③ Status / Message ④ Battery status By default, or after 5 minutes of inactivity, the LCD displays the screen saver. The backlight LCD automatically dims after 5 minutes of inactivity. Press any button to restore the screen. Note. -
Page 14: Display Functions
In AVR mode The UPS is operating normally but the The UPS is powering the equipment through the utility voltage is outside Normal mode Automatic Voltage Regulation device. The equipment is thresholds. still normally protected. No beep 5.3 Display functions Press the Enter ( ⮠ ) button to activate the menu options. -
Page 15: User Settings
Type / Model / Part Number / Serial Number / UPS Firmware / NMC Firmware / IPV4 Address / IPV6 Address / Com card MAC Address Registratio Links to Eaton registration website 5.4 User settings The following table displays the options that can be changed by the user. - Page 16 Submenu Available settings Default settings [English] [Français] [Deutsch] [Español] [English] [Рolski] [Português] [Italiano] [Simplified Automatic message for user Chinese] [Japanese] Language configuration when UPS is powered Menus, status, notices and alarms, UPS for the first time. fault, Event Log data and settings are in all supported languages.
- Page 17 Submenu Available settings Default settings Overload [10%] … [105%] [105%] prealarm Load % when overload alarm occurs [Cold start] [Cold start] : ON [Auto restart] [Auto restart] : ON Start/Restart [Auto start] [Auto start] : OFF [Yes] [No] [Timer] [10s] … [180s] When mains recovers during a shutdown sequence: [Yes]...
- Page 18 Submenu Available settings Default settings [Capacity] [0%] … [100%] [Runtime] [0min] … [60min] Low battery [0%] The alarm triggers when the set percentage warning [3min] of battery capacity or remaining back-up time is reached. [0%] ... [100%] Automatic restart will occur only when the set percentage of battery charge is Restart batt.
- Page 19 Submenu Available settings Default settings [ROO] [RPO] [DB9-4] Sets Input signals parameters (function, delay, operation) through external contact connectors or RS232 port. ROO port: - [Function]: [No] [ROO] [RPO] [Building [No] alarm] [0s] [Shutdown commands] [Closed] - [Delay]: [0s] … [999s] - [Active]: [Open] [Closed] RPO port: Input signals...
- Page 20 Submenu Available settings Default settings [Send CMD] [Output OFF] [OFF delay] [restart] Sets events or fault that will actuate Output signal parameters through external contact connector or RS232 port [Send CMD]: [Yes] [No] Shutdown Send CMD: [No] [Output OFF]: [No] [UPS] [Group 1] commands Output OFF: [No] [Group 2] [Group 1 + 2]...
-
Page 21: Advanced Battery Management
5.5 Advanced Battery Management + Eaton ABM+ (Advanced Battery Management) implements a machine learning algorithm providing battery health status. When set to predictive mode, the UPS will be able to provide an accurate remaining service time prediction based on real UPS usage condition. -
Page 22: Ups Remote Control Functions
5.7 UPS remote control functions Connectivity cards Connectivity cards allow the UPS to communicate in a variety of networking environments and with different types of devices. The 5P Gen2 models have one available communication bay for the following connectivity cards: • Gigabit Network card (Network-M2, Network-M3) : provides a Gigabit Ethernet connection and enables secure UPS monitoring over HTTPS web browser interface, SNMP v1/v3 protocol and email alarms. -
Page 23: Eaton Intelligent Power Software Suite
It also gives you a complete record of critical power events, and it notifies you of important UPS or power information. If there is a power outage and the 5P Gen2 UPS battery power becomes low, Eaton Software suite can automatically shut down your computer system to protect your data before the UPS shutdown occurs. -
Page 24: Starting The Ups On Battery
6.4 Operating modes The Eaton 5P Gen2 front panel indicates the UPS status through the UPS indicators located above the LCD screen. Normal mode When the green symbol is illuminated, the UPS is providing protected AC power output. The UPS monitors and charges the batteries as needed and provides power protection to your equipment. -
Page 25: Return Of Ac Input Power
If you store the equipment for a long period, recharge the battery every 6 months by connecting the UPS to utility power. The internal batteries charge to 90% capacity in less than 3 hours. However, Eaton recommends that the batteries charge for 48 hours after long-term storage. -
Page 26: When To Replace Batteries
7.3 When to replace batteries Eaton 5P Gen2 batteries have an expected life span of 3-5 years. After 4 years of operation, the UPS will provide a battery replacement notification reminding you that your batteries are nearing the end of their useful life. You should take proactive steps to ensure you replace your batteries for optimal operation and reliability. - Page 27 Replacing the internal battery : The internal battery is heavy. Use caution when handling the heavy batteries. A Phillips head screwdriver is needed to perform this procedure 1 - Pull off the front panel by pressing the tabs and follow the step 2 and 3.A - Remove the front panel.
-
Page 28: Recycling The Used Equipment
7.5 Recycling the used equipment Contact your local recycling or hazardous waste center for information on proper disposal of the used equipment. eaton.com/recycling Do not dispose the battery or batteries in a fire. Batteries may explode. Proper disposal of batteries is required. Refer to your local codes for disposal requirements. -
Page 29: Troubleshooting
8.2 Service and support If you have any question or problem with the UPS, call Eaton or your local service representative in your country / region. Please have the following information ready when you call for service: •... -
Page 30: Electrical Output
Nominal frequency 50/60Hz Frequency range 47-70Hz Protective class Protective class I Rated Input Voltage 200-240V~ 160-294V~ Input Voltage Range adjustable to 150~294V~ Rated Input Current 5P650IRG2 : 3.1A 5P650IRNG2 : 3.1A Nominal Input Current 5P850IRG2 : 4.1A 5P850IRNG2 : 4.1A 5P1150IRG2 : 5.5A 5P1150IRNG2 : 5.5A 5P1550IRG2 : 7.5A... -
Page 31: Battery
All models Normal mode Battery mode < 2.5 cycles 5P650IRG2 : 15A 5P650IRNG2 : 15A Depend on the external fuse or breaker in the upstream of UPS 5P850IRG2 : 24A Short circuit current limitation in battery mode 5P850IRNG2 : 24A 5P1150IRG2 : 30A 5P1150IRNG2 : 30A 5P1550IRG2 : 39A 5P1550IRNG2 : 39A... - Page 32 IEC 61000-4-2, (ESD): 8 kV Contact Discharge / 15 kV Air Discharge IEC 61000-4-3, (Radiated field): 10 V/m IEC 61000-4-4, (EFT): 4 kV EMC (Immunity) IEC 61000-4-5, (Surges): 2 kV Differential Mode / 4 kV Common Mode IEC 61000-4-6, (Electromagnetic field): 10 V IEC 61000-4-8, (Conducted magnetic field): 30 A/m UPS enclosure IP rating IP20...
-
Page 33: Glossary
10 Glossary Backup time Time during which the load can be supplied by the UPS operating on battery power. Low-battery warning This is a battery-voltage level indicating that battery power is low and that the user must take action before the UPS shuts down. Load Devices or equipment connected to the UPS output.
