Summary of Contents for Kleenmaid OMF6022

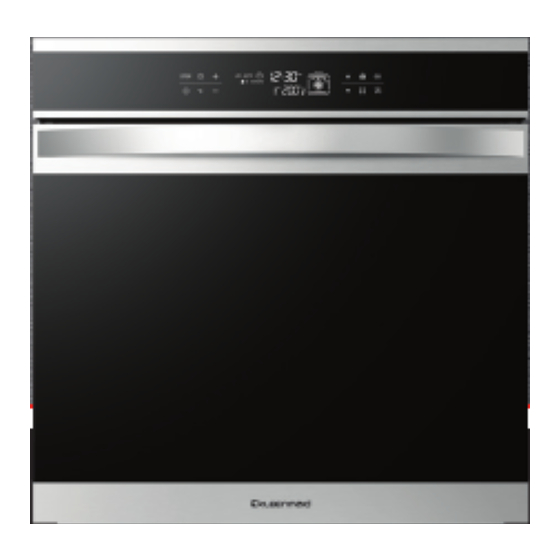

- Page 1 Instructions for use and warranty details Built In Oven Model No.: OMF6022...
- Page 2 Once installation is complete, please read this instruction manual carefully and get to know the controls and the features of your new Kleenmaid appliance. These simple instructions will enable you to achieve excellent results from the very first time you use it.
- Page 3 GENERAL WARNINGS This product is in compliance with the EU 2002/96/ and following the indications in this manual. EEC Directive. Important: do not lift or pull the oven with your The crossed out “wheeled bin” symbol on the appliance hands. indicates that at the end of its life-span, the product, as it In case of malfunctioning, disconnect the appliance from has to be separately treated from domestic waste, must...
- Page 4 For installation of the oven see the “installation instructions” chapter Correct use of the oven – Pre-heat the oven for the strictly necessary time only – Open the door only when necessary to avoid unnecessary heat losses – Keep the gaskets clean and efficient to avoid heat dispersion which can cause damage –...
- Page 5 Contents Contents User instructions, 6 User instructions, First use, 6 Control panel, 7 First use, Control panel, Instructions for use: - conventional cooking, 7 Instructions for use: - fan cooking, 7 – grill cooking, - defrosting, 7 – conventional cooking, - grill cooking, 8 –...
- Page 6 User instructions Important: Before using the oven for the first time, allow it to operate empty and at maximum temperature for about 1 hour. Ventilate the room well, possibly by opening the windows. This will allow evacuation of the combustion fumes of manufacturing residues such as grease, oil and resin.
- Page 7 Meat can be arranged in suitable heat-proof containers Attention: during use of the Grill, the accessible parts can or cooked directly on the grill. In the latter case, always become extremely hot. It is therefore advisable to keep pour some water in the drip pan then insert it in the guides children at a safe distance.
- Page 8 Using the cooking functions Pizza & bread oven light turned independently at any time. The light also This function is for baking and browning stays on with cooking functions. pizza and bread. Traditional static cooking + CLEAN Intensive cooking FUNCTION The activation of the top and bottom heat With the simultaneous heat distribution elements together with the fan ensures even...
- Page 9 Timer touch control Control Panel Functions It is possible to scroll the oven functions menus by pressing the symbols. The current function will flash for a few seconds and the set temperature assigned = On/Off to the function will appear (certain functions do not envision the adjustment of the temperature, in this case no value appears).
- Page 10 To activate cooking end, select the wanted oven function from the menu and, eventually, adjust the cooking temperature as previously described. Press symbol twice; the cooking end time corresponding to the time of the day appears. Press on + or – to program the wanted cooking end time. Press on , the PAUSE symbol stops flashing and the oven starts cooking.
- Page 11 After choosing the desired cooking function, press button . The most appropriate elements activate to quickly reach the set temperature and on the display the symbol will be visible and will disappear as soon as the temperature is reached. The program will also sound a buzzer to alert you. At this point the system will activate the functions previously set.
- Page 12 Replacing the oven light Instructions for removing and replacing the door To prevent electric shocks and/or damage to persons, read and follow the procedure given below: To remove 1 Open the oven door completely. WARNING: Ensure that the appliance is switched off 2.
- Page 13 Removing the glass inside the oven door they are in the right order and are placed the right way round (the clear glass must be towards the inside and the General notes position of the lettering on the glass surfaces must be as in (fig.
- Page 14 Maintenance and cleaning Disconnect the electric power supply before performing any type of maintenance on the product Do not clean the device with steam cleaners. Do not use rough, abrasive materials or sharp metal scrapers to clean the oven door, as they can scratch or damage the surfaces and cause the glass to break.
- Page 15 Drip pan insertion (removable guide rails Make sure that the grill front is placed inside the end stops of the sliding guide rail (fig.3g). version) CAUTION use specific hand protection devices if these operations are performed with a hot oven, as the drip pan can be very hot.
- Page 16 Installation instructions The installation and technical assistance must only be performed by qualified staff. Carefully read the safety instructions in this manual before using the oven. Incorrect installation, maintenance, assistance and use can cause serious damage/injury to persons or objects This product must be installed as instructed in this manual and in compliance with National Standards and local regulations in force.
- Page 17 Assembly/replacement of the power Spare parts supply cable Only authorised components can be used for the appliance repairs. Do not repair or replace any oven component If the supply cord is damaged, it must be replaced by not recommended by this manual. All interventions and the manufacturer, its service agent or similarly qualified repairs must be carried out by authorised technical staff.
- Page 18 ELECTRIC DATA FOR TYPE AND MODEL Voltage 220-230-240 V ~ 50/60 Hz FI-60 Total power 3400 Top element Grill element 1800 Base element 1200 Circular element 2200 Oven light Oven fan Tangential fan Spit EXTERNAL DIMENSIONS Width 59,5 Height 59,5 Depth INTERNAL DIMENSIONS Gross volume...
- Page 19 Australian Consumer Law. c. In the event that a request for repair is made against this Kleenmaid Warranty where the serial number for the Product cannot be verified or you cannot produce for verification a proof of purchase for the Product (including but not limited to the original invoice), the repairer will not carry out any repairs on the Product and you will be charged a service call-out fee.
- Page 20 13. Kleenmaid accepts no liability for items that are lost, damaged, or stolen as a result of freight, transport or storage. If you are required to transport the Product to an authorised service centre, you must ensure that it is securely packed and insured.
- Page 24 Other products available in the Kleenmaid range of appliances Washing machines Clothes dryers Dishwashers Ovens Cooktops Steam ovens Microwave ovens Built in espresso coffee machines Rangehoods Freestanding ovens Compass Capital Services Pty Limited trading as Kleenmaid ABN 96138214525 Level 2, 204 Botany Road Alexandria NSW 2015 E: support@kleenmaid.com.au...
