Summary of Contents for Kleenmaid OMF6030

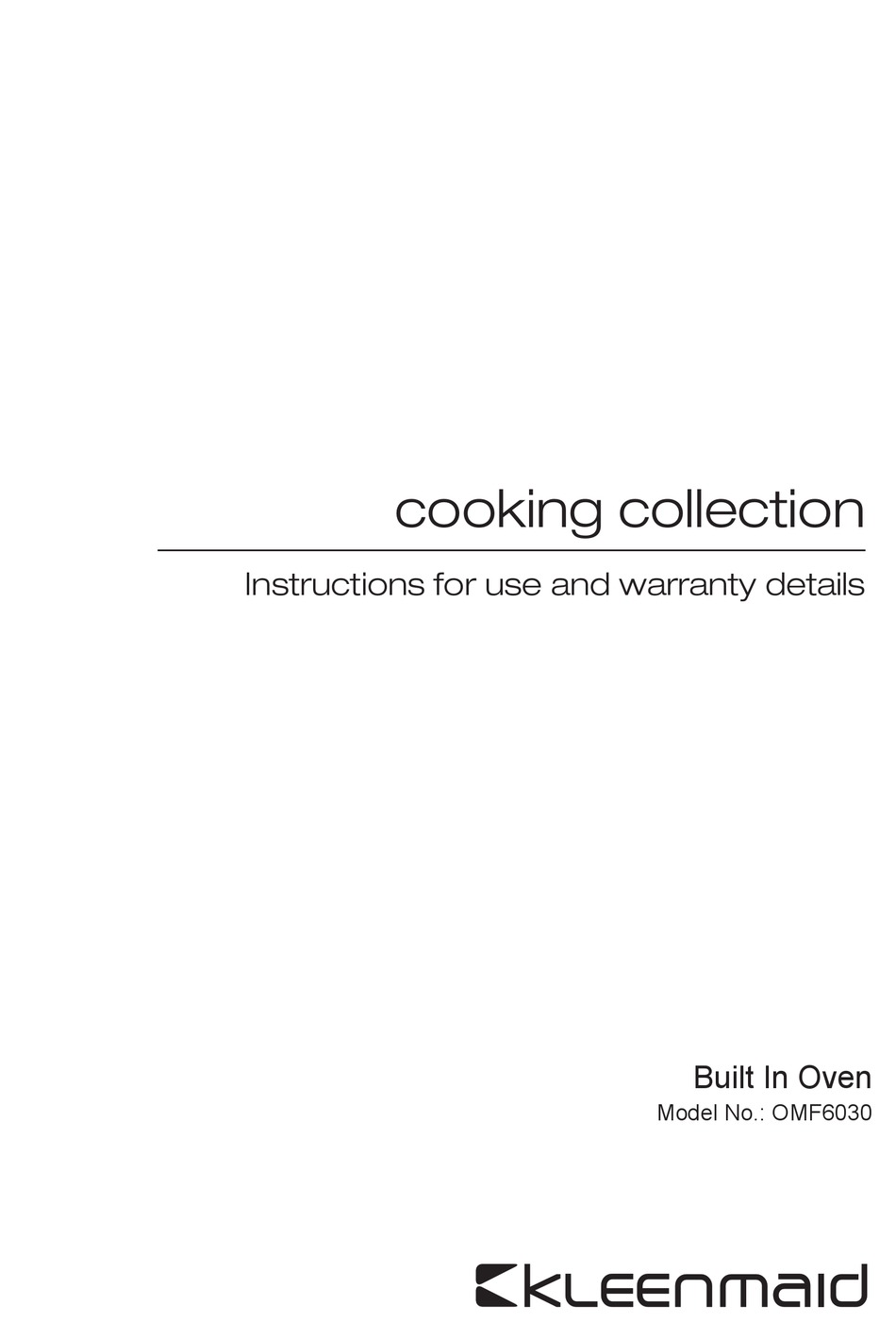

- Page 1 cooking collection Instructions for use and warranty details Built In Oven Model No.: OMF60...
- Page 2 Once installation is complete, please read this instruction manual carefully and get to know the controls and the features of your new Kleenmaid appliance. These simple instructions will enable you to achieve excellent results from the very first time you use it.
- Page 3 DEAR CUSTOMER, The oven is exceptionally easy to use and extremely efficient. After reading the instruction manual, operating the oven will be easy. Before being packaged and leaving the manufacturer, the oven was thoroughly checked with regard to safety and functionality. Before using the appliance, please read the instruction manual carefully.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Safety instructions ......................4 Description of the appliance ..................... 8 Operation ........................... 10 Baking in the oven – practical hints ................17 Cleaning and maintenance ....................19 Installation instructions ....................23 Specifications ........................26... -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS Warning: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children should be kept away unless continuously supervised. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabili- ties, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the... - Page 6 SAFETY INSTRUCTIONS Danger of burns! Hot steam may escape when you open the oven door. Be careful when you open the oven door during or after cooking. Do NOT lean over the door when you open it. Please note that depending on the temperature the steam can be invisible.
- Page 7 HOW TO SAVE ENERGY Using energy in a respon- sible way not only saves money but also helps the environment. So let’s save energy! And this is how you can do it: Do not uncover the pan too often (a watched pot never boils!). Do not open the oven door unnecessarily often.
- Page 8 DISPOSAL OF THE APPLIANCE UNPACKING During transportation, protec- Old appliances should not sim- tive packaging was used to ply be disposed of with normal protect the appliance against household waste, but should any damage. After unpack- be delivered to a collection and ing, please dispose of all recycling centre for electric and elements of packaging in a...
-
Page 9: Description Of The Appliance
DESCRIPTION OF THE APPLIANCE Electronic programmer Temperature regulator Cooker operation signal light L signal light R MENU Temperature control Oven function knob selection knob MENU Control button”+” Control button „-” Menu button... - Page 10 SPECIFICATIONS OF THE APPLIANCE Cooker fittings: Grill grate Baking tray (drying rack) Shelf supports...
-
Page 11: Operation
OPERATION Before using the oven for the first time Important! ● Remove packaging, clean the interior of In ovens equipped with the electronic the oven, programmer Ts, the time “0.00” will start flashing in the display field upon connection to the power supply. ●... - Page 12 OPERATION Caution! Electronic programmer If the correct time is not set then proper operation of the oven is not possible. functions Timer 1 – function selection button The timer can be activated at any time, re- 2 – “–” sensor gardless of the status of other functions.
- Page 13 OPERATION Semi–automatic operation Automatic operation If the oven is to be switched off at a given If the oven is to be switched on for a specified time, then you should: period of time and switched off at a fixed hour then you should set the operation time and Set the oven function knob and the tem- the operation end time:...
- Page 14 OPERATION Change the timer beeps The function AUTO is now on; the oven will start operating from the point when the differ- The tone of the timer beeps may be ence between the set operation end time and changed as follows: the operation duration time occurs (e.g.
- Page 15 OPERATION Oven with automatic air circulation Oven is off (including a fan and and fan-forced Oven lighting element) Set the knob in this position to light up The oven can be heated up using the bottom the oven interior. and top heaters, the grill or the fan-forced n .
- Page 16 OPERATION Baking Pizza and bread When the knob is set to this position With this setting the convection fan the oven is heated using only the and bottom n are on, bottom n . Baking of cakes which increases the temperature from the bottom until done (moist at the bottom of the cooked dish.
- Page 17 OPERATION Use of the grill The grilling process operates through infrared rays emitted onto the dish by the incandes- cent grill In order to switch on the grill you need to: Set the oven knob to the position marked grill Heat the oven for approx.
-
Page 18: Baking In The Oven - Practical Hints
BAKING IN THE OVEN – PRACTICAL HINTS Baking we recommend using the baking trays which were provided with your cooker; it is also possible to bake in cake tins and trays bought elsewhere which should be put on the drying rack; for baking it is preferable to use black trays which conduct heat better and shorten the baking time;... - Page 19 BAKING IN THE OVEN – PRACTICAL HINTS Oven with automatic air circulation (including a fan and an ultra-fan element) Type Oven Temperature Level Time in minutes functions dish 160 - 200 2 - 3 30 - 50 160 - 180 2 - 3 20 - 40* 140 - 160...
-
Page 20: Cleaning And Maintenance
CLEANING AND MAINTENANCE By ensuring proper cleaning and mainte- Important! nance of your cooker you can have a sig- Do not use any abrasive agents, nificant influence on the continuing fault-free harsh detergents or abrasive ob- operation of your appliance. jects for cleaning. - Page 21 CLEANING AND MAINTENANCE Ovens in cookers marked with the letter Ovens in cookers marked with the letters D are equipped with easily removable Dc have stainless steel sliding telescopic wire shelf supports. To remove them for runners attached to the wire shelf sup- washing, pull the front catch, then tilt the ports.
- Page 22 CLEANING AND MAINTENANCE Replacement of the oven light bulb In order to avoid the possibility of an electric shock ensure that the appliance is switched off before replacing the bulb. Oven light bulb Set all control knobs to the position “ ”/“0” and disconnect the mains plug, unscrew and wash the lamp cover and then wipe it dry.
- Page 23 CLEANING AND MAINTENANCE Removing the inner panel Door removal 1. Using a flat screwdriver unhook the up- per door slat, prying it gently on the sides In order to obtain easier access to the oven (fig. B). chamber for cleaning, it is possible to remove 2.
- Page 24 CLEANING AND MAINTENANCE Pull the inner glass panel from its seat Regular inspections (in the lower section of the door). Re- move the inner panel (fig. D). Besides keeping the oven clean, you should: Clean the panel with warm water with ●...
-
Page 25: Installation Instructions
INSTALLATION INSTRUCTIONS The installation and technical assistance Inserting the oven in the cabinet must only be performed by qualified staff. Make an opening with the dimensions Carefully read the safety instructions in this manual before using the oven. Incor- given in the diagram for the oven to be rect installation, maintenance, assistance fitted. - Page 26 INSTALLATION INSTRUCTIONS Electrical connection Warning: This appliance must be earthed. 230V 1N~ The appliance is supplied fitted with a power cord and 3 pin plug. Plug the 3-pin plug into Neutral (Black or Blue) a properly earthed, 15A general purpose power outlet.
-
Page 27: Specifications
The bulb is loose or damaged. Tighten up or replace the work. blown bulb (see ‘Cleaning and Maintenance’). SPECIFICATIONS Model OMF6030 Oven dimensions (H/W/D) 595 x 595 x 575 mm Rated voltage 220-230-240 V ~50/60 Hz Total power 3100 W... - Page 30 Australian Consumer Law. c. In the event that a request for repair is made against this Kleenmaid Warranty where the serial number for the Product cannot be verified or you cannot produce for verification a proof of purchase for the Product (including but not limited to the original invoice), the repairer will not carry out any repairs on the Product and you will be charged a service call-out fee.
- Page 31 13. Kleenmaid accepts no liability for items that are lost, damaged, or stolen as a result of freight, transport or storage. If you are required to transport the Product to an authorised service centre, you must ensure that it is securely packed and insured.
- Page 32 Other products available in the Kleenmaid range of appliances Washing machines Clothes dryers Dishwashers Ovens Cooktops Steam ovens Microwave ovens Built in espresso coffee machines Rangehoods Freestanding ovens Compass Capital Services Pty Limited trading as Kleenmaid ABN 96138214525 Level 2, 204 Botany Road Alexandria NSW 2015 E: support@kleenmaid.com.au...
Need help?
Do you have a question about the OMF6030 and is the answer not in the manual?
Questions and answers

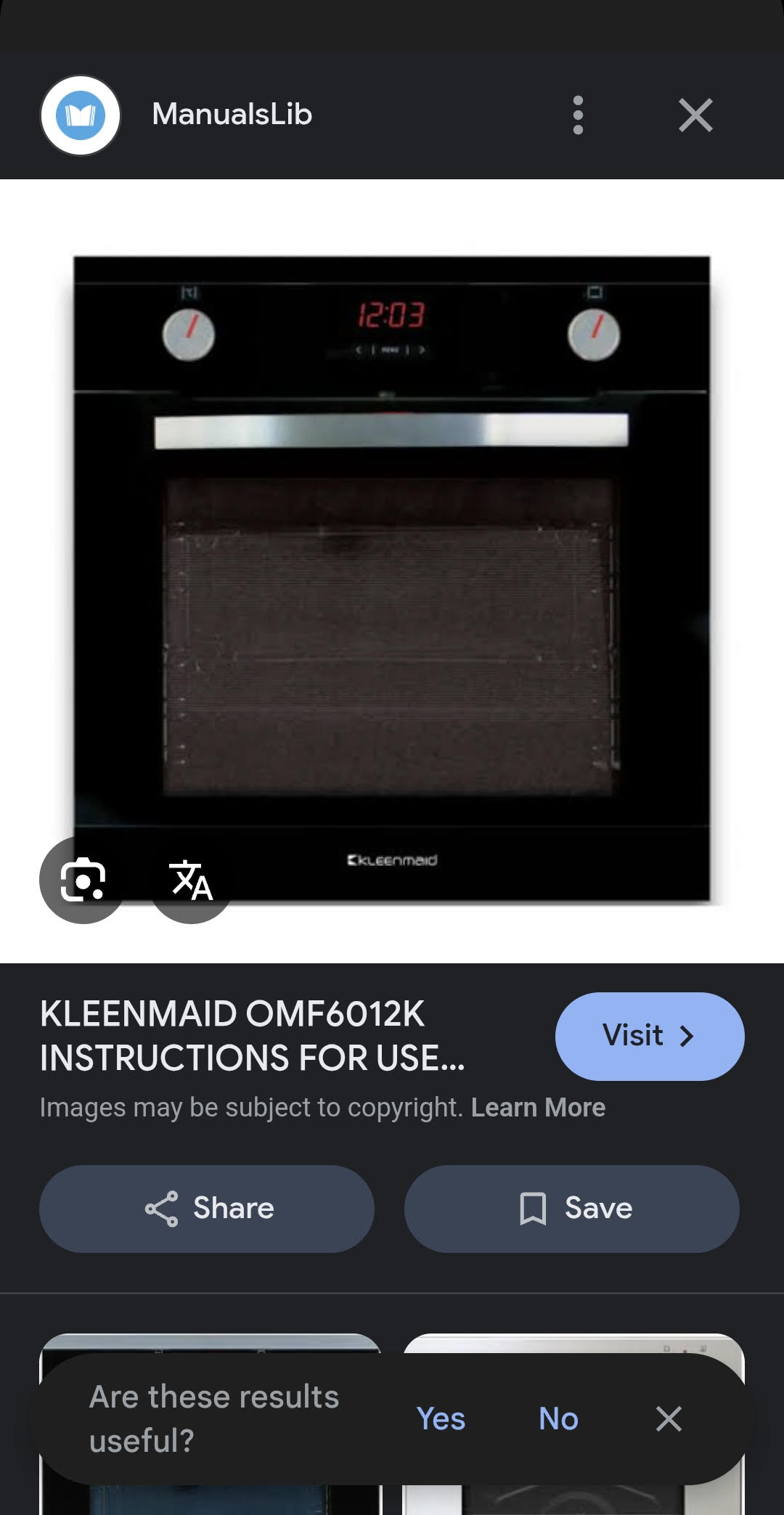

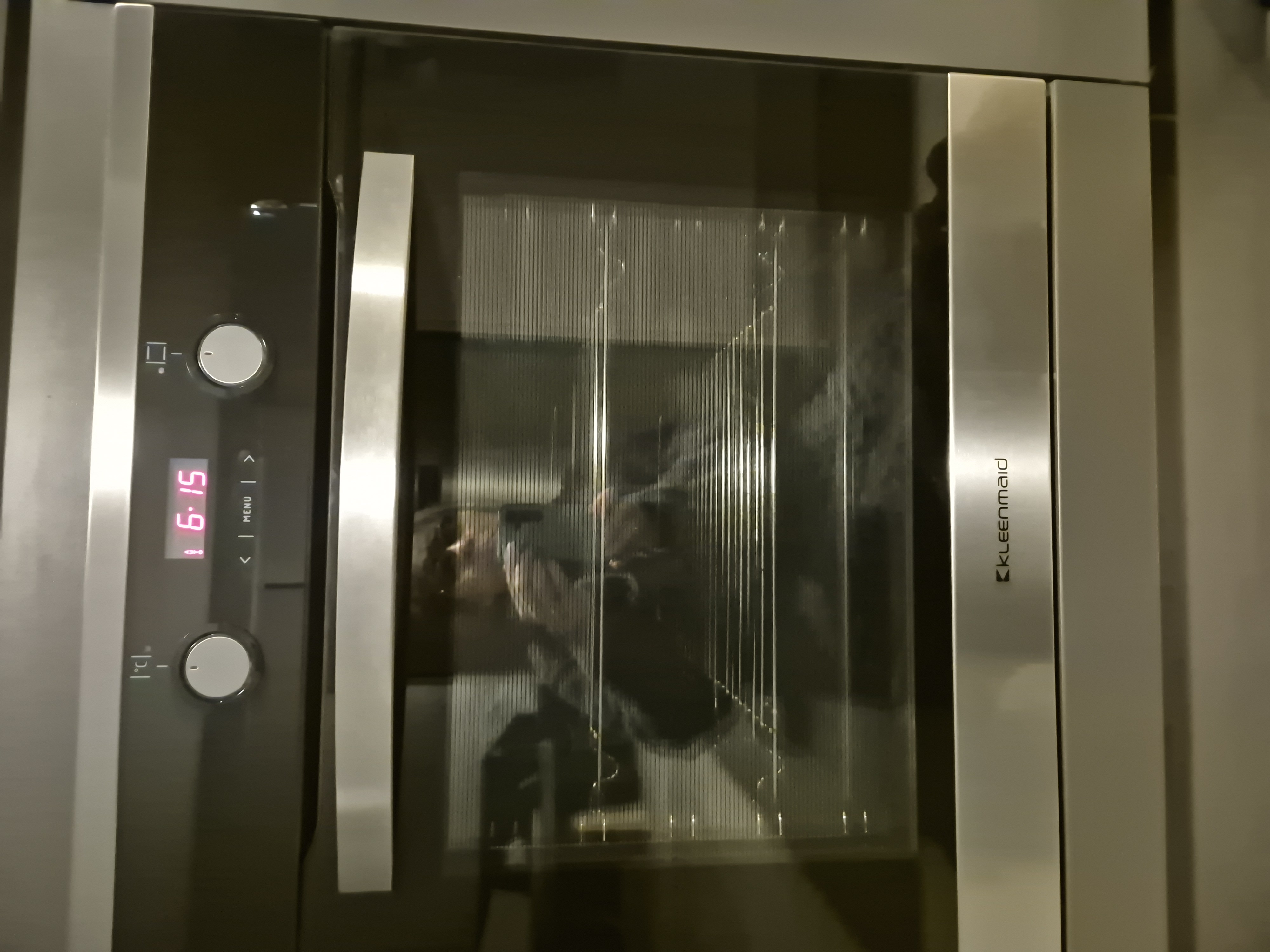

are instructions for the OMF6030 the same as for the OMF6030K model? I have bought a house and previous owners didn't leave a manual. ive been living here 3 weeks and can't work out how to use the oven. From a Google image search, I have the OMF6030 ..... I think.
are instructions for the OMF6030 the same as for the OMF6030K model? I have bought a house and previous owners didn't leave a manual. ive been living here 3 weeks and can't work out how to use the oven. From a Google image search, I have the OMF6030 ..... I think.
