Summary of Contents for Kleenmaid OMF9411

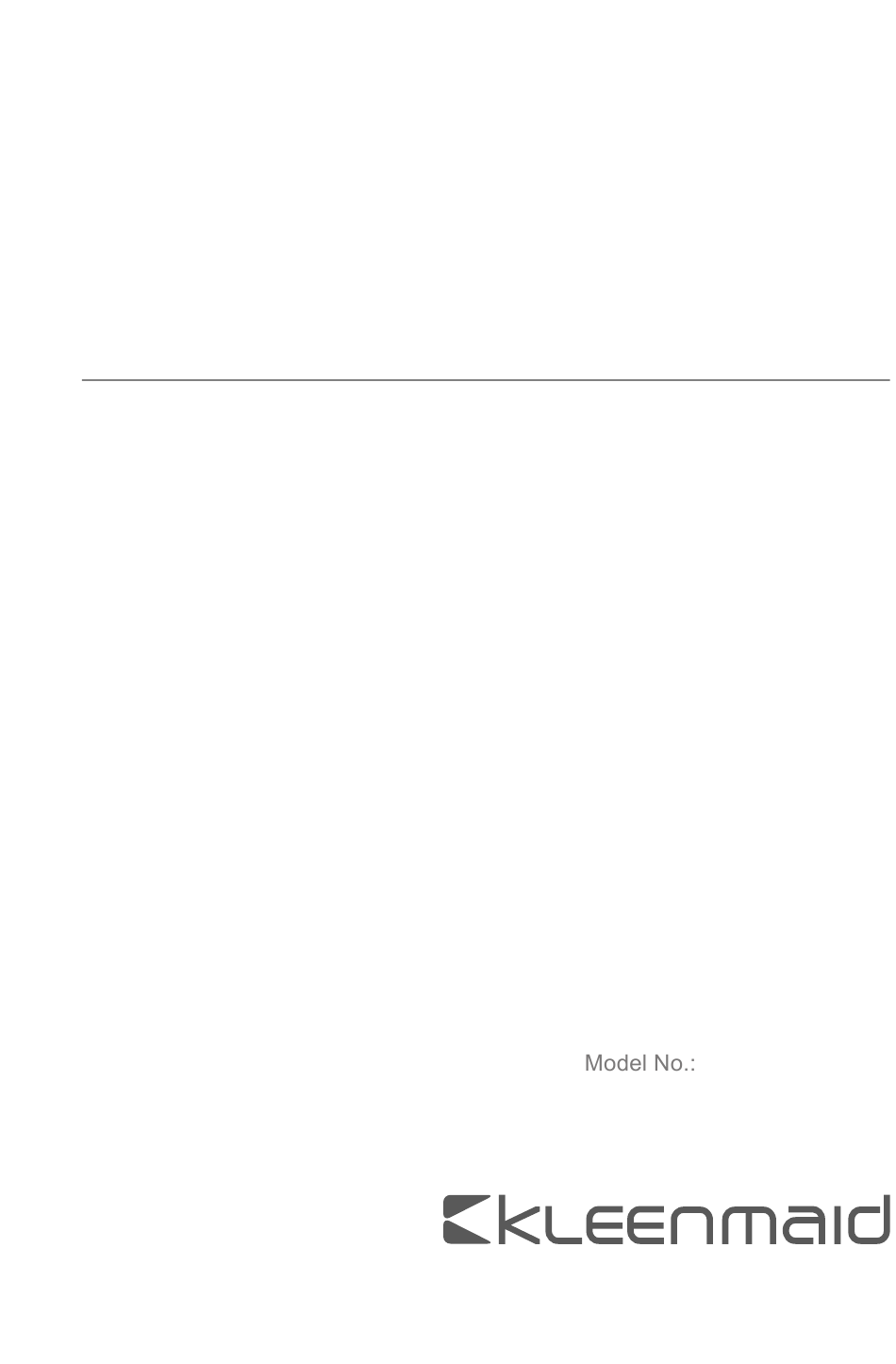

- Page 1 Instructions for use and warranty details Multifunction Oven OMF9411...
- Page 2 Once installation is complete, please read this instruction manual carefully and get to know the controls and the features of your new Kleenmaid appliance. These simple instructions will enable you to achieve excellent results from the very first time you use it.
-
Page 3: Table Of Contents
When contacting the authorized Service Centre, make sure you have the product code given in this booklet and on the rating plate on the appliance. • Never open the casing of the appliance. Please check the Warranty section on the Kleenmaid website before arranging for repairs. • Warning/Caution Important Safety Information General information and tips... - Page 4 The oven must always be used within the limits of normal household use, for cooking, roasting, • grilling, thawing dishes, to prepare food for later storage or to dehydrate it, and not for professional use. • • No other use is permissible. •...
-
Page 5: Safety Instructions
2. SAFETY INSTRUCTIONS 2.1 Installation CAUTION! • The appliance must be installed by skilled personnel. • Remove all packaging materials. • Do not install or use the appliance if it is damaged. Observe the instructions included with the appliance. • •... - Page 6 • Switch off the appliance after each use. • Take care when opening the door of the appliance when it is in operation. Hot air can escape. • Do not turn on the appliance with wet hands or when there is contact with water. •...
- Page 7 2.5 Interior light CAUTION! Risk of electric shock. • The light bulbs used in this appliance are special lamps for electric household appliances. Do not use them for home lighting. • Before replacing the light bulb, disconnect the appliance from the electric mains. •...
-
Page 8: Product Description & Use
3. PRODUCT DESCRIPTION & USE 3.1 Overview 1) Control Panel 2) Function Selector Knob 3) Temperature Selector Knob 4) Cooking Programmer/Timer 5) °C Heating Element Active Indicator/ warning light 6) Function Active Indicator / warning light 7) Interior Lamps 8) Heating elements 9) Fan and Circular Heating Element 10) Rack Positions 11) Rack Supports (removable) - Page 9 Oven function Application Off: The appliance is switched off. Oven Lamps: To switch on the lamps without a cooking function. Defrost: To thaw eg. meat, poultry, bread and desserts. The fan causes the warm air to wrap around the food. The inner heating element and the outer heating element in the top of the oven are Double grill with fan: operating with the fan.
- Page 10 Countdown Timer Press and the Countdown Tmer icon will begin to flash which means the Countdown Timer function has been chosen, “0.00” will display. Press the button to set the Countdown Timer time. The time can be adjusted between “0:01~23:59”. Press once on , and hold for 3 seconds for quick-adjust.
- Page 11 3.6 Cooking Cavity The Oven Lamps in the Cooking Cavity are on while the oven is operating. By turning the Function • Selector Knob to the Lamp symbol the lights can also be lit when the oven is switched off. N.B.
-
Page 12: Preparing For First Use
HOOK POSITIONING AT THE REAR HOOK POSITIONING AT THE FRONT Fig. b CAUTION! Pour some water into the baking tray/grill pan and place it on the first level to collect cooking • fats. 4. PREPARING FOR FIRST USE CAUTION! Refer to the sections on safety. •... -
Page 13: Cleaning And Care
7. The accessories may get hotter than usual. 8. The oven can produce an unpleasant odour and smoke. This is not a malfunction. 9. Make sure the airflow inside the room is adequate. 5. CLEANING AND CARE CAUTION! Refer to the sections on safety. •... - Page 14 5.2 Notes on cleaning • Clean the oven door only with a moist sponge. Dry it with a soft cloth. • Do not use steel wool, acids or abrasive products that could damage the surface of the oven. Clean the oven control panel, taking the same precautions.
- Page 15 5.5 Removing and Cleaning the oven door • The oven door is equipped with three glass panels. You can remove the oven door and the internal glass panels to clean them. • The oven door could close again if you try to remove the glass panels before taking off the oven door. CAUTION! Refer to the sections on safety.
-
Page 16: Troubleshooting
5.6 Changing the light bulb CAUTION! • WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock. Wear protective gloves to change the light bulb. • • To make the replacement, proceed as follows: •... -
Page 17: Energy Efficiency
7. ENERGY EFFICIENCY 7.1 Energy saving The appliance is equipped with features to help you save energy during everyday cooking. General tips • Ensure that the oven door is closed properly when the appliance is in operation and keep it closed as much as possible during cooking. - Page 18 GENERAL DIMENSIONS OF PRODUCT AND CABINET 60 mm(*) 60 mm(*) (*) The electric cable of the oven should be passed through the hole of 60 mm diameter in the position indicated. CONNECTING TO THE ELECTRIC MAINS • The oven is provided with a three-pole power cable with free terminals. •...
- Page 19 EARTHING Nominal Power 2.92 kW 12.70 A Supply cord: 3 x 1.5 mm type H05VV-F or H05RR-F LIVE • The system must have an earthing wire, distinguished by the yellow-green colour of the protective sleeve. Components Oven Nominal Power • All electric household appliances must NEUTRAL be connected to earth.
-
Page 20: Cooking Guide Table
Cooking guide table Pre-heating Cooking Cooking Weight (kg) Accessories Temperature Rack Dish Time Level (°C) Function Time (minutes) (minutes) Cheese Cake 1,5 – 4 Kg Cookware, uncovered onto the wire rack 50-70 Roast Beef 1 – 4 Kg Cookware, uncovered onto the wire rack 25-30 Meatloaf 1 –... -
Page 21: Warranty Terms & Conditions
The benefits given to you under this Kleenmaid Warranty are in addition to other rights and remedies to which you may be entitled under the Australian Consumer Law in relation to the Product to which this Kleenmaid Warranty relates. Subject to the conditions below, the Product is warranted by Kleenmaid and/or its agents to be free from defects in materials and workmanship for the Warranty Period for normal Domestic Use. - Page 22 13. Kleenmaid accepts no liability for items that are lost, damaged, or stolen as a result of freight, transport or storage. If you are required to transport the Product to an authorised service centre, you must ensure that it is securely packed and insured.
- Page 24 Other products available in the Kleenmaid range of appliances Washing machines Clothes dryers Dishwashers Ovens Cooktops Steam ovens Microwave ovens Built in espresso coffee machines Rangehoods Freestanding ovens Compass Capital Services Pty Limited trading as Kleenmaid ABN 96138214525 Level 2, 204 Botany Road Alexandria...
