2.
Connect the controller enclosure to I/O module A (green ports) on the top and bottom disk
enclosures. This cabling represents one of the redundant paths for fault tolerance. Port P1 on
I/O module A of the top disk enclosure and port P2 on I/O module A of the bottom disk
enclosure represent the beginning and end of the path.

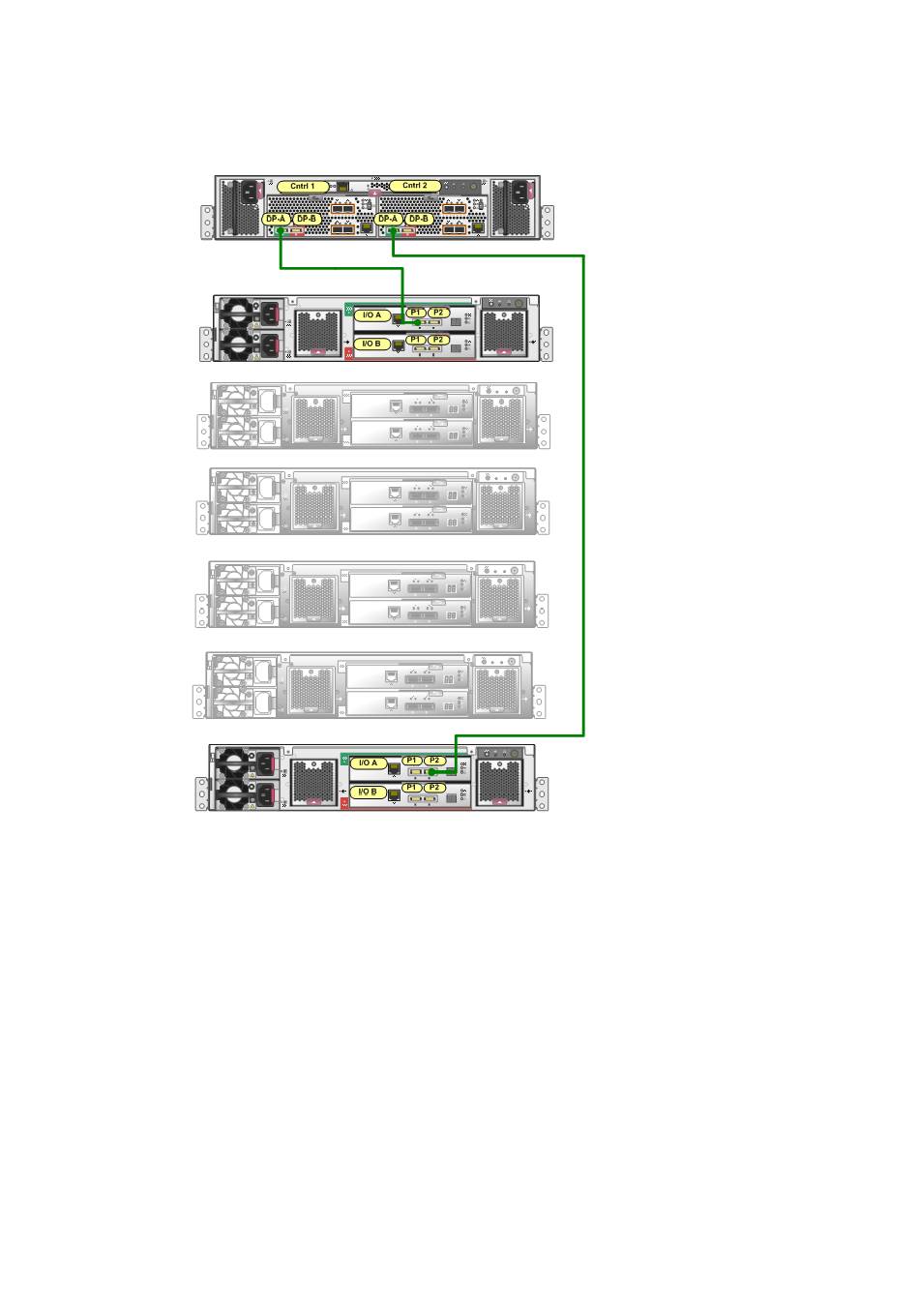

Figure 48 Cabling the first redundant path
Connecting P6300 EVA controllers to the disk enclosures (2C6D)
59
