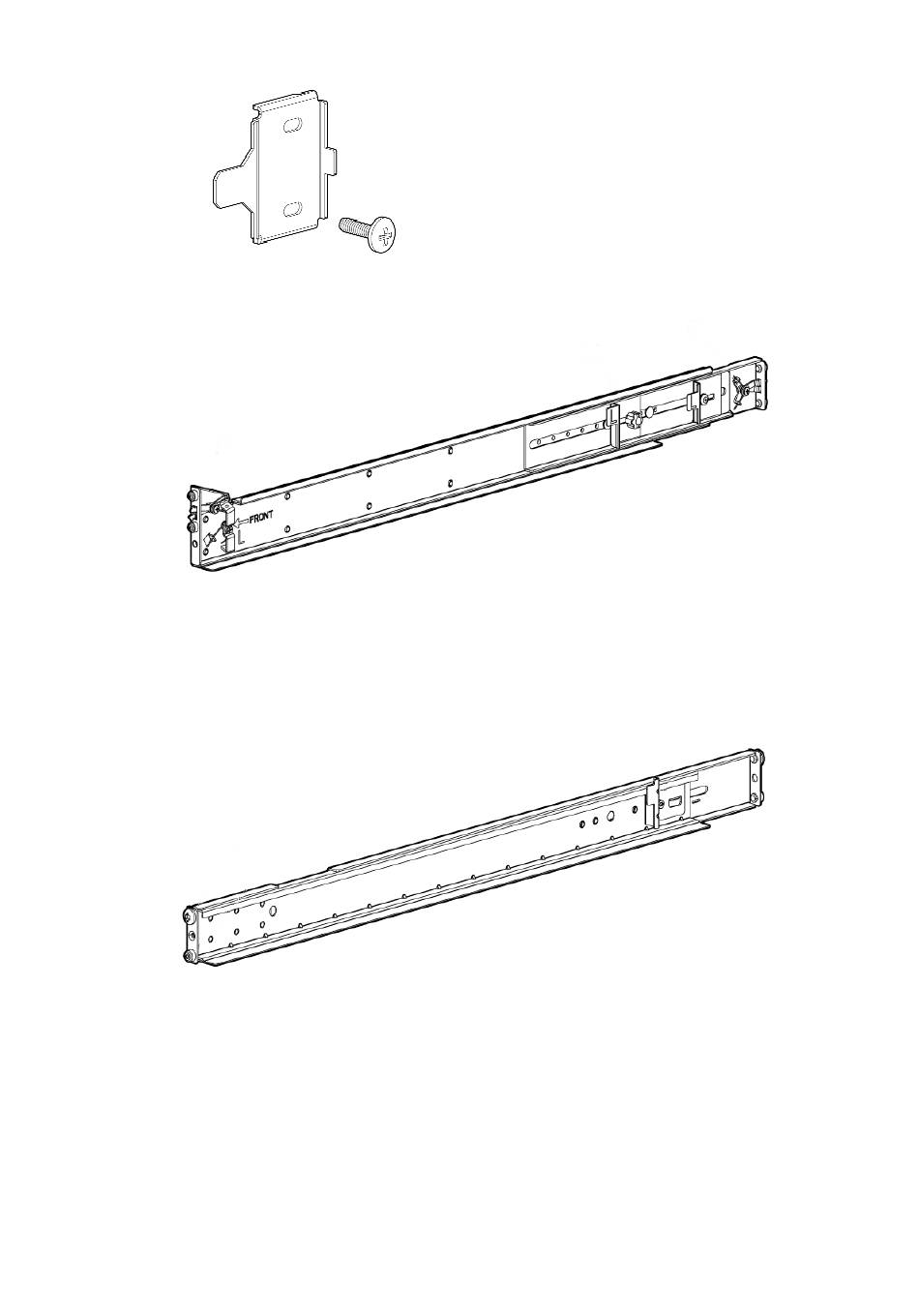

Figure 7 Inserting screw into the new bracket
Figure 8 Attaching brackets to rail
3.
Repeat
Step 1
and
Figure 9 (page 23)
shows the disk enclosure rail.
Figure 9 Disk enclosure rail
Step 2
for the remaining rail.
Attach the brackets for a longer chassis
23
