modules. The iSCSI/FCoE modules are configured as four instantiated hosts—two Fibre Channel
ports from each module (as illustrated in
Figure 23 (page
38)) and as iSCSI MPX hosts 01, 02,
03, and 04
(Figure 27 (page
40),
Figure 28 (page
40),
Figure 29 (page
40), and
Figure 30
(page
41)). The Fibre Channel ports associated with each iSCSI/FCoE host come from the IEEE
format 2 HP-registered MAC addresses and represent N-port ID virtualization (NPIV) functionality
called Virtual Port Groups (VPG). The iSCSI module does not support VPGs.

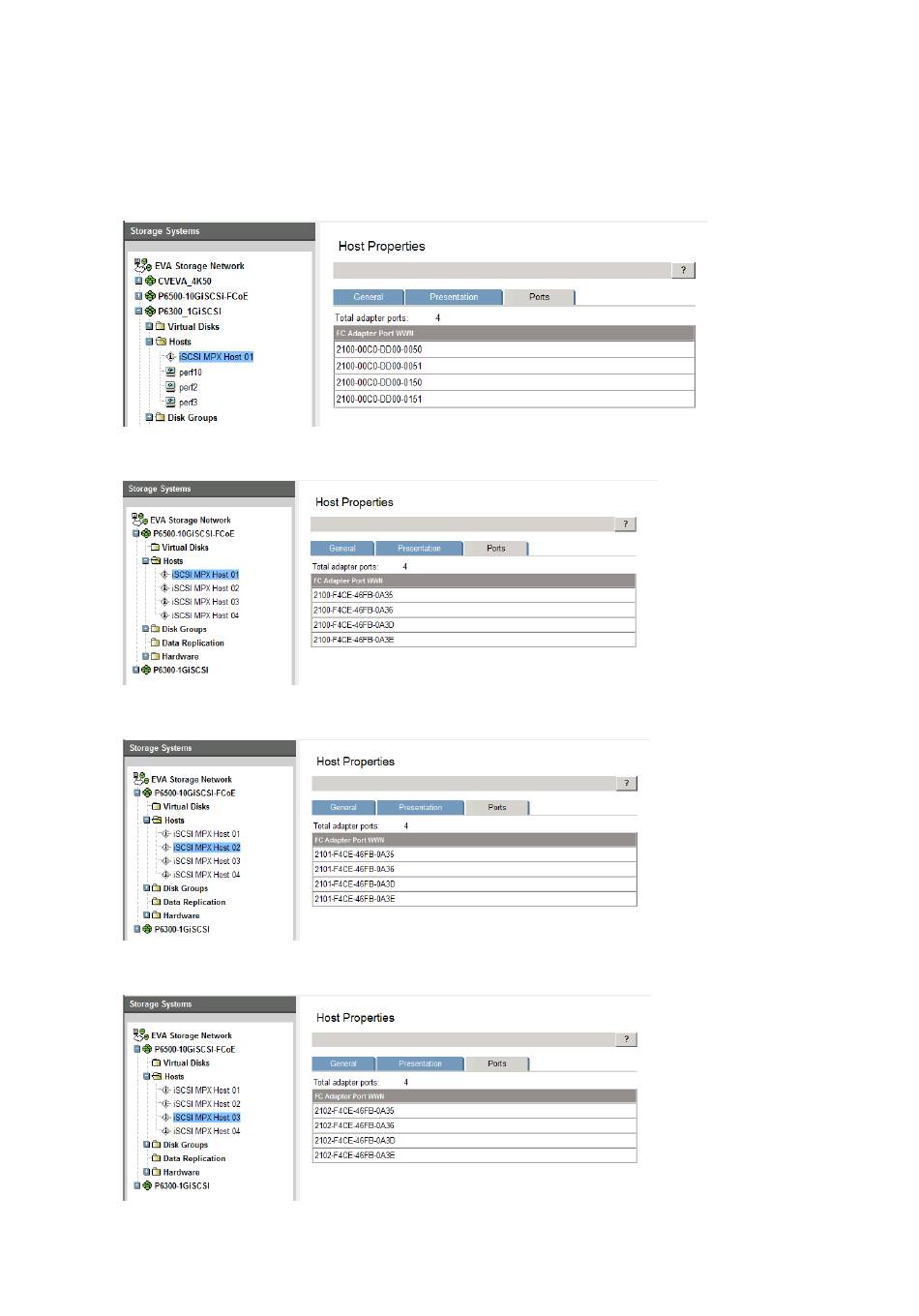

Figure 26 iSCSI Host 01 properties
Figure 27 iSCSI/FCoE VPGO, Host 01 properties
Figure 28 iSCSI/FCoE VPG1, Host 02 properties
Figure 29 iSCSI/FCoE VPG2, Host 03 properties
40
Managing the iSCSI or iSCSI/FCoE module using HP P6000 Command View
