NOTE:
The power distribution units can be assembled either vertically (using the PDU hinge) as
shown for configuring for expansion, or horizontally as shown for configuring for maximum rack
space.

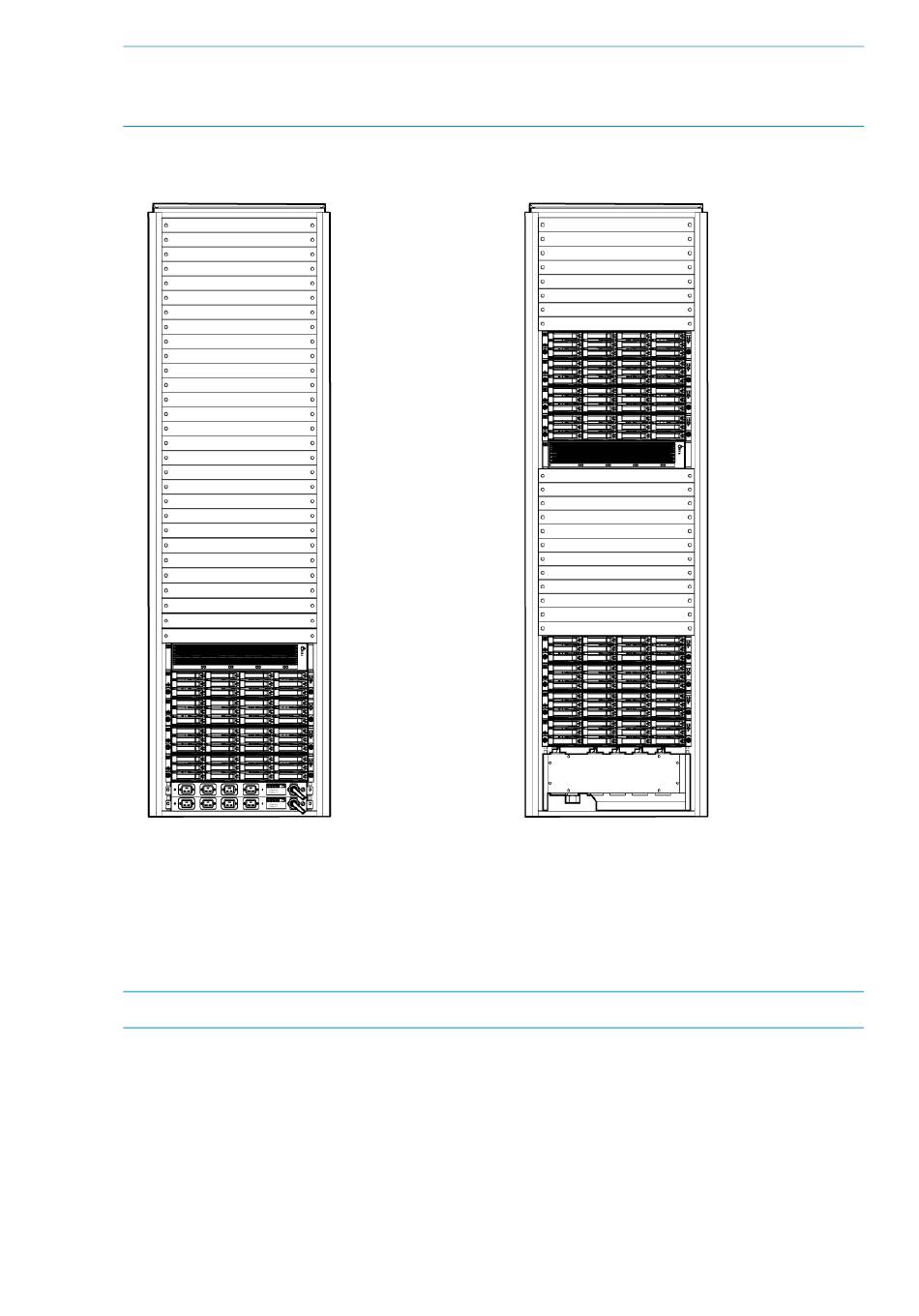

Figure 6 Typical rack configurations
P6300 configured for maximum rack space
Attach the brackets for a longer chassis
If you are installing a longer chassis into your cabinet, such as for the controller enclosure, you
must remove the shipping retaining bracket and install the smaller brackets supplied in the accessory
kit.
NOTE:
A No. 2 Phillips head screwdriver is required for this procedure.
1.
Remove the existing screw and shipping retaining bracket from the rear of the rail.
2.
Insert a screw through the bottom hole of the new bracket and loosely secure the bracket to
the rear of the rail.
22
Installing components
All manuals and user guides at all-guides.com
P6500 configured for expansion
