presentation through both controllers. If you are implementing FCoE connectivity, zoning the FCoE
storage target port WWNs from the iSCSI/FCoE modules is managed through the converged
fabric switch.

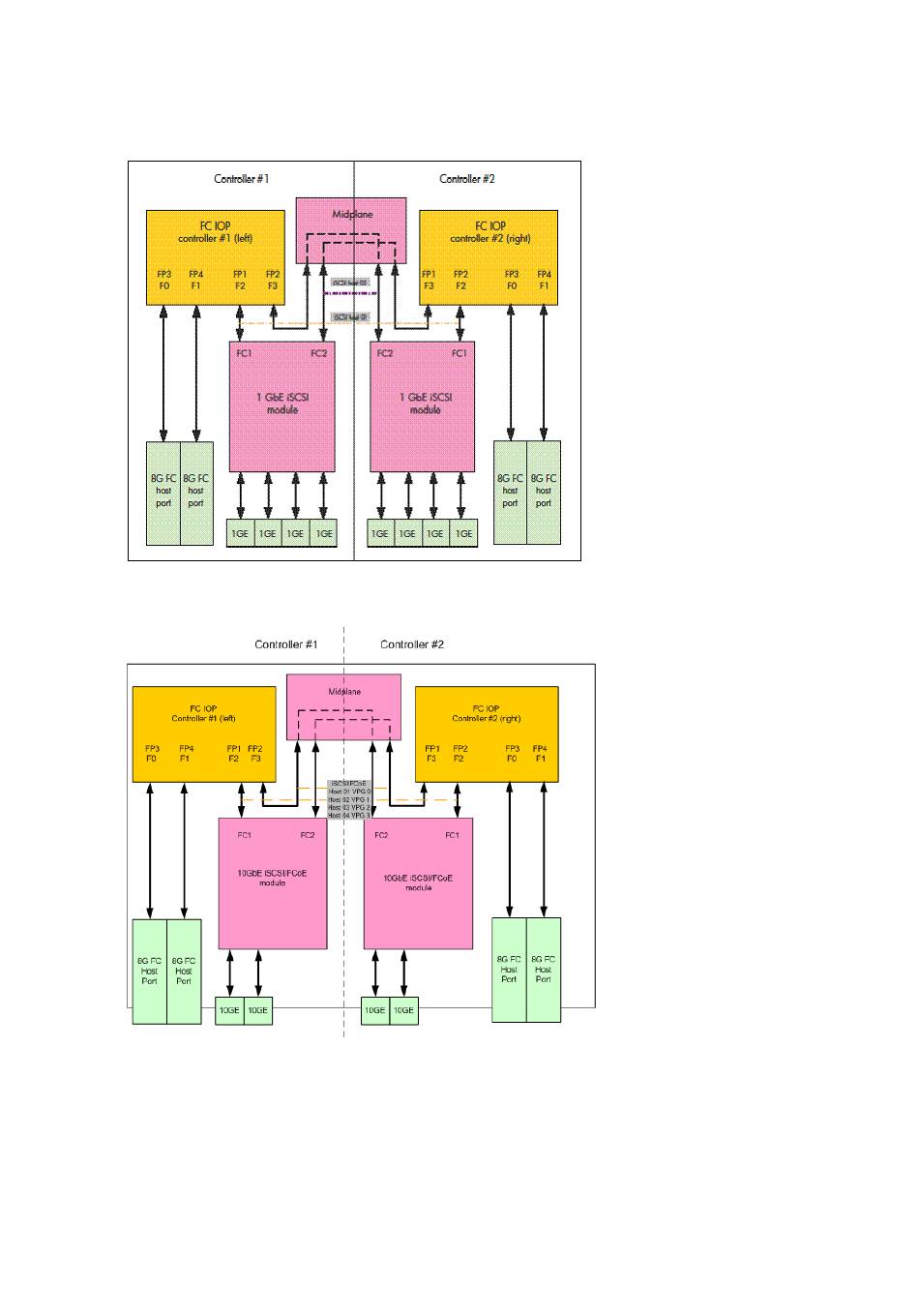

Figure 22 P6000 iSCSI configuration with two HP P6000 Command View hosts (512 LUNs)
Figure 23 P6000 iSCSI configuration with four HP P6000 Command View hosts (1024 LUNs)

HP P6000 Command View discovery

The iSCSI and iSCSI/FCoE module FC ports are logged in to the array when the controllers are
powered on and in an active state. Now you can use HP P6000 Command View to perform device
discovery of the array and modules. In the Navigation pane, select Hardware > iSCSI Devices. The
iSCSI Devices Folder Properties window opens. Click Discover iSCSI Devices or, to specify the IP
addresses, click Add iSCSI Device
38 Managing the iSCSI or iSCSI/FCoE module using HP P6000 Command View
All manuals and user guides at all-guides.com
(Figure 24 (page 39)).
