Instructions-Parts List
Elevators and Pump
Supports
Used to raise and lower select Graco circulation and supply pumps.
For professional use only.
200 psi (1.4 MPa, 14 bar) Maximum Air Input Pressure
Important Safety Instructions
Read all warnings and instructions in this manual.
Save these instructions.
See page 3 for a list of models.

Table of Contents

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
3
4
6
7
8
15
16
16
306287U
ENG
06529
06523

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 06529 and is the answer not in the manual?

Questions and answers

Related Manuals for Graco 06529

Summary of Contents for Graco 06529

  • Page 1: Table Of Contents

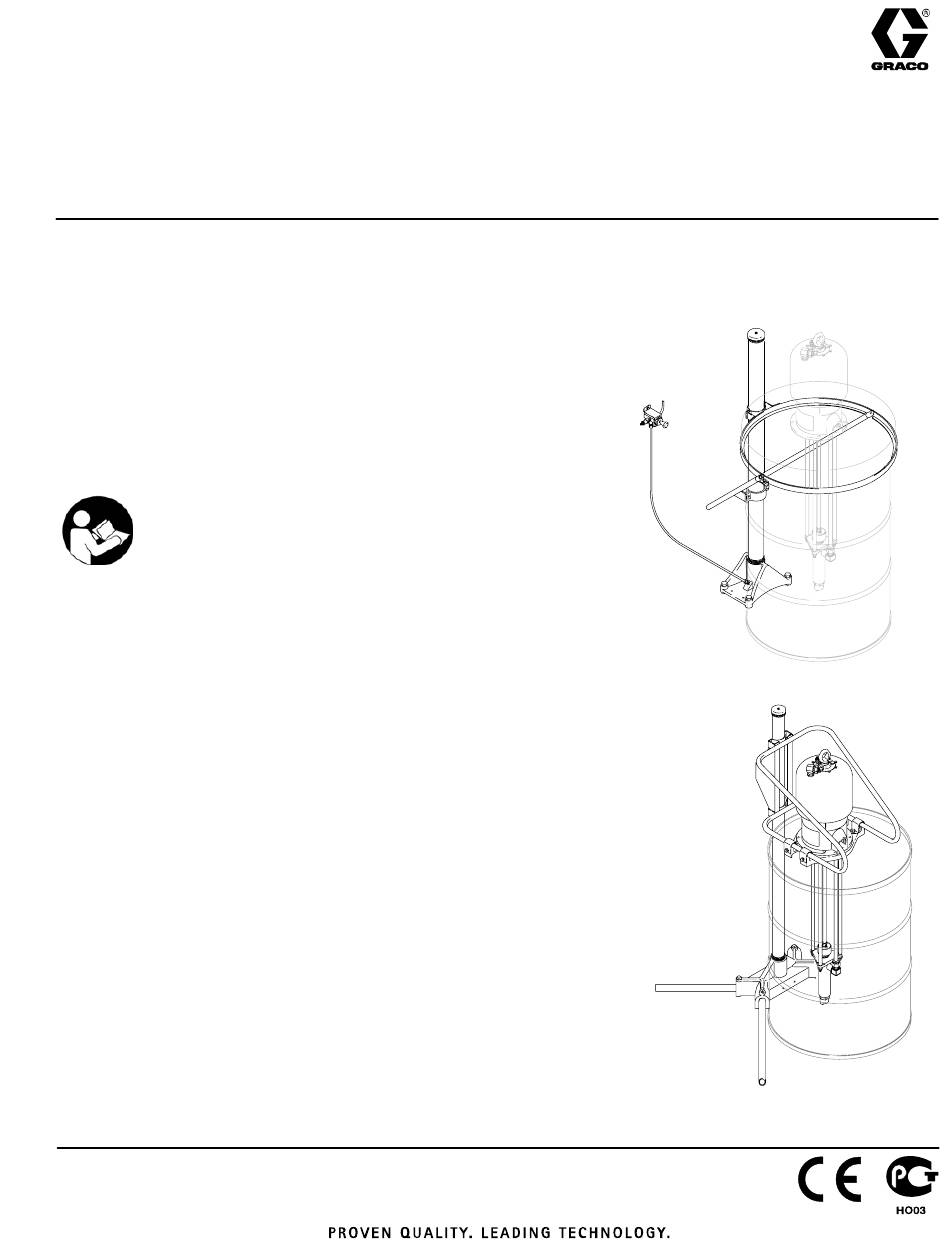

    Instructions–Parts List Elevators and Pump 306287U Supports Used to raise and lower select Graco circulation and supply pumps. For professional use only. 200 psi (1.4 MPa, 14 bar) Maximum Air Input Pressure Important Safety Instructions Read all warnings and instructions in this manual.

  • Page 2: List Of Models

    List of Models ELEVATORS Parts List Part Number Series Description page 204385 Standard Elevator with Fixed Mounting 206231 Standard Elevator with Movable Mounting 207408 Heavy Duty Elevator with Fixed Mounting – Designed with increased strength and rigidity to allow frequent raising and lowering loads ranging between 120 –...

  • Page 3: Warnings

    D This equipment is for professional use only. D Read all instruction manuals, tags, and labels before operating the equipment. D Use the equipment only for its intended purpose. If you are uncertain about usage, call your Graco distributor. D Do not alter or modify this equipment. Use only genuine Graco parts and accessories.

  • Page 4: Installation

    NOTE: Reference numbers and letters in parentheses in the text refer to the callouts in the figures and the parts drawing. NOTE: Always use Genuine Graco Parts and Acces- sories, available from your Graco distributor. If you supply your own accessories, be sure they are ade- quately sized and pressure rated for your system.
  • Page 5 (14 or 28). 06531 Raise the tube 0.25 in. (6.4 mm), then tighten the clamp screws (42). See Fig. 4. Fig. 5 14 or 28 49, 45 44, 42 17 or 22 06529 Fig. 4 306287...

  • Page 6: Operation

    Operation Starting and Adjusting the Elevator 6. Before operation, ensure that all fasteners and tube connections are tightened securely. You must adjust the elevator to ensure that the cover is supported by the drum. NOTE: To increase or decrease the operating speed of the elevator, loosen the hex nut of the restrictor valve 1.

  • Page 7: Service

    Service Lubrication Seals and Gaskets Every two to six weeks, take the cap (20) off the riser To replace the leather cup packings (10), screw the tube (14 or 28) and put a few drops of light, high grade bearing housing (25) out of the riser tube (14 or 28) motor oil on the inside surface of the tube to lubricate and slide the tube up off the piston (11).

  • Page 8: Parts

    Elevator Parts Add Loctite TL–222 to threads Torque to 90–130 ft-lb (122–175 NSm) Torque to 30–60 ft-lb (40–80 NSm) Apply Loctite 542 Sealant to threads Apply tape Torque to 20–40 ft-lb (37–54 NSm) Apply lubricant to inside surface Torque to 15–20 ft-lb (20–27 NSm) 9 or 18 14 or 28 16 or 27...
  • Page 9 Elevator Parts Model 204385, Series C (see page 8) Model 205332, Series A (see below) Standard Elevator with Fixed Mounting Bare Elevator Includes items 3–17, 19–21, 25–26, 30 below Includes items 1–16 below Ref. Part No. Description Qty. Model 206231, Series B (see page 8) 203743 VALVE, restrictor;...
  • Page 10 Support and Control Parts Screw firmly against seat, Ref. No. 31: 206232 Pump Support Assembly back off 1/4 turn Apply adhesive Ref. No. 41: 207562 Cover Support Assembly 43 44 06525 06526 Ref. No. 50: 207561 Air Control Kit 1/8 npt 06527 306287...
  • Page 11 Support and Control Parts Ref. Ref. Part No. Description Qty. Part No. Description Qty. 206232 PUMP SUPPORT ASSEMBLY 100113 . FITTING, straight; 0.25” (6.4 mm) Includes items 32–40 tube, 1/8 npt 100057 . SCREW, hex hd cap; 5/16–18 x 3/4” 8 154634 .
  • Page 12 Support and Control Parts Model 237746, Series A Standard Elevator with Fixed Mounting Includes 204385 Elevator (see page 8), 237579 Air Control Kit, and 237578 Cover Support Assembly Model 237747, Series A Standard Elevator with Movable Mounting Includes 206231 Elevator (see page 8), 237579 Air Control Kit, and 237578 Cover Support Assembly Model 241663, Series A Standard Elevator with Fixed Mounting Includes 204385 Elevator (see page 8), 207561 Air Control Kit (see page 11), and 207562 Cover Support...
  • Page 13 Support and Control Parts Model 237746, Series A Standard Elevator with Fixed Mounting Includes 204385 Elevator (see page 8), 237579 Air Control Kit, and 237578 Cover Support Assembly Model 237747, Series A Standard Elevator with Movable Mounting Includes 206231 Elevator (see page 8), 237579 Air Control Kit, and 237578 Cover Support Assembly Model 241663, Series A Standard Elevator with Fixed Mounting Includes 204385 Elevator (see page 8), 207561 Air Control Kit (see page 11), and 207562 Cover Support...
  • Page 14 Notes 306287...

  • Page 15: Dimensions

    Dimensions NOTE: For elevator height dimensions, refer to Fig. 2 and the text on page 4. 5.5” (140 mm) 8.88” (225.9 mm) 0.56” (14.2 mm) Holes 06533 306287...

  • Page 16: Graco Warranty

    With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
