Futech T-BEVEL-30 Quick Start Manual

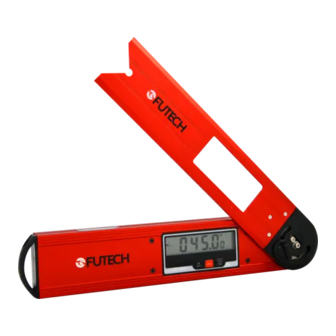

DESCRIPTION

1. Power On/Off button
2. Hold button
3. Zero/Absolute button
4. Battery compartment circle
5. Display
6. Moving blade
SAFETY
Please read the complete safety instructions in the booklet delivered with this device.
FIRST USE
Remove protective films where applied.
Open the [4] battery compartment by turning the black circle counterclockwise (as indicated with. the 'open'
arrow) and insert the battery. Close the [4] circle again by turning in a clockwise direction. For turning the
circle, use your fingers. If this is not possible, use the dots to gain more friction on the circle.
Type of battery: 1 x 3V CR2032 battery (Lithium)
POWER
To power on the device, shortly press the [1] Power On/Off button.
To power off the device, shortly press the [1] Power On/Off button.
USAGE
S
ELECT STARTING POINT
Turn the [6] moving blade to the preferred zero position. Hold the [3] Zero/Absolute button for three seconds
to set the current angle as the zero position. 'ABS' appears on the display. All measurements refer to this angle.
Note: this function becomes useful when transferring angle measurements.
A
BSOLUTE MODE
Absolute measuring mode is selected when 'ABS' is shown on the [5] display. To change between modes,
shortly press the [3] Zero/Absolute button. When in absolute mode, the reference is saved internally when
powering off the device.
Note: the display can rotate, it is always readable upright.
L
OCKING AN ANGLE
The [6] moving blade can be locked at any angle by turning the screw on the moving blade clockwise firmly. To
release the locked angle, turn the screw counterclockwise.
RECALIBRATION
Start by closing the [6] moving blade. The blade covers the device (the device is in its smallest form). Enter the
absolute mode (see: Absolute mode) and hold the [3] Zero/Absolute button for 5 seconds. The zero position is
set. Your device is now calibrated.
MAINTENANCE
Repairs or services are not covered in this manual and should only be carried out by qualified trained
technicians. Periodically, wipe the body with a dry cloth. Do not use abrasives or solvents on this instrument.
For service, use only manufacturer's specified parts.
992D.TBEVEL.30_DIGICORNER_MANUALENG.DOCX
( )
FALSE ZERO
WWW.FUTECH-TOOLS.COM 1
