EN

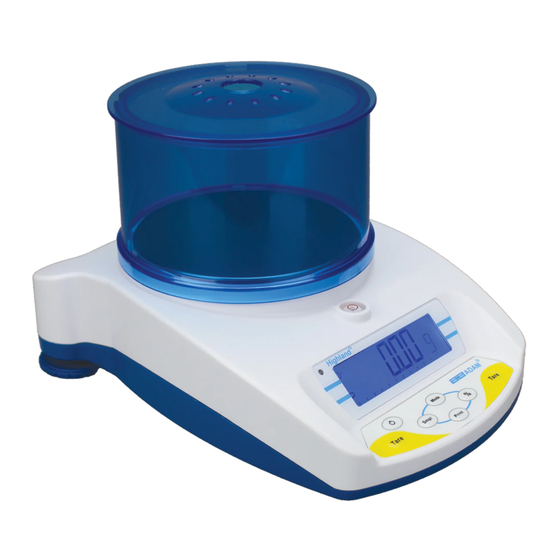

HIGHLAND SERIES
© Adam Equipment Company
(Includes HCB xxxM EU & NTEP approved models)
(HCB Software ver. 2.33 or higher – standard models)
(HCB‐M Software. rev 2.39 – EU approved models)
(HCB‐aM Software rev. 3.11 – NTEP approved models)
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
Visit us at www.TestEquipmentDepot.com
2018
Adam Equipment
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Adam Equipment HCB 1002
Summary of Contents for Adam Equipment HCB 1002
- Page 1 EN Adam Equipment HIGHLAND SERIES (Includes HCB xxxM EU & NTEP approved models) (HCB Software ver. 2.33 or higher – standard models) (HCB‐M Software. rev 2.39 – EU approved models) (HCB‐aM Software rev. 3.11 – NTEP approved models) 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com © Adam Equipment Company 2018 1 ...
- Page 2 EN Easy Reference: Model name of the scale: Serial number of the unit: Software revision number (Displayed when power is first turned on): Date of Purchase: Name of the supplier and place: © Adam Equipment Company 2018...
-
Page 3: Table Of Contents
6.6 ADJUST THE VALUE OF THE INTERNAL MASS…………………………………………………………….. 20 6.7 SETTING USER PARAMETERS……………………………………………………………………………………… 21 7.0 CALIBRATION……………………………………………………………………………………………………….... 22 8.0 TROUBLE SHOOTING ……………………………………………………………………………………………………………… 24 8.1 ERROR MESSAGES …………………………………………………………………………………………………….. 24 9.0 SPECIFICATIONS……………………………………………………………………………………………………………………… 25 9.1 TECHNICAL SPECIFICATIONS………………………………………………………………………………………. 25 9.2 COMMON SPECIFICATIONS……………………………………………………………………………………….. 26 9.3 RS232 / USB SPECIFICATIONS ……………………………………………………………………………………. 26 10.0 CALIBRATION CERTIFICATE…………………………………………………………………………………………………… 29 11.0 WARRANTY STATEMENT………………………………………………………………………………………………………. 29 © Adam Equipment Company 2018... -
Page 4: Introduction
2) Remove the shipping protection screw and transit disc from the top of the balance and place the plastic top pan support on the balance. Do not use excessive force when removing and installing the screw. 3) Gently place the plastic pan support into the receptacle and secure with the supplied screw. To not over‐tighten the screw. It should be finger tight only. Put the Stainless steel pan on top of the pan support © Adam Equipment Company 2018... -
Page 5: Display / Keyboard Function
[Print] To print the results to a PC or printer Secondary function is to return to using RS‐232 or USB interface. It also normal operation when the balance is adds the value to the accumulated in a parameter setting mode. memory if the accumulation function Setting parameters it will show the is not automatic. previous option or decrease the value of a flashing digit. © Adam Equipment Company 2018... -
Page 6: Internal Rechargeable Battery
NLY PPROVED MODLES 3.3 INTERNAL RECHARGEABLE BATTERY The balance can be operated from the internal rechargeable battery or using a DC adapter. The battery discharge time, is approximately 24 hours depending on the usage of the backlight. The display will show an indication when the battery needs to be charged. To charge the battery, plug in the DC adapter at the back of the balance and attach it to the main power supply. The charging indicator at the left top corner of the LCD will be on. © Adam Equipment Company 2018... -
Page 7: Locating And Protecting Your Balance
The Highland has a stacking feature for stacking more than one unit on top of each other which does not apply weight to the pan. For more details on this see the section on storing. Avoid operating in high static areas, or weighing high static materials, such as plastics or powders, as this may damage electronics and affect measurements. Use grounding mats or bonding straps to reduce potential © Adam Equipment Company 2018... -
Page 8: Storing When Not In Use
EN 3.5 STORING WHEN USE If you have any of the Highland series or Core Balance lines you can store them easily on top of each other. To save space and protect them from damage. Without Shield With Shield Note: Only models equipped with a ø 4.7” / 120mm pan, can be stacked for storage. Core (CQT) models with the larger ø 5.7” / 145mm may be stacked at the top of the pile but other balances should NOT be stacked on top of them due to the larger pan size. © Adam Equipment Company 2018... -
Page 9: Basic Operation
[‐>0/T<‐] key. Providing the container weight is more than 4% of the maximum capacity of the balance (+/‐ 2% for approved models), the digits will show zero and NET will light up on the display. You can then weigh your sample in the container. Taring weight subtracts from the total balance capacity. © Adam Equipment Company 2018... -
Page 10: Weighing
The stable indicator will light when the reading is stable. WEIGHING UNITS To change the weighing units, press [Mode] to cycle through the options of units that are enabled. See Parameters 6.1 Enabling Weighing Units, to enable or disable the weighing units. Weighing Units on approved models = g , Kg, ct © Adam Equipment Company 2018... -
Page 11: Functions
1) Place your container on the balance and press the [‐>0/T<‐] key as described in 4.2 Zeroing / Tare section. This will remove the weight of the container from your count. 2) When the balance is in normal weighing mode with the initial quantity on the balance, press the [Smpl] key to start the parts counting function. 3) The initial number of samples should match the options for parts counting, 10, 20, 50, 100 or 200 pieces. © Adam Equipment Company 2018... -
Page 12: Accumulation
1) Place the weight on the balance. If automatic then the balance will automatically accumulate the weight. If set to manual then you will need to press the [Print] key. 2) The display will show ACC 1 followed by the total value in the memory for 2 seconds before returning to displaying the weight of the item on the balance. 3) The weight will be transmitted to a printer or PC. 4) Remove the weight, allowing the balance to return to zero. 5) Put a second weight on. If set to automatic it will accumulate the weight automatically. If in manual mode, press [Print], the display will show ACC © Adam Equipment Company 2018... - Page 13 6) Continue until all weights have been added. To view the totals in memory press the [Print] key when the balance is at zero. The display will show ACC xx (where “xx” is the total number of readings) and the total weight, before returning to zero. At the same time the total will also be sent via the RS‐232 interface. To clear the memory, press [Smpl] once the total accumulation value is displayed after pressing [Print]. © Adam Equipment Company 2018...
-
Page 14: Parameters
Sets the print parameters F3 oFF See section 6.4 Sets the auto power‐off parameter F4 SEt See section 6.7 User Parameters for autozero, filter and stability tECH Service agents only Technical parameters setting mode / factory setting 6.1 ENABLING WEIGHING UNITS ) NOT APPROVED MODELS You can enable and disable the weighing units available to the user when they press the [Mode] key as described in section 4.4 Weighing Units. 1) To set this parameter press and hold the [Mode] key during self‐checking test when turning on the balance. 2) After a few seconds, the display will show the first function F1 UNT. 3) Press the [‐>0/T<‐] key to view the current settings of each unit. 4) Pressing the [‐>0/T<‐] key will cycle through the other units along with their current settings. For example, if oFF is displayed with the weighing unit Carats, the user will not be able to use this unit while weighing. © Adam Equipment Company 2018... - Page 15 Hongkong Taels‐ used to weigh coral, 0.026717 TL.H pearls, etc. Taels C. China (Singapore)Taels 0.026455 TL.C Taels t. Taiwan Taels 0.026667 TL.t Tola An Asian weighing unit 0.085735 t Newtons Used to measure force 0.009807 N Grams Grams with last digit suppressed Tales J. Japan Taels 0.026717 TL.J * Lbs are not available on HCB 123 Model © Adam Equipment Company 2018...
-
Page 16: Setting The Backlight And Audible Alert Beep
6.3 SETTING PRINTING PARAMETERS ACCUMULATION 1) To set this parameter press the [Mode] key during self‐checking test when turning on the balance. 2) After a few seconds, the display will show the first function F1 UNT. 3) Keep pressing the [Mode] key until F3 SEr is displayed. 4) Press the [‐>0/T<‐] key to view the current settings. © Adam Equipment Company 2018... - Page 17 Press the [Mode] key to change the setting. Press [‐>0/T<‐] to confirm and move to the next parameter. 7) Setting the baud rate. This is the transmission speed for communication with printers and computers. The selected rate must match that of the other device for communications to work. The following settings are available: b 1200 b 2400 b 4800 b 9600 © Adam Equipment Company 2018...
-
Page 18: Auto Power Off
POWER OFF The auto power off function helps conserve power, when using the internal rechargeable battery or DC adapter. The Auto switch‐off time may be set up by the user. 1) To set this parameter press the [Mode] key during self‐checking test when turning on the balance. 2) After a few seconds, the display will show the first function F1 UNT. © Adam Equipment Company 2018... -
Page 19: Selecting The Internal Or External Calibration
1) To set this parameter press the [Mode] key during self‐checking test when turning on the balance. 2) After a few seconds, the display will show the first function F1 UNT. 3) Keep pressing the [Mode] key until F5 IEC is displayed. 4) Press the [‐>0/T<‐] key to view the current settings. 5) To change the settings press the [Mode] key to change from INt (internal calibration) or E (external calibration) 6) Press [‐>0/T<‐] to store a particular setting. The display will return to F5 IEC 7) When F5 IEC is displayed press the [Print] key to return to weighing or press [Mode] to go to the next function. © Adam Equipment Company 2018... -
Page 20: Adjust The Value Of The Internal Mass
7) When CA is displayed, press the [Print] key to return to weighing or press [Mode] to go to the next function. NOTE: Changing the value of the internal weight will affect the calibration when using the internal calibration. To check if your internal weight is correct you should only use high quality weights that are accurate to the readability of the balance. © Adam Equipment Company 2018... -
Page 21: Setting User Parameters
ZEO 4 ZEO 0 to 8, 0 being with auto zero off, and 8 is the zero range of 4 divisions. Stability symbol range, 0 to 5 n STA 2 STA 0 is the smallest stability range and 5 is largest. n ZTR Weight Tracking Range, 0 to 5 3 ZTR Press the [‐>0/T<‐] key to view the current settings. To change the settings press the [Mode] key. Press the [‐>0/T<‐] key to advance to the next parameter. When completed the display will show F7 SET again. Pressing [Mode] will then show TECH. This function is a manufacturing function for qualified technicians only and you can press [Mode] again to scroll through parameter options, or press [Print] to return to normal weighing. © Adam Equipment Company 2018... -
Page 22: Calibration
4) When the stable indicator shows press the [‐>0/T<‐] key. 5) The display shows C Int. Press the [‐>0/T<‐] key 6) The display shows LoAd. Lower the internal calibration mass located behind the pan. Use the handle to help lower the weight as far as it will go. Press the [‐>0/T<‐] key once the stable sign is shown. 7) The display will show PASS. Rotate the weight back to its off position. Once removed the balance will return to zero. © Adam Equipment Company 2018... - Page 23 2) The display shows LoAd. Place your weight on the pan. Press [‐>0/T<‐] key once the stable sign is shown. 3) The display will show PASS. Remove the weight from the pan. NOTE: If the calibration fails retry. The balance will show FAlL H (when the weight is higher) or FAlL L (when the weight is lower). Repeat the process using the correct calibration weight. © Adam Equipment Company 2018...
-
Page 24: Trouble Shooting
Air movement, nothing touching the pan. Make vibration or instability. sure the internal weight is in the off position. Make sure the balance is level. Try recalibrating. Low Battery indicator. Internal battery may be Charge the battery or replace flat. internal rechargeable battery. Unstable – balance Possible damage to the Make sure the balance is on a flat cannot get a stable mechanics / Loadcell. surface and away from vibration. reading. Make sure the calibration weight is in its off position. Red Light Low Battery indicator. Internal battery may be Charge the battery or replace on front flat. internal rechargeable battery. panel No Power when Internal battery may be Charge the battery or replace turning on. flat. internal rechargeable battery. © Adam Equipment Company 2018... -
Page 25: Specifications
Readability (d) 0.001 g 0.05 g 0.01 g 0.01 g 0.5 g 0.5 g Repeatability (s.d.) Readability (e) 0.01 g 0.05 g 0.1 g 0.1 g 0.5g 0.5.0 g Linearity ± Pan 120mm / 4.7” ø Draft shield Included as standard Units of Measure g / ct / oz / GN / ozt / dwt certain models include: kg / lb © Adam Equipment Company 2018... -
Page 26: Common Specifications
OR APPROVED MODELS THESE VALUES ARE FOR GUIDE PURPOSES ONLY COMMON SPECIFICATIONS Interface USB and RS‐232, bi‐directional Stabilization Time 3 Seconds typical Operating Environment (M) 15°C to 35°C / 59°F to 95°F Power supply (external) 12VDC 800 mA Calibration HandiCal Internal calibration or external calibration ‐ User selectable Display 18mm high 6 digits LCD With auto backlight and loading bar graph Scale Housing ABS Plastic with Stainless Steel Pan Overall Dimensions (wxdxh) 170 x 245 x 150mm / 6.7” x 9.6” x 6” HCB 6001 With Draft Shield 170 x 245 x 80mm / 6.7” x 9.6” x 3.1” Net Weight 1.7 kg / 3.7 lb 1.9 kg / 4.1 lb © Adam Equipment Company 2018... -
Page 27: Rs-232 / Usb Specifications
N o . _ _ _ _ _ _ _ _ _ 0 1 <cr> <lf> 16 ASCII Characters, Increments every time a weight is stored in memory T o t a l _ _ _ 1 2 3 . 4 5 _ g _ <cr> <lf> 19 Characters, The total weight stored in memory <cr> <lf> Includes 2 blank lines <cr> <lf> © Adam Equipment Company 2018... - Page 28 (i.e 123.45dwt). Input command format: The scale can be controlled with the following commands. The commands must be sent in upper case letters, i.e. “T” not “t”. T<cr><lf> Tares the scale to display the net weight. This is the same as pressing [‐>0/T<‐] key. Z<cr><If> Sets the zero point for all subsequent weighing. Display shows zero. T5.345<cr><if> Would be same as entering a preset tare value of 5.345 from keypad P<cr><lf> Prints the results to a PC or printer using the optional RS‐232 interface. It also adds the value to the accumulation memory if the accumulation function is not set to automatic. © Adam Equipment Company 2018...
-
Page 29: Calibration Certificate
Repairs carried out under the warranty does not extend the warranty period. Components removed during the warranty repairs become the company property of Adam Equipment. The statutory right of the purchaser is not affected by this warranty. The terms of this warranty are governed by the Laws of England and Wales. For complete details on Warranty Information, see the terms and conditions of sale available on our web‐site. © Adam Equipment Company 2018... - Page 30 WARNING: This product includes a sealed lead-acid battery which contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Adam Equipment products have been tested with, and are always supplied with mains power adaptors which meet all legal requirements for the intended country or region of operation, including electrical safety, interference and energy efficiency.
- Page 31 EN © Adam Equipment Company 2018...
- Page 32 ‐Crane scales ‐Mechanical and Digital Electronic Health and Fitness Scales ‐Retail Scales for Price computing © Copyright by Adam Equipment Co. All rights reserved. No part of this publication may be reprinted or translated in any form or by any means without the prior permission of Adam Equipment. Adam Equipment reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
