ARG600 Single SIM Variant
User Manual
GUID-54FB05F6-B156-4CF5-8E22-F9A5BC2E7E0C V1 EN-US

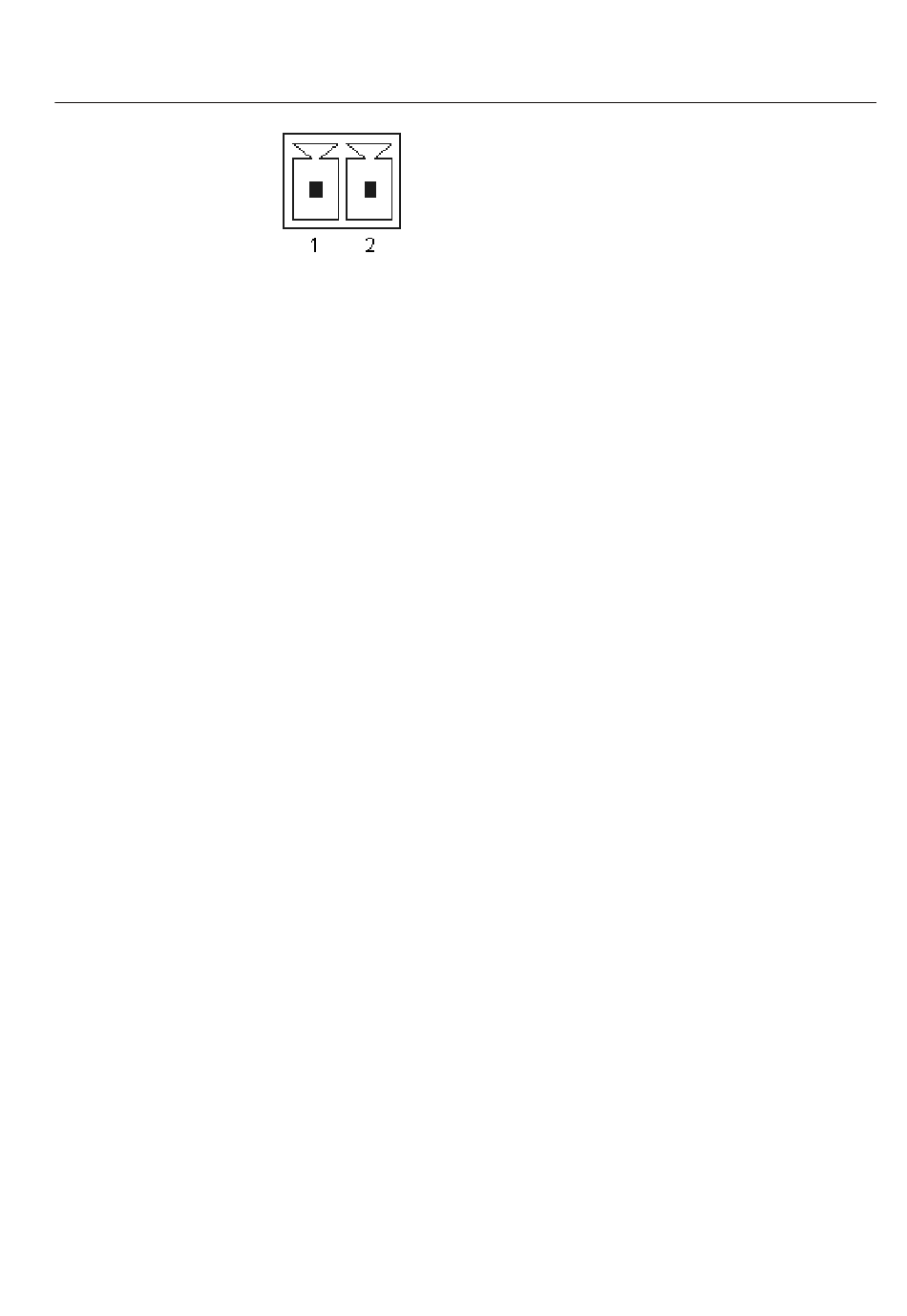

Figure 2: Power supply connector
Pin 1 Positive (+)
Pin 2 Negative (-)
The unit is protected against reversed polarity in specified voltage range.
Power switch
The power switch enables or disables the operation of the device.
Console enable switch
The console enable switch enables or disables console access. When it is disabled,
both serial ports may be used as an application serial port. When the switch is in
the right position, RS1 is in serial port mode and when in the left position, RS1 is
in console mode.
DIP switches
The DIP switches select an application port (RS2) mode and settings (RS-232 or
RS-485). By default, all DIP switches are set to the 0 position (RS-232 mode). DIP
switches 2...4 apply only when DIP switch 1 is set to differential mode (RS-485/
RS-422).
