ABB ARG600 ANSI Product Manual

Wireless gateway
Hide thumbs Also See for ARG600 ANSI:
Table of Contents

Advertisement

Quick Links

See also: User Manual
—
Wireless Gateway
ARG600 ANSI
Product Guide

Advertisement

Table of Contents
loading

Related Manuals for ABB ARG600 ANSI

Summary of Contents for ABB ARG600 ANSI

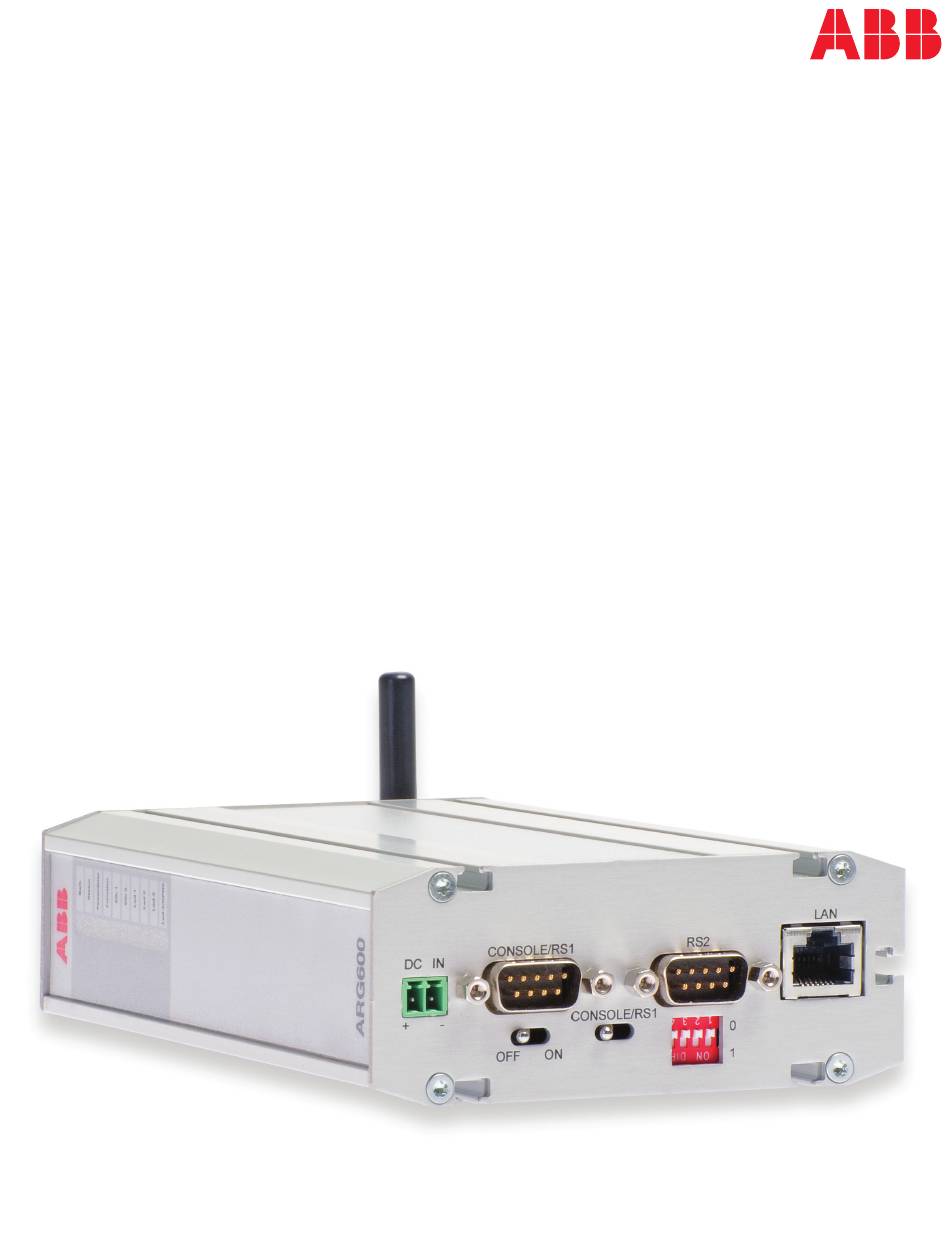

  • Page 1 — Wireless Gateway ARG600 ANSI Product Guide...

  • Page 2: Table Of Contents

    12. Document revision history..........16 Disclaimer The information in this document is subject to change without notice and should not be construed as a commitment by ABB. ABB assumes no responsibility for any errors that may appear in this document. © Copyright 2018 ABB.

  • Page 3: Description

    This enables to fully maximize the usage of the existing application. For example, the video surveillance of Wireless Gateway ARG600 is a member of ABB’s Arctic product traffic can now be integrated into the same system. family and part of its 600 Wireless Gateway product series.

  • Page 4: Application

    • Wireless monitoring and control of IEC-101, IEC-104, DNP cooperation with other ABB grid automation equipment. Further, and Modbus field devices via cellular network the devices can be used in secondary substations for various •...
  • Page 5 Wireless Gateway 1MRS758866 B ARG600 ANSI Product version: 3.4.5 Distribution Power generation substation Reclosers GPRS/3G/LTE Cellular network Internet ARM600 Secondary substation Control room SCADA / DMS Consumers GUID-E9E4368B-4014-4974-A662-C50D01401F02 V1 EN Figure 2. Communication solution in distribution automation overview...

  • Page 6: Physical Interfaces

    Wireless Gateway 1MRS758866 B ARG600 ANSI Product version: 3.4.5 4. Physical interfaces LED panel Wireless Gateway ARG600 has two serial ports (RS-232, RS-485) The LED panel of the device contains LEDs to indicate the and one LAN/WAN port (RJ-45) for device connectivity. For complete operational status of the device.
  • Page 7 Wireless Gateway 1MRS758866 B ARG600 ANSI Product version: 3.4.5 Table 1. Description of available LEDs Label State Description Batt LED unassigned Status VPN connection is up Flashing VPN connection is starting VPN connection is disabled Power/Error Operating power is turned on...
  • Page 8 Wireless Gateway 1MRS758866 B ARG600 ANSI Product version: 3.4.5 Front panel GUID-FD7297D1-5F9C-49CF-82F0-AF5D989D035D V2 EN Figure 4. Front panel 1 Power supply 12...48 VDC 2 Console/serial port 3 Application serial ports 4 LAN/WAN port 5 Power switch 6 Console/serial port switch...

  • Page 9: Communication

    Wireless Gateway 1MRS758866 B ARG600 ANSI Product version: 3.4.5 Antenna panel The SIM card slot and antenna connector can be found on the antenna panel. 5. Communication for multiple field devices' connectivity by serial and Ethernet Wireless Gateway ARG600 provides a complete solution for...

  • Page 10: Technical Data

    Wireless Gateway 1MRS758866 B ARG600 ANSI Product version: 3.4.5 6. Technical data Table 2. Dimensions Description Value Width × Height × Depth 108 × 45 × 175 mm (without antenna) Table 3. Hardware Description Value Processor environment Processor 32 bit RISC...
  • Page 11 Wireless Gateway 1MRS758866 B ARG600 ANSI Product version: 3.4.5 Table 5. Network interfaces (single SIM variants) Description Value Ethernet ports Ethernet/LAN 10/100 Base-T. Shielded RJ-45 1.5 kV isolation transformer Ethernet IEEE 802-3, 802-2 Serial ports Serial 1/Console RS-232 DTE Male DB-9 connector...
  • Page 12 Wireless Gateway 1MRS758866 B ARG600 ANSI Product version: 3.4.5 Table 8. LTE frequency band support Band Frequency Variant code Band 2 1850...1910 MHz 1930...1990 MHz ARG600A1270NA, ARG600A1290NA Band 4 1710...1755 MHz 2110...2155 MHz ARG600A1270NA, ARG600A1290NA Band 5 824...849 MHz 869...894 MHz...
  • Page 13 Wireless Gateway 1MRS758866 B ARG600 ANSI Product version: 3.4.5 Table 11. Supported RF data bandwidth Technology Data rate Category 3 downlink: 100 Mbps and uplink 50 Mbps (20 MHz bandwidth) UMTS, HSDPA, HSUPA, HSPA+ HSPA+ rates, Downlink up to 42 Mbps (category 24) and uplink up to 5.76...

  • Page 14: Mounting

    Wireless Gateway 1MRS758866 B ARG600 ANSI Product version: 3.4.5 7. Mounting performance to a very high extent. In this case, it is highly The devices have been equipped with mounting arrangements recommended to use the optional external antenna with that are specially designed for DIN rail mounting. A set of DIN rail appropriate cable.

  • Page 15: References

    Wireless Gateway 1MRS758866 B ARG600 ANSI Product version: 3.4.5 11. References www.abb.com/substationautomation portal provides information on the entire range of distribution automation products and services.

  • Page 16: Document Revision History

    Wireless Gateway 1MRS758866 B ARG600 ANSI Product version: 3.4.5 12. Document revision history Document revision/date Product version History A/2017-09-22 First release B/2018-06-29 3.4.5 Content updated to correspond to the product version...
  • Page 20 — ABB Inc. 4300 Coral Ridge Drive Coral Springs, Florida 33065, USA Phone +1 954 752 6700 +1 954 345 5329 Phone +1 800 222 1946 (Customer Service 24/7) www.abb.com/mediumvoltage www.abb.com/substationautomation © Copyright 2018 ABB. All rights reserved.
