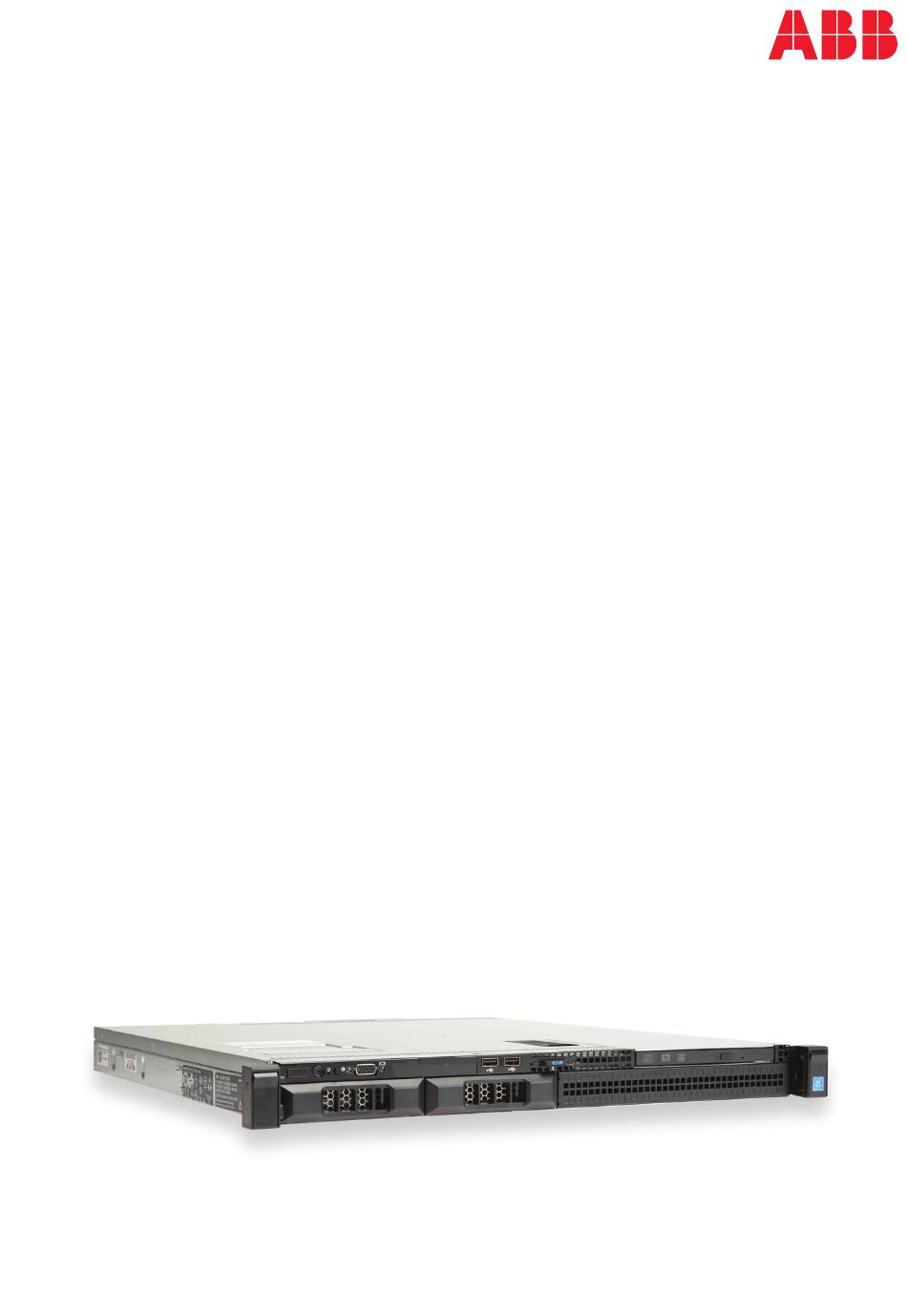

- Page 1 — M2M Gateway ARM600 Product Guide...
-
Page 2: Table Of Contents
10. Document revision history........... 11 Disclaimer The information in this document is subject to change without notice and should not be construed as a commitment by ABB. ABB assumes no responsibility for any errors that may appear in this document. -
Page 3: Description
Arctic 600 series – OpenVPN bridging wireless gateways and enables advanced remote – Connection to ARM600 with a PC from any location via management of all connected Arctic gateways and ABB's RIO600 devices • Firewall to restrict unauthorized access •... -
Page 4: Deployment
Arctic 600 series wireless gateways addressing is not required from ARM600 as the cellular can be routed to ARM600 via the public Internet. A fixed IP operator provides fixed IP addresses for the SIM cards. The... -
Page 5: Arctic Patrol
• Individual or mass updates of all connected RIO600 gateways. The Arctic Patrol interface can be accessed via firmware ARM600. It offers information about the entire communication system status at a glance. • Pre-installed in M2M Gateway ARM600 • Condition monitoring of cellular connections •... -
Page 6: Physical Interfaces
Standard edition can be connected to a maximum of Standard edition 300 Arctic 600 series wireless gateways, whereas the The ARM600 standard edition is designed to be mounted into a enterprise edition can take up to 3000 connections. The 19” rack. - Page 7 3 Video (VGA) connector 4 Ethernet connector for WAN #1 (Gb1) 5 Ethernet connector for LAN #2 (Gb2) Enterprise edition The ARM600 enterprise edition is designed to be mounted into a 19” rack. GUID-4673F94B-E625-408D-B504-8BDC8D9E6D50 V1 EN Figure 7. Front panel...
- Page 8 M2M Gateway 1MRS758481 C ARM600 Product version: 4.4.1 GUID-D6042498-542B-424D-A76D-C4B0ECB612B5 V1 EN Figure 8. Back panel 1 Ethernet connector for LAN #1 (eth0) 2 iDRAC 3 Power supply health/activity indicators 4 Video (VGA) connector 5 Ethernet connector for WAN #2 (eth1)
-
Page 9: Technical Data
M2M Gateway 1MRS758481 C ARM600 Product version: 4.4.1 6. Technical data Table 1. Dimensions Description Standard edition Enterprise edition Height × Width × Depth 42.8 × 434.0 × 495.0 mm 42.8 × 434.0 × 607.0 mm 1.69 × 17.09 × 19.49 in 1.69 ×... -
Page 10: Mounting
Max Arctic connections 3000 Size 1U 19" 1U 19" 9. Tools The devices can be configured using a graphical user interface via a Web based browser. A conventional console interface is also provided. GUID-9A149E91-55D9-4CBA-8A56-E25C98C5CD87 V1 EN Figure 9. ARM600 user interface... -
Page 11: Document Revision History
M2M Gateway 1MRS758481 C ARM600 Product version: 4.4.1 10. Document revision history Document revision/date Product version History A/2015-12-18 First release B/2017-09-29 Content updated to correspond to the product version C/2018-06-29 4.4.1 Content updated to correspond to the product version... - Page 16 — ABB Distribution Solutions Distribution Automation P.O. Box 699 FI-65101 VAASA, Finland Phone +358 10 22 11 www.abb.com/mediumvoltage www.abb.com/substationautomation © Copyright 2018 ABB. All rights reserved.
