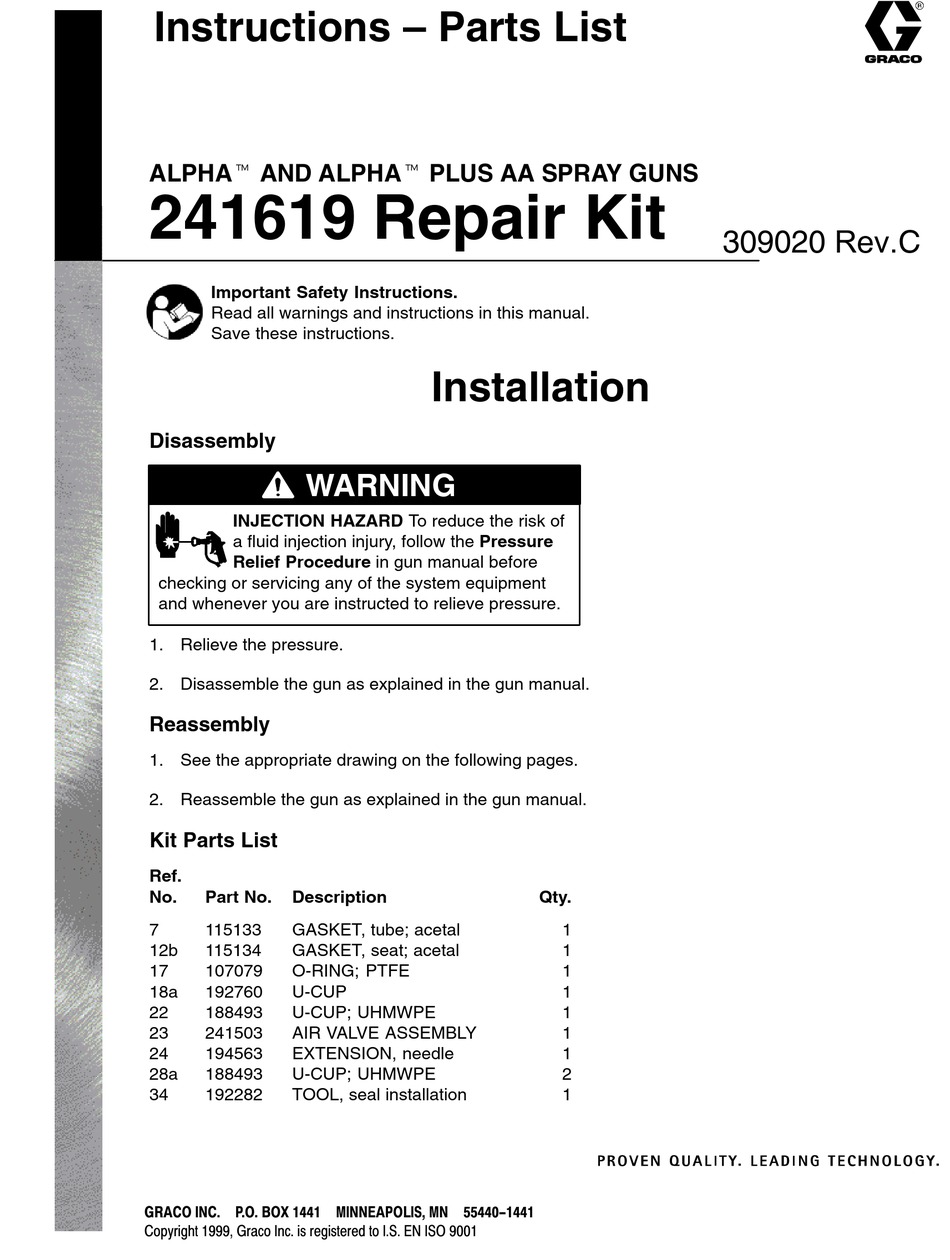

Page 1
O-RING; PTFE 192760 U-CUP 188493 U-CUP; UHMWPE 241503 AIR VALVE ASSEMBLY 194563 EXTENSION, needle 188493 U-CUP; UHMWPE 192282 TOOL, seal installation GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441 Copyright 1999, Graco Inc. is registered to I.S. EN ISO 9001...
Page 2
Installation Alpha AA Spray Gun, Models 241508, 241509, 241510, and 241511 Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Î Torque to 105–115 in-lb (12–13 NSm) Torque to 195–205 in-lb (22–23 NSm) Lightly lubricate...
Page 3
Installation Alpha Plus AA Spray Gun, Models 243573, 243574, 243575, 243576, and 243577 12b* Torque to 105–115 in-lb (12–13 NSm) Lightly lubricate Tighten with finger pressure only. Do not overtighten! Torque to 125–135 in-lb (14–15 NSm) Torque to 20–30 in-lb (2.3–3.4 NSm) Lubricate both sides of pivot pin Always install a new seat gasket (12b) when- ever you remove the seat assembly (13)
Page 4
With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
