INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
Contact your local dealer with questions on installation, operation or service.
NOTICE: SAVE THESE INSTRUCTIONS
Model(s):

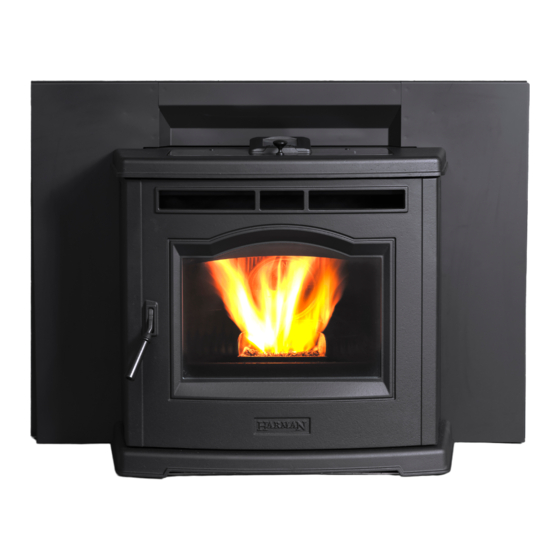

P42i-TC Pellet Insert
Check building codes prior to installation.
• Installation MUST comply with local, regional, state and
national codes and regulations.
• Contact local building or fire officials about restrictions
and installation inspection requirements in your area.
Tested and approved for wood pellets only. Burning of
any other type of fuel voids your warranty. When burning
higher ash content pellets more frequent cleanings may
be required.
1
Owner's Manual
Care and Operation
CAUTION
CAUTION
Harman® • P42i Owner's Manual • 2023 -___ • 03/23
Please read this entire manual before
installation and use of this pellet fuel-
burning room heater.
Failure to follow these instructions could
result in property damage, bodily injury
or even death.
• Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
• Do not overfire - If any external part starts to glow, you
are overfiring. Reduce feed rate. Overfiring will void
your warranty.
• Comply with all minimum clearances to combustibles
as specified. Failure to comply may cause house fire.
HOT SURFACES!
Glass and other surfaces are hot during
operation and cool down.
Hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
stove.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other
flammable materials.
• Keep clothing, furniture, draperies and other flammable
materials away.
NOTE
To obtain a French translation of this manual, please
contact your dealer or visit www.harmanstoves.com
Pour obtenir une traduction française de ce manuel, s'il
vous plaît contacter votre revendeur ou visitez www.
harmanstoves.com
WARNING
WARNING
8742-900A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Harman P42i-TC
Summary of Contents for Harman P42i-TC
- Page 1 When burning Pour obtenir une traduction française de ce manuel, s’il higher ash content pellets more frequent cleanings may vous plaît contacter votre revendeur ou visitez www. be required. harmanstoves.com Harman® • P42i Owner’s Manual • 2023 -___ • 03/23 8742-900A...
- Page 2 Manufactured by / Fabriqué par: Hearth and Home Technologies 352 Mountain House Road, Halifax PA 17032 8742-930A LABEL TICKET ECO: 96780 LABEL SIZE: 11” x 5.75” Harman® • P42i Owner’s Manual • 2023 -___ • 03/23 8742-900A PART # / REV: 8742-930A ADHESIVE: N/A ORIGINATOR: Spidlet...
-
Page 3: Table Of Contents
• Yearly Maintenance ......15 Harman® • P42i Owner’s Manual • 2023 -___ • 03/23... -
Page 4: Appliance Certification / Specifications
This wood heater needs periodic inspection and repair for proper operation. It is against federal regulations to operate Harman is a registered trademark of Hearth & Home ® this wood heater in a manner inconsistent with operating Technologies. instructions in this manual. Harman® • P42i Owner’s Manual • 2023 -___ • 03/23 8742-900A... -
Page 5: Appliance Safety
SET MINIMUM LOW BURN RATE THAT MUST NOT BE ALTERED. IT IS AGAINST FEDERAL REGULATIONS TO ALTER THIS SETTING OR OTHERWISE OPERATE THIS WOOD HEATER IN A MANNER INCONSISTENT WITH OPERATING INSTRUCTIONS IN THIS MANUAL. Harman® • P42i Owner’s Manual • 2023 -___ • 03/23 8742-900A... -
Page 6: Helpful Hints
The P42i-TC Pellet Insert is approved for burning any grade basic safety standards. Read these instructions carefully of pelletized bio-mass fuel. before you attempt to operate the P42i-TC Pellet Insert. It should be noted, however, that higher ash content will Failure to do so may result in damage to property or personal require more frequent cleaning. -
Page 7: Epa Test Settings
FUEL, KEROSENE, CHARCOAL LIGHTER FLUID, OR SIMILAR LIQUIDS TO START OR 'FRESHEN UP' A FIRE IN THIS HEATER. KEEP ALL SUCH LIQUIDS WELL AWAY FROM THE HEATER, WHILE IN USE. Harman® • P42i Owner’s Manual • 2023 -___ • 03/23 8742-900A... -
Page 8: Quick Start Guide
3. Adjust arrows to set room desired temperature. 4. Touch the On/Off Power Icon. Refer to Touch Manual for all other operations. Please Note: The USB port on the EASY Touch Control is not a charging port for smartphones, tablets etc. Harman® • P42i Owner’s Manual • 2023 -___ • 03/23 8742-900A... -
Page 9: Frequently Asked Questions
Ensure holes in burnpot are clear of obstructions above the igniter. See Burnpot Maintenance. Check to see if the ignitor is getting hot, if not replace ignitor. *See addendum for manual ignition instructions for emergency heating needs. Harman® • P42i Owner’s Manual • 2023 -___ • 03/23 8742-900A... -
Page 10: Cleaning Prompts, Messages And Errors
Touch Control has lost communication to the stove. Call your Harman Dealer. Exhaust Sensing Probe (ESP) as failed. Clean the ESP. If issue persists, call your Harman Dealer. Clean your stove. Call your Harman Dealer if problem persists. Harman® • P42i Owner’s Manual • 2023 -___ • 03/23 8742-900A... -
Page 11: Maintenance And Service
YOU VACUUM THE STOVE. LIVE PELLET EMBERS, IF is not cool before unplugging. SUCKED INTO THE VACUUM, WILL LIGHT THE VACUUM • Risk of shock if appliance not unplugged before ON FIRE AND MAY ULTIMATELY CAUSE A HOUSE FIRE. servicing appliance. Follow the detailed instructions found in this section for each step listed in the chart below. Harman® • P42i Owner’s Manual • 2023 -___ • 03/23 8742-900A... -
Page 12: Quick Reference Maintenance Chart
4. Yearly cleaning is also known as a Total Clean. This requires completing all the Daily, Weekly, Monthly and Yearly maintenance mentioned. This should be done before you begin burning the unit each heating season. Harman® • P42i Owner’s Manual • 2023 -___ • 03/23 8742-900A... -
Page 13: Unit Maintenance
Removing the Center Medallion: 1. Lift up on the 2 bottom corners of the medallion until it is higher than the top of the flame guide. 2. Pull the bottom edge of the medallion front approximately 1 inch. 3. Pull downward on the corners of the medallion until the top is released from the retainer that keeps the top aligned when in place. Figure 2.2. Harman® • P42i Owner’s Manual • 2023 -___ • 03/23 8742-900A... - Page 14 Simply push the allen wrench down through each hole knock ash buildup from the igniter element and bracket. ensuring it is clear of any build-up paying attention not to damage the igniter element in the process. Figure 2.6. Clean Ash Accumulation Figure 2.8 Figure 2.6 Harman® • P42i Owner’s Manual • 2023 -___ • 03/23 8742-900A...
-
Page 15: Yearly Maintenance
NOTE: When re-installing the Combustion Cover Assembly make sure you insert the bottom of the cover first and then slide to the left to engage the bolt, prior to putting it into place. Lower Combustion Chamber Combustion Cover Assembly Figure 2.11 Harman® • P42i Owner’s Manual • 2023 -___ • 03/23 8742-900A... - Page 16 Figure 2.16. Inspect door gasket during cleaning and inspection Replace glass only with high temperature ceramic glass. (4) Glass Clips Open spring latch Figure 2.16 (4) 1/4-20 X 1/2” Button Head Screw Glass Gasket Figure 2.14 Harman® • P42i Owner’s Manual • 2023 -___ • 03/23 8742-900A...
- Page 17 It is recommend that a certified chimney sweep perform service and inspection to your chimney system to ensure your unit is vented safely and in accordance to local code. Harman® • P42i Owner’s Manual • 2023 -___ • 03/23 8742-900A...
-
Page 18: Reference Materials
P42i-TC Service Parts Beginning Manufacturing Date: May 2023 Pellet Insert Ending Manufacturing Date: Active 1-90-742200-1 - 20” Hopper 1-90-742240-1 - 24” Hopper Part number list on following page. 03/23 Harman® • P42i Owner’s Manual • 2023 -___ • 03/23 8742-900A... - Page 19 Spring Latches with hardware Set of 2 1-00-00927 Fan Blade 1-10-574500A Commonly required for Combustion Blower Blower Mounting Screws (5 Sets) 1-00-832150 replacement Combustion Blower 1-00-02275 Additional service parts on following page. Harman® • P42i Owner’s Manual • 2023 -___ • 03/23 8742-900A...
- Page 20 Burn Pot Cleanout Cover w/Wing Screws 2 sets 1-00-06623 18.5 Thumb Screw, 1/4-20 x 5/8 Pkg of 10 3-31-782108-10 Gasket, Burn Pot 3-44-237639 Flame Guide 3-00-03000 Additional service parts on following page. Harman® • P42i Owner’s Manual • 2023 -___ • 03/23 8742-900A...
- Page 21 Hinge Pin Plate w/Hardware 1 Set 1-00-777560 Dowel Pin, 1/4 x 3/4 Pkg of 15 3-30-2015-15 Hopper Lid Latch Release Kit w/Hardware 1-00-584345 Additional service parts on following page. Harman® • P42i Owner’s Manual • 2023 -___ • 03/23 8742-900A...
- Page 22 21.5 Latch Retainer 2-00-674098S 21.6 Glass Clips Pkg of 4 1-00-249140 21.7 Gasket, 3/16 Round w/PSA 10 FT 1-00-1186258229 21.8 Glass w/Gasket 1-00-677000 Additional service parts on following page. Harman® • P42i Owner’s Manual • 2023 -___ • 03/23 8742-900A...
- Page 23 3-44-677160-10 29.13 29.14 Pellet Air Intake Assembly 1-10-06810A 29.15 Gasket Feeder Air Intake Pkg of 6 3-44-72224-6 Silicone Cap Pgk of 10 3-99-123/10 Additional service parts on following page. Harman® • P42i Owner’s Manual • 2023 -___ • 03/23 8742-900A...
- Page 24 Room/Return Sensor Extension 14 FT 3-20-584023 Smoke Shield w/hardware 1-00-574430 Touch Up Paint. Black 12 oz Can 3-42-19905 Wireless Room Sensor 3-20-777556 Power Cord - 14’ 3-20-584024 Wiring Harness 3-20-08888 Harman® • P42i Owner’s Manual • 2023 -___ • 03/23 8742-900A...
-
Page 25: Limited Lifetime Warranty
Firebox and heat exchanger, FlexBurn® System 3 years Lifetime (engine, inner cover, access cover and fireback) None 1 Year All purchased replacement parts Page 1 of 2 4021-645M 9/21 Harman® • P42i Owner’s Manual • 2023 -___ • 03/23 8742-900A... - Page 26 EXPRESSED WARRANTY SPECIFIED ABOVE FOR THE APPLICABLE PRODUCT. Some States do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Page 2 of 2 4021-645M 9/21 Harman® • P42i Owner’s Manual • 2023 -___ • 03/23 8742-900A...
-
Page 27: Loss Of Power Addendum
IMPORTANT! : UPS or Battery Backup cannot prevent smoke 5. Light pellet gel with a match, and close the door, touch leakage from an improperly maintained unit. Keep the venting the On/Off icon on the home screen. Operation will begin system clean and free from obstructions and maintain all when the fire reaches the proper temperature. gaskets to keep an airtight seal. Harman® • P42i Owner’s Manual • 2023 -___ • 03/23 8742-900A... -
Page 28: Troubleshooting
• Air-fuel ratio is too rich. - Feed rate too high. - Draft too low caused by a gasket leak. Low heat output • Feed rate too low • Draft too low because of gasket leak. • Poor quality or damp pellets • Combination of 1 and 2. Harman® • P42i Owner’s Manual • 2023 -___ • 03/23 8742-900A... - Page 29 Harman® • P42i Owner’s Manual • 2023 -___ • 03/23 8742-900A...
-
Page 30: Contact Information
Printed in U.S.A. Harman® • P42i Owner’s Manual • 2023 -___ • 03/23 8742-900A...
