INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
NOTICE: SAVE THESE INSTRUCTIONS
Model(s):
P43, P61A & P68

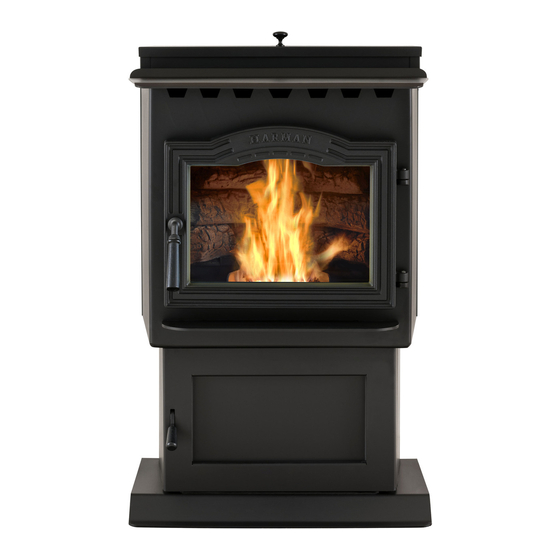

Freestanding Pellet Stove
!
This product and the fuels used to operate this product
(wood), and the products of combustion of such fuels, can
expose you to chemicals including carbon black, which
is known to the State of California to cause cancer, and
carbon monoxide, which is know to the State of California
to cause birth defects or other reproductive harm. For
more information go to: www.P65Warnings.ca.gov
!
Tested and approved for wood pellets and or a mixture of
50-50 wood pellets / shelled corn mixture, burning of any
other type of fuel voids your warranty. When burning pellet/
corn blends more frequent cleanings may be required.
1
Installation Manual
Installation and Appliance Setup
WARNING
CAUTION
Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/18
!
Please read this entire manual before
installation and use of this pellet fuel-
burning room heater.
Failure to follow these instructions could
result in property damage, bodily injury
or even death.
• Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
• Do not overfire - If any external part starts to glow, you
are overfiring. Reduce feed rate. Overfiring will void
your warranty.
• Comply with all minimum clearances to combustibles
as specified. Failure to comply may cause house fire.
!
HOT SURFACES!
Glass and other surfaces are hot
during operation AND cool down.
Hot glass will cause burns.
• Do not touch glass until it is cooled
• NEVER allow children to touch glass
• Keep children away
• CAREFULLY SUPERVISE children in same room as
stove.
• Alert children and adults to hazards of high temperatures.
High temperatures may ignite clothing or other
flammable materials.
• Keep clothing, furniture, draperies and other flammable
materials away.
NOTE
To obtain a French translation of this manual, please
contact your dealer or visit www.harmanstoves.com
Pour obtenir une traduction française de ce manuel, s'il
vous plaît contacter votre revendeur ou visitez www.
harmanstoves.com
WARNING
WARNING
3-90-436168i
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Harman P43
Summary of Contents for Harman P43
- Page 1 50-50 wood pellets / shelled corn mixture, burning of any vous plaît contacter votre revendeur ou visitez www. other type of fuel voids your warranty. When burning pellet/ harmanstoves.com corn blends more frequent cleanings may be required. Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/18 3-90-436168i...
-
Page 2: Table Of Contents
I. Fire Safety ....... 21 J. Inspect Appliance & Components ....21 Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/18 3-90-436168i... -
Page 3: Installation Standard Work Checklist
Comments: Further description of the issues, who is responsible (Installer/Builder/Other Trades, etc.) and corrective action needed __________________________________________________________________________________________ _________________________________________________________________________________________________ _________________________________________________________________________________________________ Comments communicated to party responsible____________________ by ________________________ on __________ (Builder / Gen Contractor) (Installer) (Date) 04/17 Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/18 3-90-436168i... -
Page 4: Product Specific And Important Safety Information
In the absence of local codes you must comply with the ASTM E1509-2004, ULC-S627-00, ULC/ORD-C- 1482-M1990, (UM) 84-HUD The P43, P61A and P68 are Certified to comply with 2015 particulate emission standards. Not approved for sale after May 15, 2020. Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/18 3-90-436168i... -
Page 5: Btu Specifications
This wood heater needs periodic inspection and repair for proper operation. It is against federal regulations to operate this wood heater in a manner inconsistent with operating instructions in this manual. Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/18 3-90-436168i... -
Page 6: Getting Started
• Avoid outside wall Windward Leeward Multi-level Roofs Recommended: NOT recommended: Outside Air Intake Outside Air Intake on windward side on leeward side Figure 2.1 Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/18 3-90-436168i... -
Page 7: Tools And Supplies Needed
Do NOT use makeshift compromises when installing this could impair safe operation. DO NOT install damaged, appliance, serious consequences may result. incomplete or substitute components. Keep appliance dry. Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/18 3-90-436168i... -
Page 8: Appliance Dimension Diagram
P61A Freestanding Pellet Stove Outside Outside Air Intake Air Intake 5 1/8" 5 1/8" 22" 23 1/2" 20 3/4" P68 Freestanding Pellet Stove Outside Air Intake 5 1/4" 23-1/2” Figure 3.1 Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/18 3-90-436168i... -
Page 9: Clearances To Combustibles
14" (355mm) *16" (406mm) 20" (508mm) 36" (914mm) 36" (914mm) 9"(228mm) 9"(228mm)- 13"(330mm) 9"(228mm)With Side Shields 9" (228mm) With or Without Side Shields 13"(330mm) Without Side Shields Figure 3.2 Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/18 3-90-436168i... -
Page 10: Floor Protection
The appliance must be properly grounded to the frame of the mobile home using a minimum of 8 AWG copper solid K Front 6” 152mm or stranded, insulated or bare wire or equivalent. Rear 6” 152mm Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/18 3-90-436168i... -
Page 11: Termination Location And Vent Information
Keep combustible materials (such as grass, leaves, etc.) at least 3 feet away from the flue outlet on the outside of the building. 3 Ft. to Combustibles Figure 4.2 Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/18 3-90-436168i... - Page 12 Be sure to design the venting so that it can be easily cleaned. Figure 4.4 Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/18 3-90-436168i...
- Page 13 The pipe or liner inside the chimney should be 4" diameter. In this method a cap should also be installed on the chimney to keep out rain. Figure 4.6 Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/18 3-90-436168i...
- Page 14 Seal pipe joints with silicone or aluminum tape in addition to the sealing system used by the manufacturer. Do not place joints within wall pass-through. min. wall to outlet 12" Figure 4.9 Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/18 3-90-436168i...
-
Page 15: Chimney Diagram
G. The clearance to an inside corner is 12". Canada) H. A vent must not be installed within 3 feet (90 cm) above a gas meter/regulator assembly when measured from the horizontal center-line of the regulator. Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/18 3-90-436168i... -
Page 16: Venting & Use Of Elbows
= 2 EVL 90° Elbow (1 x 5 EVL) = 5 EVL It is best to have your venting system designed by a Harman 90° Tee (1 x 5 EVL) = 5 EVL authorized dealer before you finalize your purchase of an appliance. - Page 17 • Do Not Install a Flue Damper In The Exhaust Venting System of This Appliance. • DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE. • NOTE: Simpson DuraVent PelletVent Pro Harman®Adapter Part #3PVP-ADHB and PelletVent Pro Harman®Adapter Increaser Part #3PVPX4ADHB are highly recommended to be installed on the starter collar to insure a proper pipe connection to the unit.
-
Page 18: Outside Air
Use silicone to create an effective vapor barrier at the location where the chimney or outside air ducting passes through to the exterior of the structure. Figure 4.14 Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/18 3-90-436168i... -
Page 19: Locating Your Appliance And Chimney
_______. If the second reading is more than .05” lower than the first reading, check for possible restrictions or the need for outside air. For more information on the draft test procedure, refer to Page 21 Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/18 3-90-436168i... -
Page 20: Avoiding Smoke & Odors
Where passing through an exterior wall or roof, be sure to use the appropriate pass-through device providing an adequate vapor barrier. Venting manufacturers generally provide these pass-through devices. Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/18 3-90-436168i... -
Page 21: Fire Safety
MINIMUM LOW BURN RATE THAT MUST NOT BE ALTERED. IT IS AGAINST FEDERAL REGULATIONS TO ALTER THIS SETTING OR OTHERWISE OPERATE THIS WOOD HEATER IN A MANNER INCONSISTENT WITH OPERATING INSTRUCTIONS IN THIS MANUAL. Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/18 3-90-436168i... -
Page 22: Appliance Setup
If needed, install the (2) 5/16-18 X 3/4” leveling bolts located in the hardware kit. Figure 5.1. C. Firebrick The P43 Pellet Stove has a single (1) firebrick that gets 1 Firebrick P43 Pellet Stove installed horizontally on the angle bracket above the burnpot. -
Page 23: Room Sensor
(A surge protector is recommended to protect the circuit board.) Also be sure that the polarity of the outlet that the stove is plugged into is correct. Figure 5.4 Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/18 3-90-436168i... -
Page 24: Reference Materials
THE STOVE FOR HIGHER HEAT OUTPUT MAY CAUSE DAMAGE TO THE STOVE AND COULD RESULT IN A HOUSE FIRE. USE ONLY APPROVED FUELS AND FOLLOW ONLY THESE OPERATION GUIDELINES. Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/18 3-90-436168i... -
Page 25: Wiring Diagram
B. Wiring Diagram Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/18 3-90-436168i... - Page 26 352 Mountain House Road, Halifax, PA 17032 www.harmanstoves.com Please contact your Harman dealer with any questions or concerns. ® For the location of your nearest Harman dealer, ® please visit www.harmanstoves.com. Printed in U.S.A Harman® • P-Series Installation Manual_R18 • 2014 - ___ • 06/18 3-90-436168i...
