Installation & Operating Manual

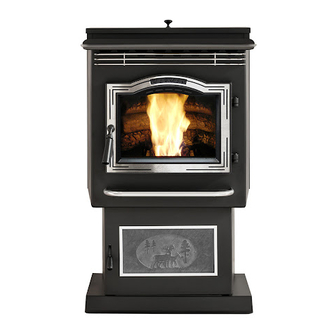

P61-2 Pellet Stove Owners Manual
"Ce manuel est disponible en Français sur demande"
r7
SAFETY NOTICE
PlEASE rEAd ThIS ENTIrE MANuAl bEFOrE YOu INSTAll ANd uSE YOur NEw rOOM hEATEr. FAIlurE
TO FOllOw INSTruCTIONS MAY rESulT IN PrOPErTY dAMAgE, bOdIlY INjurY, Or EvEN dEATh.
FOr uSE IN ThE u.S. ANd CANAdA. SuITAblE FOr INSTAllATION IN MObIlE hOMES
IF ThIS hArMAN STOvE IS NOT PrOPErlY INSTAllEd, A hOuSE FIrE MAY rESulT. FOr YOur SAFETY, FOl-
lOw INSTAllATION dIrECTIONS.
CONTACT lOCAl buIldINg Or FIrE OFFICIAlS AbOuT rESTrICTIONS ANd INSTAllATION INSPECTION
rEQuIrEMENTS IN YOur ArEA.
CONTACT YOur lOCAl AuThOrITY (SuCh AS MuNICIPAl buIldINg dEPArTMENT, FIrE dEPArTMENT, FIrE
PrEvENTION burEAu, ETC.) TO dETErMINE ThE NEEd FOr A PErMIT.
CETTE guIdE d'uTIlISATION EST dISPONIblE EN FrANCAIS. ChEz vOTrE CONCESSIONNAIrE dE hArMAN
hOME hEATINg.
SAvE ThESE INSTruCTIONS.
Item# 3-90-05810
Advertisement
Table of Contents
Related Manuals for Harman P61-2
Summary of Contents for Harman P61-2
- Page 1 TO FOllOw INSTruCTIONS MAY rESulT IN PrOPErTY dAMAgE, bOdIlY INjurY, Or EvEN dEATh. FOr uSE IN ThE u.S. ANd CANAdA. SuITAblE FOr INSTAllATION IN MObIlE hOMES IF ThIS hArMAN STOvE IS NOT PrOPErlY INSTAllEd, A hOuSE FIrE MAY rESulT. FOr YOur SAFETY, FOl- lOw INSTAllATION dIrECTIONS.
- Page 2 Fig. 1...
-
Page 3: Table Of Contents
Please read this entire manual before you install and use your new room heater. Failure to follow instructions may result in property damage, bodily injury, or even death. SuITAblE FOr MObIlE hOME INSTAllATIONS. SAVE THESE INSTRUCTIONS harman home heating 352 Mountain House Road Halifax, PA 17032... -
Page 4: Assembly & Installation
Assembly and Installation unpacking The P61 is bolted to the skid to prevent move- ment during shipping. To free the stove from the skid you must re- move the hold-down bolts in the rear of the pedestal base. removing or Installing rear cover panels To remove the rear cover panels, loosen the screws slightly and slide the covers outward as shown in the illustration. - Page 5 Clothing and other flammable materials should not be placed on or near this unit. 18" Installation and repair of this Harman Stove should be done by a qualified service person. The appliance should be inspected before use and at least annually by a qualified service person.
-
Page 6: Venting
venting requirements for Terminating the venting WARNING: Venting terminals must not be re- must be a minimum of 6 feet. cessed into a wall or siding. J. The clearance to a non-mechanical air supply NOTE: Only pellet vent pipe wall pass-throughs inlet to the building or the combustion air inlet to any and fire stops should be used when venting through other appliance must be a minimum of 48”. - Page 7 Fig. 7 1-10-08542 When installing in a house with a Heat Reclaim- The Harman Direct Vent Wall ing Ventilation System (HRV) be sure the system is Passthrough allows the proper balanced and is not creating a negative pressure in protection of the wall and brings the house.
- Page 8 Venting venting #1 Preferred method This method provides excellent venting for normal operation and allows the stove to be installed closest to the wall. Two inches from the wall is safe; however, four inches allows better access to remove the rear panel.
- Page 9 Venting venting #4 Installing into an existing chimney This method provides excellent venting for normal operation. This method also provides natural draft in the event of a power failure. If the chimney condition is questionable you may want to install a liner as in method #7.
- Page 10 Venting venting #6 Installing into an existing fireplace chimney This method provides excellent venting for normal operation. This method also provides natural draft in the event of a power failure. Some places in the US and Canada it is required that the vent pipe extend all the way to the top of the chimney.
- Page 11 venting Minimum flue vent configuration It is recommended that outside air be installed with this venting configuration. (See Page 9 for corner installation clearances) Fig. 14 Fig. 15 #8 Installing through the ceiling vent Through the ceiling vent, follow the vent manufacturers recommendations when using wall and ceiling pass throughs.
-
Page 12: Operation
P61-2 MANuAl STArT uP Operation Starting First Fire Be sure the power cord is plugged into a 120 volt receptacle. This can be verified by the red power light on the control panel. be sure there is no fuel or other combustibles in the ash pan prior to lighting. - Page 13 P61-2 MANuAl IgNITION/OPErATION when to use "Stove Temp Mode" In "Stove Temp Mode" the Stove Temp Dial deter- mines the temperature of the stove. Heat output and fuel consumption will remain constant. This makes it possible to tell how long a hopper full of pellets will last.
-
Page 14: Esp Control
P61-2 ESP CONTrOl Feed adjuster Power Light Sets the maximum Indicates power to the feed rate control. Test Runs all motors at full speed for two minutes to check Status Light operation. After two Will be lit in either stove... - Page 15 room Sensor and rear Shield Installation rear Shields room Sensor Installation 5/16" Hex Head 5/16" Hex Screws (2 on Head Screws each side) (2 on each side) Fig. 22 Fig. 23 The room sensor is a small temperature sensor The rear insulated shields are split in the middle on the end of a 60"...
-
Page 16: Maintenance
Maintenance removing Ashes: When approximately 1 ton of pellets has been burned, it will be necessary to empty the ash pan. Ashes should be placed in a metal contain- er with a tight fitting lid. The closed container of ashes should be placed on a noncombus- tible floor or on the ground, well away from all combustible materials, pending final disposal. If ashes are disposed of by burial in soil or other- wise locally dispersed, they should be retained in the closed container until all cinders have... - Page 17 Maintenance 7. Open the burn pot slide as shown, clean with vacuum and close. 8. Clean the heat exchanger with the scraper as shown in Fig. 25. 9. Brush or scrape the inside of the stove to remove fly ash. 10.
-
Page 18: Trouble Shooting
Trouble-Shooting SMOKE SMEll FEEdEr dOES NOT FEEd Seal the vent pipe joints and connection to stove 1. No pellets in hopper. with high temp silicone. 2. Feed motor will not run until ESP senses 165 FIrE hAS gONE OuT deg. F. Maybe you did not put enough pellets in the burn pot before lighting the fire. - Page 19 P61-2 Feeder...
-
Page 20: Specifications
P61-2 Specifications Specifications 23.5" 9" 5.250" weight 249 lbs. blower 135 cfm Feed rate .75 to 7.5 lbs. per hr. hopper Capacity 72 lbs. Fuel wood Pellets Flue Size 3 inch Outside Air Size 2 3/8 in. Inside diameter On-board Fuse... - Page 21 P61-2 wiring diagram...
- Page 22 door Options Door Frame Ash Lip Trim Ash Door Tile Frame Brushed Stainless Cut- out Tile Plate Optional Trim decorative Tile The door trim kit includes the door frame, the Decorative tile is available in several designs. ash lip trim, and the ash door tile frame. Available The tile installs behind the trim on the ash door.
- Page 23 OPTIONS hopper Extension Side heat Shields The hopper extension allows you to put more Side heat shields are available to reduce the pellet fuel in the hopper and extends the burn time clearance to combustible materials. on one load of pellets. The hopper extension adds 60 pounds to the existing 72 pound hopper capacity, allowing you to load 132 pounds of pellets at one time.
-
Page 24: Wiring Diagram
P61 Parts list description Part Number hopper gasket(6 ft.) 0-88-00248 Ash Pan Assembly 1-10-05800 burn Pot weldment 1-10-05802 right rear Shield 2-00-06468-1P left rear Shield 2-00-06468-2P Arrow Scraper 2-00-773850 Flame guide 3-00-08534 wiring harness Assembly 3-20-08727 Thermister Probe 3-20-00744(blk wire) 3-20-00844(red wire) room Sensor 3-20-00906 Circuit board... -
Page 25: Warranty
MERCHANTABILITY, OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE. No employee, agent, dealer, or other person is authorized to give any warranty on behalf of Harman Home Heating. This warranty does not apply if the product has been altered in any way after leaving the factory. Harman Home Heating and its agents assume no liability for “resultant damages of any kind”...
