Using the UA-1X

This chapter explains the various ways the UA-1X can be connected, and introduces
some of its applications.
* To prevent malfunction and/or damage to speakers or other devices, always turn down the
volume, and turn off the power of all devices before disconnecting the USB cable.

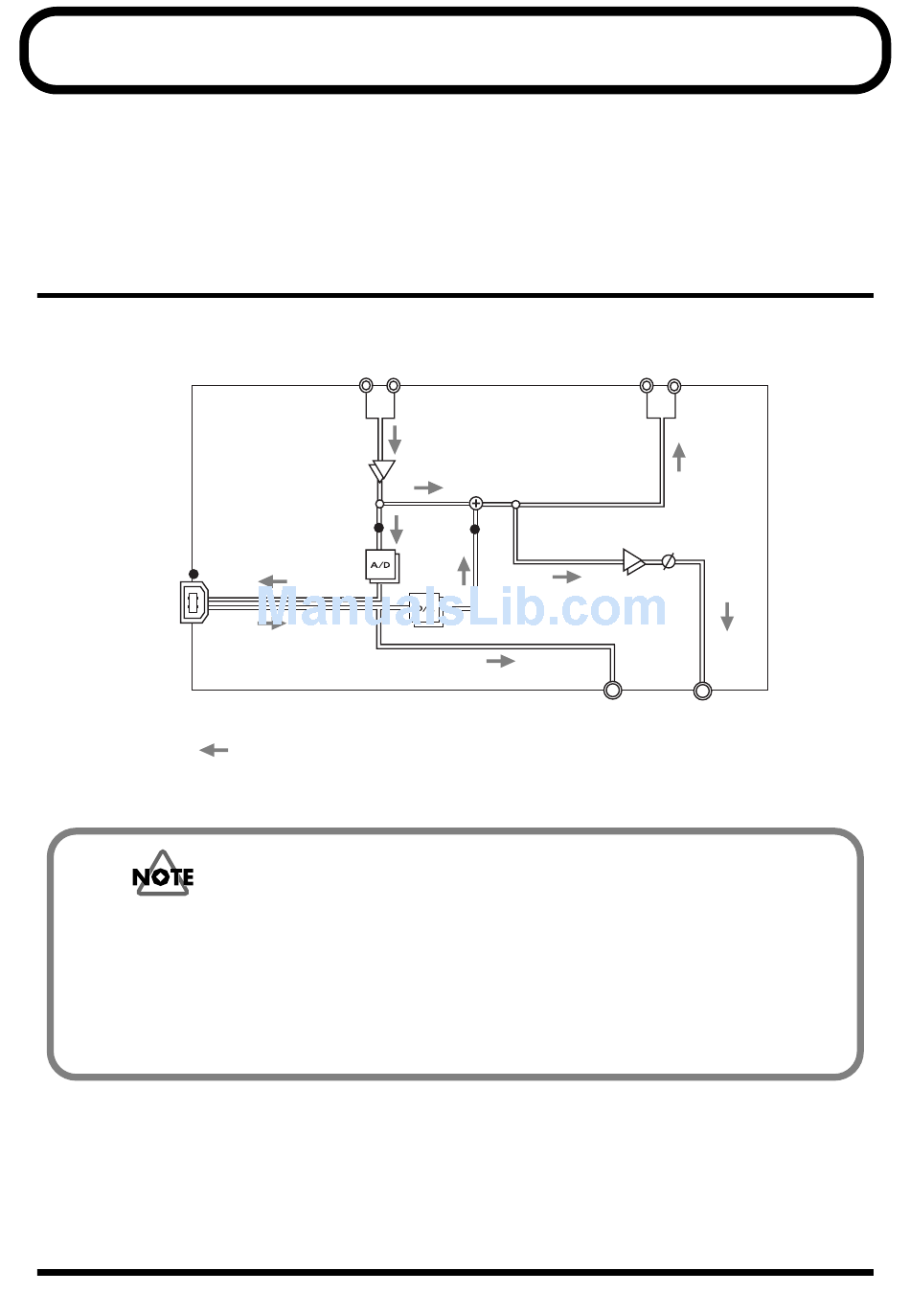

UA-1X Signal Flow Diagram

fig.diagram.e
UA-1X
LED
USB
* The same jack serves as both the headphone jack and digital output jack.
As soon as you connect the UA-1X to your computer, sound will no longer
be output from the speakers of your computer.
• Connect an external monitor system or headphones to the UA-1X.
• If you want sound to be output from the speakers of your computer,
disconnect the UA-1X from your computer.
AUDIO INPUT
R L
INPUT
SELECT
LED
Signal flow
AUDIO OUTPUT
LED
OPTICAL
OUT
R L
PHONES
VOLUME
PHONES
9
